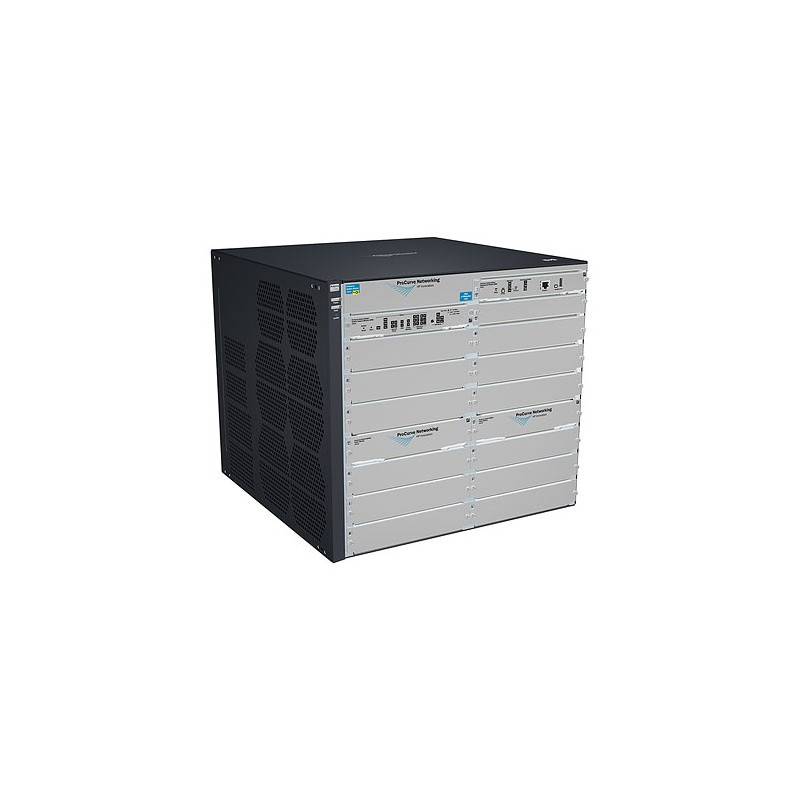

Hewlett Packard Enterprise 8212-92G-PoE
8212-92G-PoE - Gigabit Ethernet, 3.7 µs, 10-GbE, 2x SFP, 993.6 Gbps, 1.1 Tbps, 46610, Black
Overview
The HP 8200 zl Switch Series offers high performance, scalability, and a wide range of features in a high-availability platform that dramatically reduces complexity and provides reduced cost of ownership. As part of a unified wired and wireless network infrastructure solution, the 8200 zl Switch Series provides platform technology, system software, system management, application integration, wired and wireless integration, network security, and support that are common across HP modular and fixed-port switches. Together, they deliver an agile, cost-effective, high-availability network solution. With key technologies to provide solution longevity, the 8200 zl Switch Series is built to deliver long-term investment protection without added complexity for network core, aggregation, and high-availability access layer deployments. It provides these capabilities while bringing to market the industry's first highly available switch with a lifetime warranty.
The HP 8200 zl Switch Series offers high performance, scalability, and a wide range of features in a high-availability platform that dramatically reduces complexity and provides reduced cost of ownership. As part of a unified wired and wireless network infrastructure solution, the 8200 zl Switch Series provides platform technology, system software, system management, application integration, wired and wireless integration, network security, and support that are common across HP modular and fixed-port switches. Together, they deliver an agile, cost-effective, high-availability network solution. With key technologies to provide solution longevity, the 8200 zl Switch Series is built to deliver long-term investment protection without added complexity for network core, aggregation, and high-availability access layer deployments. It provides these capabilities while bringing to market the industry's first highly available switch with a lifetime warranty.
Data sheet
- 10G support
- Yes
- AC input frequency
- 50/60 Hz
- AC input voltage
- 100-127 V
- Auto MDI/MDI-X
- Yes
- Basic switching RJ-45 Ethernet ports quantity
- 96
- Colour of product
- Black
- Connectivity technology
- Wired
- Depth
- 475 mm
- Dimensions (WxDxH)
- 475 x 444.5 x 396.2 mm
- Electromagnetic compatibility
- FCC, ICE, VCCI, EN
- Energy Star certified
- No
- Ethernet interface type
- Fast Ethernet,Gigabit Ethernet
- Fiber optic connector
- XFP
- Form factor
- 19U
- Heat dissipation
- 4900 BTU/h
- Height
- 392.6 mm
- I/O ports
- 92 RJ-45 autosensing 10/100/1000 PoE+ ports(IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+), Media Type: Auto-MDIX, Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only; 2 SFP+ 10-GbE por
- Input voltage
- 100-127/200-240 VAC
- Latency
- 3.7
- MAC address table
- 64000 entries
- Management platform
- HP PCM+; HP PCM (included); command-line interface; Web browser; configuration menu; out-of-band management (serial RS-232C)
- Management protocols
- ЫТЬЗ
- Maximum data transfer rate
- 96 Gbit/s
- Mounting
- Mounts in an EIA-standard 19 in telco rack or equipment cabinet (hardware included); horizontal surface mounting only. An optional 4-post cabinet rail is available (see ordering guide).
- Networking standards
- IEEE 802.1D,IEEE 802.1p,IEEE 802.1Q,IEEE 802.1s,IEEE 802.1v,IEEE 802.1w,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3x
- Noise level
- 63 dB
- Operating altitude
- 914.4 - 2133 m
- Operating relative humidity (H-H)
- 15 - 95 %
- Operating relative humidity range
- 15 to 95 @ 131°F
- Operating temperature (T-T)
- 8 - 35 °C
- Operating temperature range (T-T)
- 0 - 45 °C
- Power requirements
- Chassis ships without power supplies. Four power supply slots are available; three different power supplies are available. See power supply products for additional specifications.; Power supplies must be ordered separately. A minimum of two J8712A, J8713A
- Power supply type
- 2 x J9306A
- Safety
- CSA, UL, IEC, EN
- Source data-sheet
- Icecat.biz
- Stackable
- No
- Storage relative humidity range
- 15 to 95 @ 149°F
- Storage temperature range (T-T)
- -40 - 70 °C
- Supported data transfer rates
- x1 115.2 Kbits/sec., x2 230.4 Kbits/sec., x4 460.9 Kbits/sec
- Supported network protocols
- RFC 1591 DNS (client); HTML and telnet management; IEEE 802.1ad Q-in-Q; IEEE 802.1D MAC Bridges; IEEE 802.1p Priority; IEEE 802.1Q VLANs; IEEE 802.1s Multiple Spanning Trees; IEEE 802.1v VLAN classification by Protocol and Port; IEEE 802.1w Rapid Reconfig
- Switch layer
- L3+
- Switching capacity
- 993.6 Gbit/s
- Throughput
- 739 Mpps
- Weight
- 46610 g
- Width
- 444.5 mm
Specific References
- EAN13
- 0885631941836
