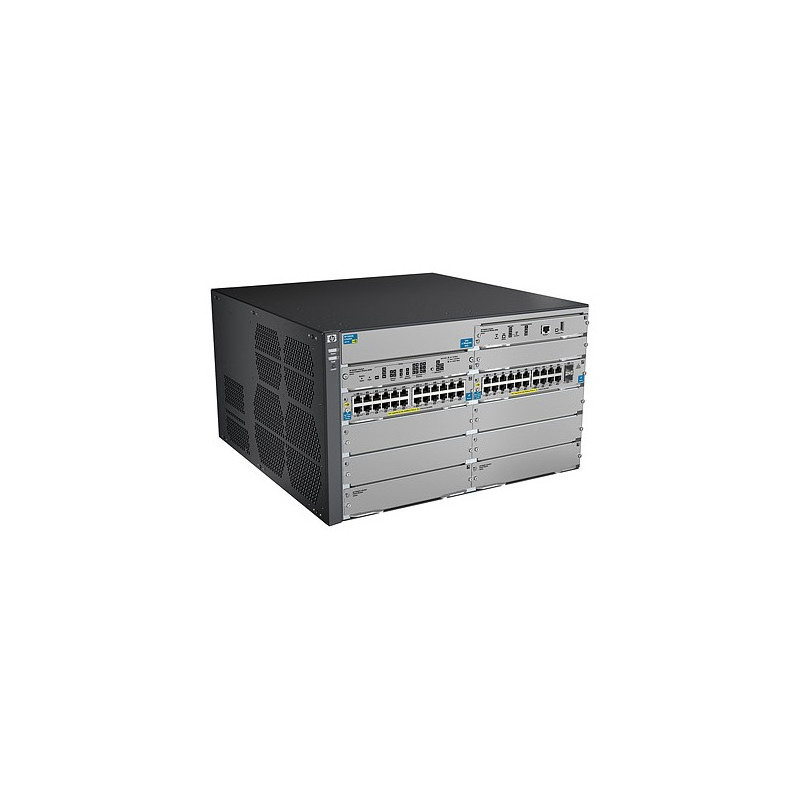

Hewlett Packard Enterprise 8206-44G-PoE+-2XG v2 zl
8206-44G-PoE+-2XG v2 zl Switch w/ Premium Software
The HP 8200 zl Switch Series offers high performance, scalability, and a wide range of features in a high-availability platform that dramatically reduces complexity and provides reduced cost of ownership. As part of a unified wired and wireless network infrastructure solution, the 8200 zl switch series provides platform technology, system software, system management, application integration, wired and wireless integration, network security, and support that are common across HP modular and fixed-port switches.
Together, they deliver an agile, cost-effective, high-availability network solution. With key technologies to provide solution longevity, the 8200 zl switch series is built to deliver long-term investment protection without added complexity for network core, aggregation, and high-availability access layer deployments.
It provides these capabilities while bringing to market the industry's first highly available switch with a lifetime warranty.
Software-defined networking
OpenFlow: is a key technology that enables software-defined networking by allowing the separation of data (packet forwarding) and control (routing decision) paths
Quality of Service (QoS)
Advanced classifier-based QoS: classifies traffic using multiple match criteria based on Layer 2, 3, and 4 information; applies QoS policies such as setting priority level and rate limit to selected traffic on a per-port or per-VLAN basis
Layer 4 prioritization: enables prioritization based on TCP/UDP port numbers
Traffic prioritization: allows real-time traffic classification into eight priority levels mapped to eight queues
Bandwidth shaping: Port-based rate limiting: provides per-port ingress-/egress-enforced increased bandwidth. Classifier-based rate limiting: uses an access control list (ACL) to enforce increased bandwidth for ingress traffic on each port. Reduced bandwidth: provides per-port, per-queue egress-based reduced bandwidth.
Class of Service (CoS): sets the IEEE 802.1p priority tag based on IP address, IP Type of Service (ToS), Layer 3 protocol, TCP/UDP port number, source port, and DiffServ
HP AllianceOne integration
HP AllianceONE Services zl Module: allows you to embed applications directly into the network, either distributed throughout the network at the network edge or centralized in the core or distribution layer; for more information about the HP AllianceONE solution, visit the HP website
Management
Remote intelligent mirroring: mirrors selected ingress/egress traffic based on ACL, port, MAC address, or VLAN to a local or remote HP 8200 zl, 6600, 6200 yl, 5400 zl, or 3500 Switch anywhere on the network
RMON, XRMON, and sFlow v5: provide advanced monitoring and reporting capabilities for statistics, history, alarms, and events
IEEE 802.1AB Link Layer Discovery Protocol (LLDP): advertises and receives management information from adjacent devices on a network, facilitating easy mapping by network management applications
Uni-Directional Link Detection (UDLD): monitors a cable between two switches and shuts down the ports on both ends if the cable is broken, turning the bidirectional link into a unidirectional one; this prevents network problems such as loops
HP unified core-to-edge device/network management tools: provide HP networking portfolio-common device-level tools (CLI, Web GUI, and Menu) plus seamless integration into HP PCM+/Identity Driven Manager (IDM) network management deployments
Together, they deliver an agile, cost-effective, high-availability network solution. With key technologies to provide solution longevity, the 8200 zl switch series is built to deliver long-term investment protection without added complexity for network core, aggregation, and high-availability access layer deployments.
It provides these capabilities while bringing to market the industry's first highly available switch with a lifetime warranty.
Software-defined networking
OpenFlow: is a key technology that enables software-defined networking by allowing the separation of data (packet forwarding) and control (routing decision) paths
Quality of Service (QoS)
Advanced classifier-based QoS: classifies traffic using multiple match criteria based on Layer 2, 3, and 4 information; applies QoS policies such as setting priority level and rate limit to selected traffic on a per-port or per-VLAN basis
Layer 4 prioritization: enables prioritization based on TCP/UDP port numbers
Traffic prioritization: allows real-time traffic classification into eight priority levels mapped to eight queues
Bandwidth shaping: Port-based rate limiting: provides per-port ingress-/egress-enforced increased bandwidth. Classifier-based rate limiting: uses an access control list (ACL) to enforce increased bandwidth for ingress traffic on each port. Reduced bandwidth: provides per-port, per-queue egress-based reduced bandwidth.
Class of Service (CoS): sets the IEEE 802.1p priority tag based on IP address, IP Type of Service (ToS), Layer 3 protocol, TCP/UDP port number, source port, and DiffServ
HP AllianceOne integration
HP AllianceONE Services zl Module: allows you to embed applications directly into the network, either distributed throughout the network at the network edge or centralized in the core or distribution layer; for more information about the HP AllianceONE solution, visit the HP website
Management
Remote intelligent mirroring: mirrors selected ingress/egress traffic based on ACL, port, MAC address, or VLAN to a local or remote HP 8200 zl, 6600, 6200 yl, 5400 zl, or 3500 Switch anywhere on the network
RMON, XRMON, and sFlow v5: provide advanced monitoring and reporting capabilities for statistics, history, alarms, and events
IEEE 802.1AB Link Layer Discovery Protocol (LLDP): advertises and receives management information from adjacent devices on a network, facilitating easy mapping by network management applications
Uni-Directional Link Detection (UDLD): monitors a cable between two switches and shuts down the ports on both ends if the cable is broken, turning the bidirectional link into a unidirectional one; this prevents network problems such as loops
HP unified core-to-edge device/network management tools: provide HP networking portfolio-common device-level tools (CLI, Web GUI, and Menu) plus seamless integration into HP PCM+/Identity Driven Manager (IDM) network management deployments
Data sheet
- 10G support
- Yes
- AC input frequency
- 50/60 Hz
- AC input voltage
- 100-240 V
- Auto MDI/MDI-X
- Yes
- Basic switching RJ-45 Ethernet ports quantity
- 44
- Basic switching RJ-45 Ethernet ports type
- Gigabit Ethernet (10/100/1000)
- Colour of product
- Black,Grey
- Connectivity technology
- Wired
- Depth
- 444.2 mm
- DHCP client
- Yes
- Dimensions (WxDxH)
- 442.5 x 444.2 x 262.9 mm
- Electromagnetic compatibility
- FCC, ICE, VCCI, EN
- Form factor
- 6U
- Heat dissipation
- 2450 BTU/h
- Height
- 262.9 mm
- I/O ports
- 44 RJ-45 autosensing 10/100/1000 PoE+ ports(IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+), Media Type: Auto-MDIX, Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only; 2 SFP+ 10-GbE por
- Input voltage
- 100-127/200-240 VAC
- Latency
- 3.7
- Latency (10 Gbps)
- 2.1 µs
- MAC address table
- 64000 entries
- Management platform
- HP PCM+; HP PCM (included); command-line interface; Web browser; configuration menu; out-of-band management (serial RS-232C)
- Management protocols
- ЫТЬЗ
- Maximum data transfer rate
- 96 Gbit/s
- Mounting
- Mounts in an EIA-standard 19 in telco rack/equipment cabinet (hardware included); horizontal surface mounting only. An optional 4-post cabinet rail is available (see ordering guide).
- Networking standards
- IEEE 802.3,IEEE 802.3ab,IEEE 802.3at,IEEE 802.3u
- Noise level
- 97.4 dB
- Operating altitude
- 914.4 - 2133 m
- Operating relative humidity (H-H)
- 15 - 95 %
- Operating relative humidity range
- 15 to 95 @ 131°F
- Operating temperature (T-T)
- 8 - 35 °C
- Operating temperature range (T-T)
- 0 - 45 °C
- Power requirements
- Chassis ships without power supplies. Two power supply slots are available; three different power supplies are available. See power supply products for additional specifications.; Power supplies must be ordered separately.
A minimum of one J8712A, J8713A, - Power supply type
- 1 x J9306A
- Safety
- CSA, UL, IEC, EN
- Source data-sheet
- Icecat.biz
- Stackable
- No
- Storage relative humidity (H-H)
- 15 - 95 %
- Storage relative humidity range
- 15 to 95 @ 149°F
- Storage temperature (T-T)
- 8 - 85 °C
- Storage temperature range (T-T)
- -40 - 70 °C
- Supported data transfer rates
- x1 115.2 Kbits/sec., x2 230.4 Kbits/sec., x4 460.9 Kbits/sec
- Supported network protocols
- RFC 1591 DNS (client); HTML and telnet management; IEEE 802.1ad Q-in-Q; IEEE 802.1D MAC Bridges; IEEE 802.1p Priority; IEEE 802.1Q VLANs; IEEE 802.1s Multiple Spanning Trees; IEEE 802.1v VLAN classification by Protocol and Port; IEEE 802.1w Rapid Reconfig
- Switch layer
- L7
- Switching capacity
- 496.8 Gbit/s
- Throughput
- 369.6 Mpps
- Weight
- 27890 g
- Width
- 442.5 mm
Specific References
- EAN13
- 0885631941669
