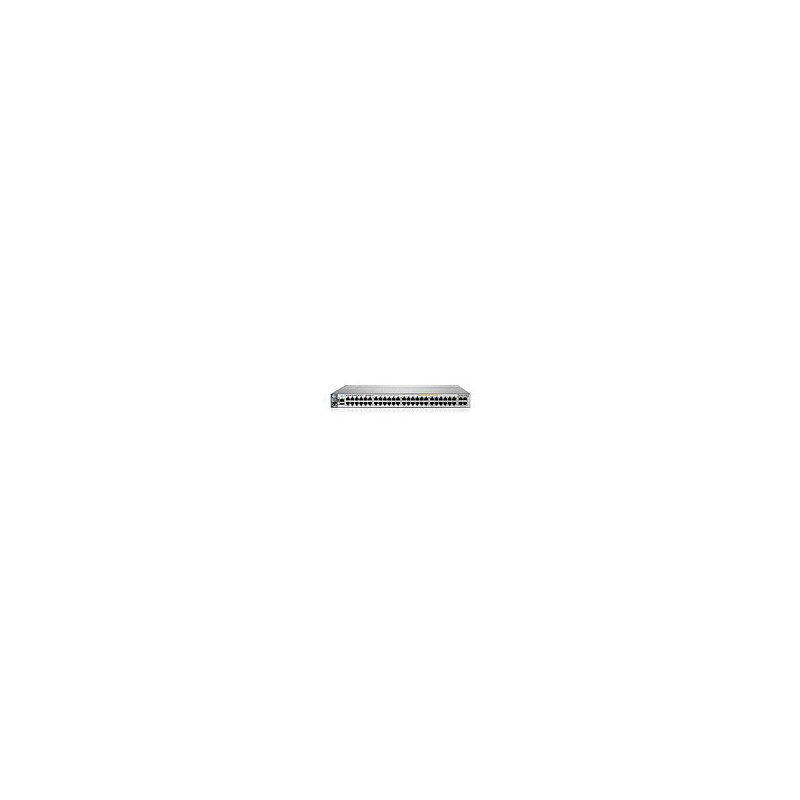

HP 3800-48G-PoE+-4XG

Hewlett Packard Enterprise 3800-48G-PoE+-4XG

Managed, 48 x RJ-45, 10/100/1000 Mbps, 4 x RJ-45 10GbE, 1 x RJ-45 Console, HP ProVision ASIC/ARM 350 MHz, Freescale PowerPC 1200 MHz, 4GB Flash, Buffer 36 MB, 2GB SDRAM, RADIUS/TACACS+, SSHv2, SSL, 48.26 cm (19 ") , PoE, 186W, 7.82kg
Out of Stock
Reference: J9588A

Require Project Pricing?

Click here to email your parts list and we will send you a quote
The HP 3800 Switch Series is a family of fully managed Gigabit Ethernet switches. There are a total of nine switch models—a 24-port switch, a 48-port switch, a 24-port PoE+ switch, a 48-port PoE+ switch

with either SFP+ or 10GBASE-T uplinks, and a 24-portSFP switch with 2 SFP+ uplinks. HP 3800 Series Switches utilize the latest HP ProVision ASIC technology and combine the latest advances in hardware engineering to deliver one of the most resilient and energy-efficient switches in the industry.

The 3800 series implements meshed stacking technology to deliver chassis-like resiliency in a flexible stackable form factor.

Data sheet

10G support
Yes
Authentication method
IEEE 802.1X, RADIUS, MAC
Auto MDI/MDI-X
Yes
Basic switching RJ-45 Ethernet ports quantity
48
Built-in processor
HP ProVision ASIC/ARM 350 Mhz & Freescale PowerPC 1200 MHz
Certification
FCC Class A, VCCI Class A, EN 55022/CISPR 22 Class A
Colour of product
Grey
Connectivity technology
Wired
Copper ethernet cabling technology
1000BASE-T,100BASE-TX,10BASE-T,10GBASE-T
DHCP client
Yes
DHCP server
Yes
Dimensions (WxDxH)
467.4 x 442.7 x 43.2 mm
Drive device, buffer size
36 MB
Ethernet LAN (RJ-45) ports quantity
48
Flash memory
96 MB
Form factor
19"
Heat dissipation
635 BTU/h
Input current
9.4 - 7.8 A
Input voltage
–36 - –72 V
Installed ports
52
Internal memory
≈ 5,000 Cat 8 with plots; ≈ 12,000 Cat 6A with plots
Latency
1.9µs
MAC address table
65500 entries
Management platform
SNMP, Telnet, Web
Management protocols
SNMP v3
Maximum data transfer rate
10000 Gbit/s
Memory type
SDRAM
Mounting
1U
Networking features
Gigabit Ethernet, 10G Ethernet
Number of VLANs
2048
Operating altitude
914.4 - 2133 m
Operating relative humidity (H-H)
15 - 95 %
Operating relative humidity range
15 - 95 %
Operating temperature (T-T)
8 - 35 °C
Operating temperature range (T-T)
0 - 55 °C
Packet buffer memory
36 MB
Ports quantity
52
Power consumption (typical)
130 W
Power over Ethernet (PoE) support
Yes
Power supply
1000 W
Power supply type
HP X312
Safety
EN 60950/IEC 60950, UL 60950, CAN/CSA 22.2 No. 60950, EN 60825
Security algorithms
802.1x RADIUS,SSH,SSL/TLS
Security algorithms supported
802.1x RADIUS, SSH, SSL/TLS
Security features
CLI, GUI, MIB
Source data-sheet
Icecat.biz
Storage relative humidity (H-H)
15 - 90 %
Storage temperature (T-T)
8 - 85 °C
Storage temperature range (T-T)
-40 - 70 °C
Supported data transfer rates
x1 115.2 Kbits/sec., x2 230.4 Kbits/sec., x4 460.9 Kbits/sec
Switch layer
L7
Switching capacity
993.6 Gbps
Weight
7820 g
Wireless LAN connection
No

Specific References

EAN13
0886112028367
