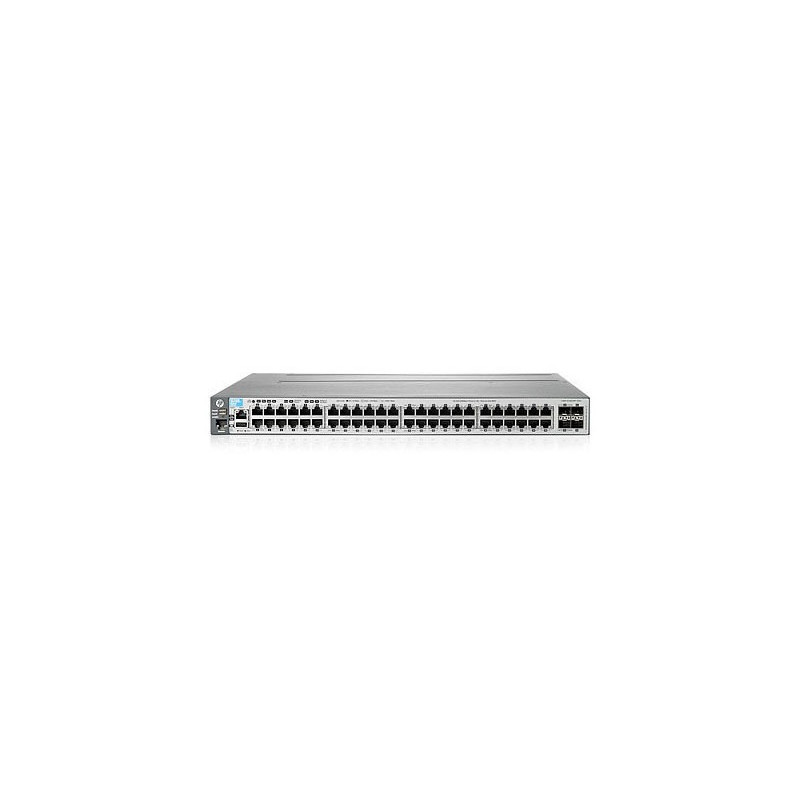

HP ProCurve 3800

Hewlett Packard Enterprise J9576A

3800-48G-4SFP+ Switch
Out of Stock
Reference: J9576A

Require Project Pricing?

Click here to email your parts list and we will send you a quote
The HP E3800 Switch Series is a family of fully-managed Gigabit Ethernet switches. There are a total of 9 switch models – 24 port, 48 port, 24 port PoE+, 48 port PoE+ with either SFP+ or 10GBase-T uplinks and a 24 port SFP with 2 SFP+ uplinks. HP E3800 Series Switches utilizes the latest HP ProVision ASIC technology and combines the latest advances in hardware engineering to deliver one of the most resilient and power efficient switches in the industry. The E3800 implements the HP FlexChassis Mesh technology to deliver chassis-like resiliency in a flexible stackable form-factor.

Data sheet

10G support
Yes
Basic switching RJ-45 Ethernet ports quantity
48
Certification
FCC, VCCI, CISPR 22
Colour of product
Silver
Connectivity technology
Wired
Copper ethernet cabling technology
1000BASE-T,100BASE-TX,10BASE-T
DHCP client
Yes
Dimensions (WxDxH)
467.4 x 442.7 x 43.2 mm
Electromagnetic compatibility
FCC Class A; VCCI Class A; EN 55022/CISPR 22 Class A
Ethernet LAN (RJ-45) ports quantity
48
Flash memory
4092 MB
Heat dissipation
635 BTU/h
Input current
3/6 A
Input voltage
–36 - –72 V
Internal memory
≈ 5,000 Cat 8 with plots; ≈ 12,000 Cat 6A with plots
Latency
1.9 - 2.8
MAC address table
65500 entries
Management platform
PCM+, PCM, SNMP
Maximum data transfer rate
96 Gbit/s
Modulation
PCM
Networking features
Yes
Networking standards
IEEE 802.3,IEEE 802.3ab,IEEE 802.3u
Noise level
57 dB
Operating altitude
914.4 - 2133 m
Operating relative humidity (H-H)
15 - 95 %
Operating temperature (T-T)
8 - 35 °C
Operating temperature range (T-T)
0 - 55 °C
Packet buffer memory
36 MB
Power consumption (typical)
186 W
Power over Ethernet (PoE) support
Yes
Power requirements
100-240 V
Power supply type
AC
Safety
EN, IEC, UL, CAN/CSA
Security algorithms
SSH
Source data-sheet
Icecat.biz
Storage temperature (T-T)
8 - 85 °C
Supported data transfer rates
x1 115.2 Kbits/sec., x2 230.4 Kbits/sec., x4 460.9 Kbits/sec
Switching capacity
993.6 Gbps
Throughput
130900000 Mpps
Weight
7260 g

Specific References

EAN13
0886112028251
