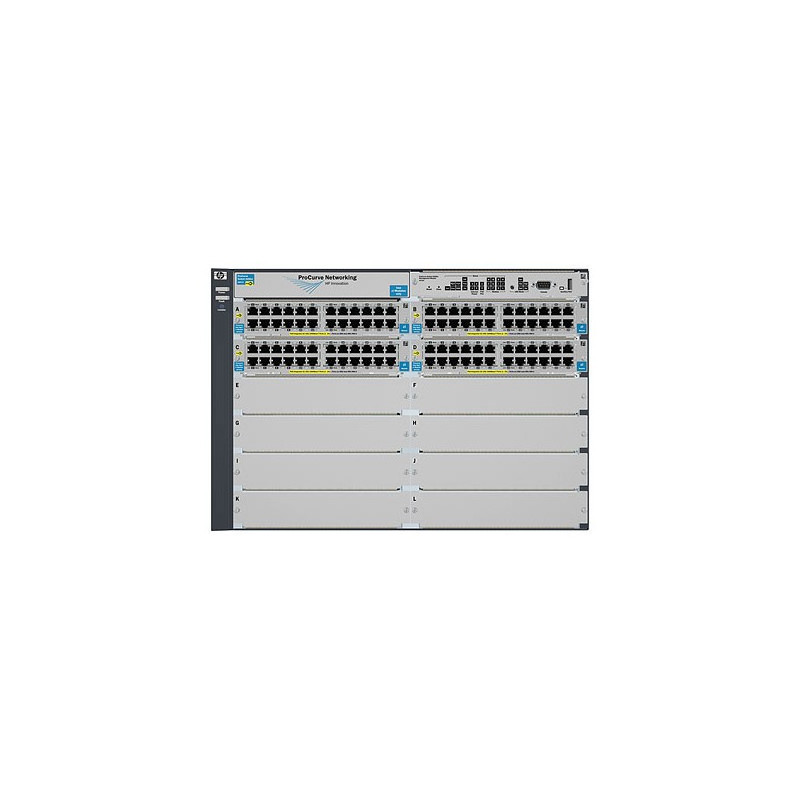

HP 5412-92G-PoE+-4G v2 zl Switch with Premium Software

Hewlett Packard Enterprise E5412-92G-PoE+/4G-SFP v2 zl w/PS

HP 5412-92G-PoE+-4G v2 zl Switch with Premium Software
Out of Stock
Reference: J9540A

Require Project Pricing?

Click here to email your parts list and we will send you a quote
The HP 5400 zl Switch Series consists of advanced intelligent switches in the HP modular chassis product line, which includes 6-slot and 12-slot chassis and associated zl modules and bundles. The foundation for the switch series is a purpose-built, programmable ProVision ASIC that allows the most demanding networking features, such as Quality of Service (QoS) and security, to be implemented in a scalable yet granular fashion. With 10/100, Gigabit Ethernet, and 10 Gigabit Ethernet interfaces; choice of PoE+ and non-PoE; integrated Layer 3 features; and HP AllianceOne solutions, the 5400 zl switch series offers excellent investment protection, flexibility, and scalability, as well as ease of deployment, operation, and maintenance.

Software-defined networking


• OpenFlow: is a key technology that enables software-defined networking by allowing the separation of data (packet forwarding) and control (routing decision) paths



Quality of Service (QoS)


• Advanced classifier-based QoS: classifies traffic using multiple match criteria based on Layer 2, 3, and 4 information; applies QoS policies such as setting priority level and rate limit to selected traffic on a per-port or per-VLAN basis



Management


• Remote intelligent mirroring: mirrors selected ingress/egress traffic based on ACL, port, MAC address, or VLAN to a local or remote HP 8200 zl, 6600, 6200 yl, 5400 zl, or 3500 Switch located anywhere on the network



Connectivity


• IEEE 802.3az Energy Efficient Ethernet: lowers power consumption in periods of low link usage (supported on v2 zl 10/100/1000 and 10/100 modules)



Performance


• High-speed, high-capacity architecture: 1 Tbps crossbar switching fabric provides intra-module and inter-module switching with 585.6 million pps throughput on the purpose-built ProVision ASICs



Resiliency and high availability


• Virtual Router Redundancy Protocol: allows groups of two routers to dynamically back each other up to create highly available routed environments



Layer 2 switching


• VLAN support and tagging: supports the IEEE 802.1Q standard and 2,048 VLANs simultaneously

Data sheet

10G support
Yes
Auto MDI/MDI-X
Yes
Basic switching RJ-45 Ethernet ports quantity
92
Built-in processor
PowerPC 8540
Connectivity technology
Wired
Copper ethernet cabling technology
1000BASE-T,1000BASE-TX,100BASE-TX,10BASE-T
Data link protocols
LLDP
DHCP client
Yes
DHCP server
Yes
Dimensions (WxDxH)
450.9 x 444.5 x 307.3 mm
Electromagnetic compatibility
FCC, VCCI, EN/CISPR
Flash memory
96 MB
Form factor
7U height
Heat dissipation
7400 BTU/h
I/O ports
92 RJ-45 autosensing 10/100/1000 PoE+ ports(IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+), Media Type: Auto-MDIX, Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only; 4 open mini-GBIC
Input voltage
–36 - –72 V
Internal memory
≈ 5,000 Cat 8 with plots; ≈ 12,000 Cat 6A with plots
Latency
3.7µs/2.1µs
MAC address table
64000 entries
Management platform
HP PCM+; HP PCM (included); command-line interface; Web browser; configuration menu; out-of-band management (serial RS-232C)
Management protocols
IGMPv3, SNMPv1/v2c/v3, XRMON
Maximum data transfer rate
96 Gbit/s
Memory type
DDR
MIB support
MLDv1 MIB, MIB II, Bridge MIB, RIPv2 MIB, OSPFv2 MIB, RMONv2 MIB, SMON MIB, Ethernet-Like-MIB, MAU MIB, Entity MIB, VRRP MIB, Ping MIB
Mounting
EIA
Networking features
Yes
Networking standards
IEEE 802.1D,IEEE 802.1p,IEEE 802.1Q,IEEE 802.1s,IEEE 802.1v,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3u,IEEE 802.3x
Noise level
97.4 dB
Number of VLANs
2048
Operating altitude
914.4 - 2133 m
Operating relative humidity (H-H)
15 - 95 %
Operating relative humidity range
15 to 95 @ 131°F
Operating temperature (T-T)
8 - 35 °C
Operating temperature range (T-T)
0 - 55 °C
Power consumption (typical)
312 W
Power requirements
Two J9306A are installed. Two open power supply slots are available; three different power supplies are available. See power supply products for additional specifications.; Heat dissipation does not include heat dissipated by the PoE-powered devices thems
Power supply
1500 W
Power supply type
2 x J9306A
Safety
CSA, UL, IEC, EN
Security algorithms
802.1x RADIUS,SSH,SSL/TLS
Source data-sheet
Icecat.biz
Storage relative humidity (H-H)
15 - 95 %
Storage relative humidity range
15 to 95 @ 149°F
Storage temperature (T-T)
8 - 85 °C
Storage temperature range (T-T)
-40 - 70 °C
Supported data transfer rates
x1 115.2 Kbits/sec., x2 230.4 Kbits/sec., x4 460.9 Kbits/sec
Supported network protocols
IPv6, UDP, TFTP, ICMP, TCP, ARP, Telnet, BOOTP, TFTP, CIDR, SNTP
Switching capacity
758.4 Gbit/s
Switching protocols
RIPv1
Throughput
564.2 mpps Mpps
Weight
33960 g

Specific References

EAN13
8856319414920
