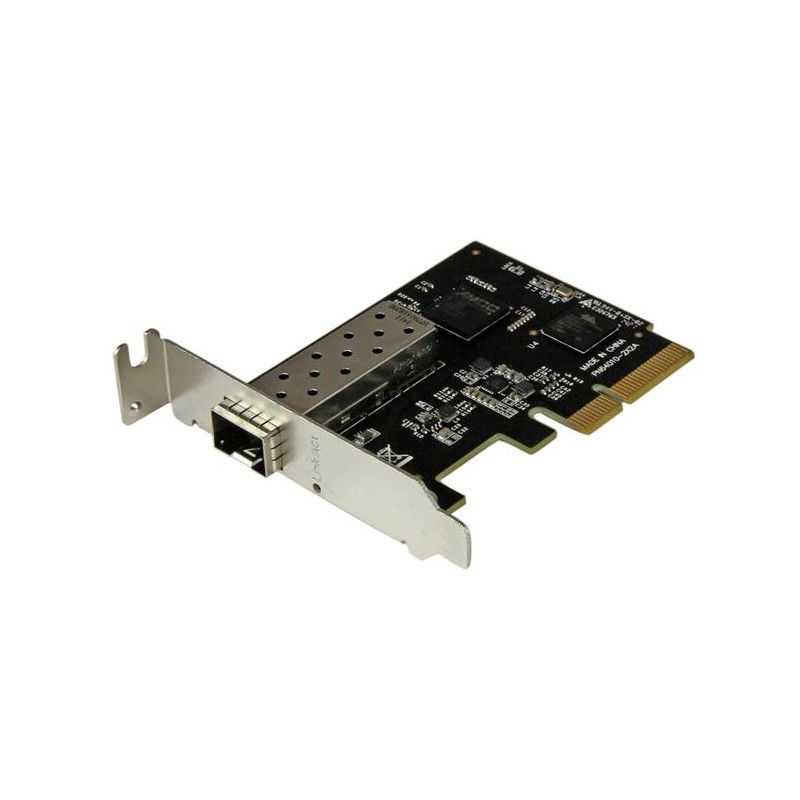

StarTech.com PCI Express 10 Gigabit Ethernet Fiber Network Card w/ Open SFP+ - PCIe x4 10Gb NIC SFP+ Adapter

StarTech.com PCI Express 10 Gigabit Ethernet Fiber Network Card w/ Open SFP+ - PCIe x4 10Gb NIC SFP+ Card - 10GbE Fiber Ethernet Adapter
Out of Stock
Reference: PEX10000SFP
The PEX10000SFP 10 Gigabit Fiber Network Card is a cost-effective solution that delivers fast and reliable 10 Gbps network access at longer distances than copper-based networks. Using the SFP+ transceiver of your choice, you can connect your PCI Express-based server or workstation directly to your 10G fiber optic network.



Faster Networking Speed

With the rising strain on network resources due to large file transfers, multimedia content, and an increase in network users, more bandwidth is often required at various levels of your networking infrastructure. With up to 10 Gbps bandwidth, this fiber NIC lets you transfer more data at faster speeds, and is an ideal low-cost addition to your server or high-powered workstation.



Greater Flexibility & Distance

The PEX10000SFP adapts to your network fiber connection and distance requirements to offer flexible configuration via an open SFP+ slot, and is compatible with most 10GbE SFP+ transceivers. With broad SFP+ compatibility this cost-effective fiber card lets you use your preferred SFP+ module, giving you more options to connect your computer directly to a fiber network at greater distances.



Superior Power Efficiency

For improved operating efficiency, the PEX10000SFP features an energy-efficient Tehuti TN4010 chipset that offers significantly reduced power consumption versus most comparable cards, including the Intel® 82599 chipset cards. Superior power efficiency also helps minimize heat generated by the card, in turn avoiding an increase in the operating temperature within your server case.



This versatile 10 Gbps network card offers 16K Jumbo Frame and 802.1q VLAN tagging support, as well as compatibility with VMWare® ESXi 5.0/5.1, Microsoft Hyper-V® virtualization software, and iSCSI support to combine LAN and SAN functions.



Backed by a StarTech.com 2-year warranty and free lifetime technical support.



The StarTech.com Advantage

- Scale your network performance to meet increased demand, with 10 Gbps speed over greater distances than standard copper networks

- Adapt to your network configuration using the 10GbE fiber transceiver module of your choice, through an open SFP+ slot

- Reduce power consumption and costs, with an energy-efficient and cost-effective chipset

Data sheet

Certification
CE, FCC
Chipset
TN4010, QT2025
Connectivity technology
Wired
Data transfer rate (max)
20000 Mbit/s
Depth
83 mm
Fiber optic connector
SFP+
Height
990mm
Host interface
PCI-E
Interface
Ethernet/Fiber
Networking standards
IEEE 802.1p,IEEE 802.1Q,IEEE 802.3ad,IEEE 802.3ae,IEEE 802.3aq,IEEE 802.3x
Operating relative humidity (H-H)
20 - 80 %
Operating temperature (T-T)
8 - 35 °C
Package height
28 mm
Package weight
146 g
Package width
985.6 mm
Power consumption (typical)
4.12 W
RoHS compliance
Yes
Source data-sheet
Icecat.biz
Storage temperature (T-T)
8 - 85 °C
Weight
43 g
Width
19 mm
Windows operating systems supported
Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 Pro,Windows 10 Pro x64,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64

Specific References

EAN13
0065030859554
