Hewlett Packard Enterprise E5412-92G-PoE+/2XG-SFP+ v2 zl

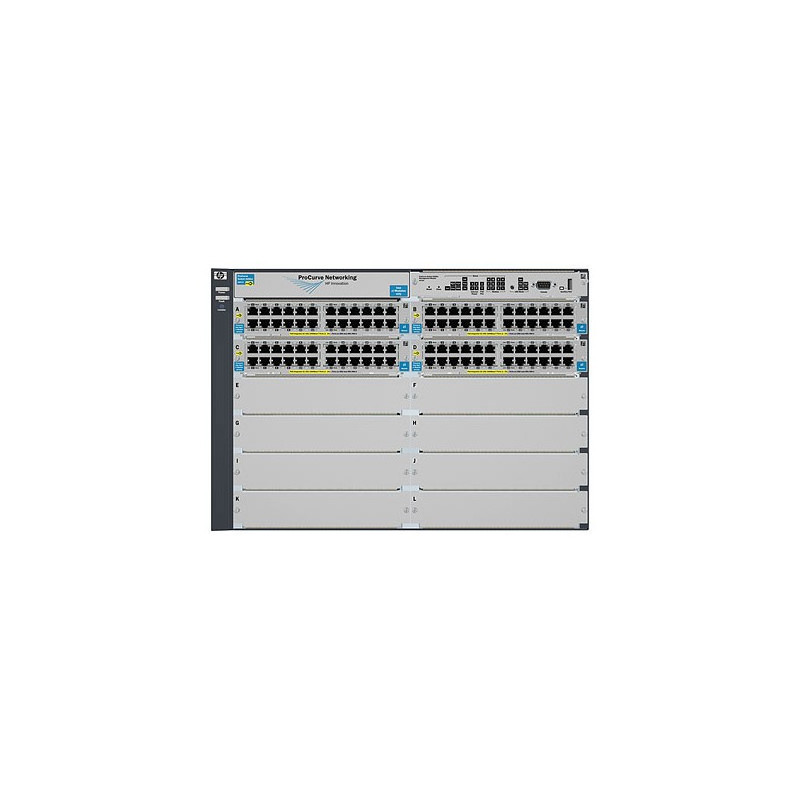

HP 5412-92G-PoE+-2XG v2 zl Switch with Premium Software
The HP 5400 zl Switch Series consists of advanced intelligent switches in the HP modular chassis product line, which includes 6-slot and 12-slot chassis and associated zl modules and bundles. The foundation for the switch series is a purpose-built, programmable ProVision ASIC that allows the most demanding networking features, such as Quality of Service (QoS) and security, to be implemented in a scalable yet granular fashion. With 10/100, Gigabit Ethernet, and 10 Gigabit Ethernet interfaces; choice of PoE+ and non-PoE; integrated Layer 3 features; and HP AllianceOne solutions, the 5400 zl switch series offers excellent investment protection, flexibility, and scalability, as well as ease of deployment, operation, and maintenance.
Software-defined networking
• OpenFlow: is a key technology that enables software-defined networking by allowing the separation of data (packet forwarding) and control (routing decision) paths
Quality of Service (QoS)
• Advanced classifier-based QoS: classifies traffic using multiple match criteria based on Layer 2, 3, and 4 information; applies QoS policies such as setting priority level and rate limit to selected traffic on a per-port or per-VLAN basis
Management
• Remote intelligent mirroring: mirrors selected ingress/egress traffic based on ACL, port, MAC address, or VLAN to a local or remote HP 8200 zl, 6600, 6200 yl, 5400 zl, or 3500 Switch located anywhere on the network
Connectivity
• IEEE 802.3az Energy Efficient Ethernet: lowers power consumption in periods of low link usage (supported on v2 zl 10/100/1000 and 10/100 modules)
Performance
• High-speed, high-capacity architecture: 1 Tbps crossbar switching fabric provides intra-module and inter-module switching with 585.6 million pps throughput on the purpose-built ProVision ASICs
Resiliency and high availability
• Virtual Router Redundancy Protocol: allows groups of two routers to dynamically back each other up to create highly available routed environments
Layer 2 switching
• VLAN support and tagging: supports the IEEE 802.1Q standard and 2,048 VLANs simultaneously
Software-defined networking
• OpenFlow: is a key technology that enables software-defined networking by allowing the separation of data (packet forwarding) and control (routing decision) paths
Quality of Service (QoS)
• Advanced classifier-based QoS: classifies traffic using multiple match criteria based on Layer 2, 3, and 4 information; applies QoS policies such as setting priority level and rate limit to selected traffic on a per-port or per-VLAN basis
Management
• Remote intelligent mirroring: mirrors selected ingress/egress traffic based on ACL, port, MAC address, or VLAN to a local or remote HP 8200 zl, 6600, 6200 yl, 5400 zl, or 3500 Switch located anywhere on the network
Connectivity
• IEEE 802.3az Energy Efficient Ethernet: lowers power consumption in periods of low link usage (supported on v2 zl 10/100/1000 and 10/100 modules)
Performance
• High-speed, high-capacity architecture: 1 Tbps crossbar switching fabric provides intra-module and inter-module switching with 585.6 million pps throughput on the purpose-built ProVision ASICs
Resiliency and high availability
• Virtual Router Redundancy Protocol: allows groups of two routers to dynamically back each other up to create highly available routed environments
Layer 2 switching
• VLAN support and tagging: supports the IEEE 802.1Q standard and 2,048 VLANs simultaneously
Data sheet
- 10G support
- Yes
- Auto MDI/MDI-X
- Yes
- Basic switching RJ-45 Ethernet ports quantity
- 92
- Built-in processor
- PowerPC 8540
- Connectivity technology
- Wired
- Copper ethernet cabling technology
- 1000BASE-T,1000BASE-TX,100BASE-TX,10BASE-T
- DHCP client
- Yes
- DHCP server
- Yes
- Dimensions (WxDxH)
- 450.9 x 444.5 x 307.3 mm
- Electromagnetic compatibility
- FCC, VCCI, EN/CISPR
- Flash memory
- 96 MB
- Form factor
- 7U height
- Heat dissipation
- 7400 BTU/h
- I/O ports
- 92 RJ-45 autosensing 10/100/1000 PoE+ ports(IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+), Media Type: Auto-MDIX, Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only; 2 open 10-GbE SFP
- Input voltage
- –36 - –72 V
- Internal memory
- ≈ 5,000 Cat 8 with plots; ≈ 12,000 Cat 6A with plots
- Latency
- 3.7µs/2.1µs
- MAC address table
- 64000 entries
- Management platform
- HP PCM+; HP PCM (included); command-line interface; Web browser; configuration menu; out-of-band management (serial RS-232C)
- Management protocols
- SNMPv1/v2c/v3, LLDP, RMON, XRMON, sFlow
- Maximum data transfer rate
- 96 Gbit/s
- Memory type
- DDR
- MIB support
- MLDv1/v2, OSPFv2/v3, RIPv2, RMONv2, SMON
- Mounting
- EIA
- Networking features
- Yes
- Networking standards
- IEEE 802.1D,IEEE 802.1p,IEEE 802.1Q,IEEE 802.1s,IEEE 802.1v,IEEE 802.1w,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3u,IEEE 802.3x
- Noise level
- 97.4 dB
- Number of VLANs
- 2048
- Operating altitude
- 914.4 - 2133 m
- Operating relative humidity (H-H)
- 15 - 95 %
- Operating relative humidity range
- 15 to 95 @ 131°F
- Operating temperature (T-T)
- 8 - 35 °C
- Operating temperature range (T-T)
- 0 - 55 °C
- Power consumption (typical)
- 312 W
- Power requirements
- Two J9306A are installed. Two open power supply slots are available; three different power supplies are available. See power supply products for additional specifications.; Heat dissipation does not include heat dissipated by the PoE-powered devices thems
- Power supply
- 1500 W
- Power supply type
- 2 x J9306A
- Safety
- CSA, UL, IEC, EN
- Security algorithms
- 802.1x RADIUS,SSH,SSL/TLS
- Source data-sheet
- Icecat.biz
- Storage relative humidity (H-H)
- 15 - 95 %
- Storage relative humidity range
- 15 to 95 @ 149°F
- Storage temperature (T-T)
- 8 - 85 °C
- Storage temperature range (T-T)
- -40 - 70 °C
- Supported data transfer rates
- x1 115.2 Kbits/sec., x2 230.4 Kbits/sec., x4 460.9 Kbits/sec
- Supported network protocols
- IPv6, SSHv6, SNTP, IGMPv3
- Switch layer
- L7
- Switching capacity
- 758.4 Gbit/s
- Throughput
- 564.2ml pps Mpps
- Weight
- 34180 g
Specific References
- EAN13
- 8856319413244
