Cisco 100BASE-FX SFP Fast Ethernet Interface Converter for Gigabit SFP ports

Cisco GLC-GE-100FX

100BASE-FX SFP transceiver module for Gigabit Ethernet ports, 1310nm wavelength, 2km over MMF
Out of Stock
Reference: GLC-GE-100FX=

Require Project Pricing?

Click here to email your parts list and we will send you a quote

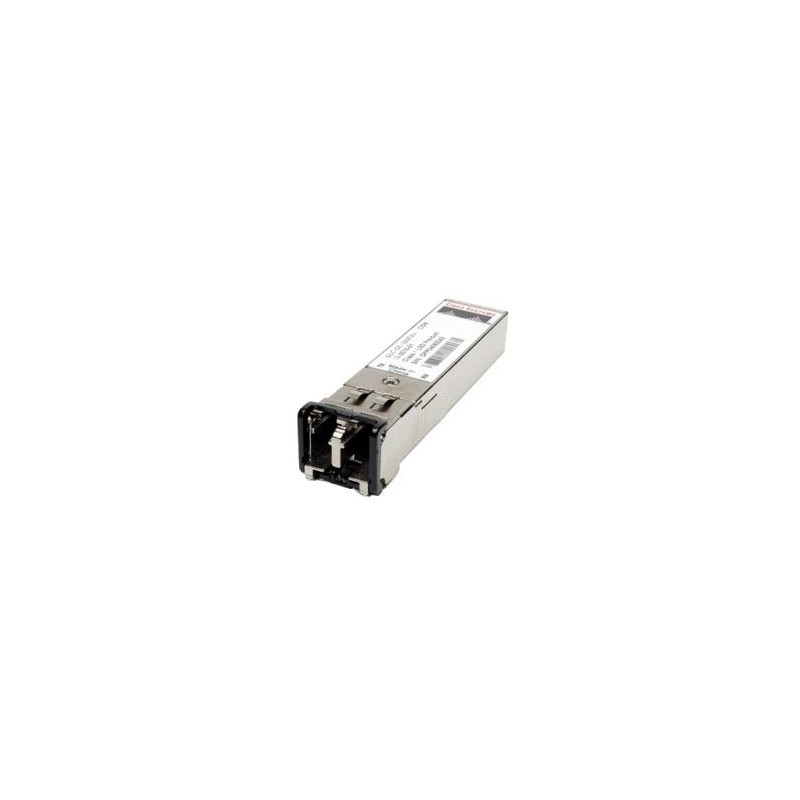

The Cisco® 100BASE-X Small Form-Factor Pluggable (SFP) device (Figure 1) is a hot-swappable input/output device that plugs into Fast Ethernet ports, dual-rate Fast/Gigabit Ethernet ports, or Gigabit Ethernet ports of a Cisco switch or router, linking the port with the fiber cabling network.



Main features include the following:



- Hot-swappable when deployed, the switch or router does not have to reboot

- Supports the “pay-as-you-populate” model

- Interchangeable with other 100BASE-X SFPs on the same line card

- Supports the Cisco quality ID feature that enables the switch or router to identify whether or not the SFP is a Cisco qualified SFP

- Optically interoperable with respective 100BASE-X Ethernet interfaces on the same link



Cisco 100BASE-FX SFP



The Cisco 100BASE-FX SFP operates on ordinary multimode fiber-optic (MMF) link spans up to 2 kilometers (km) long.



GLC-FE-100FX modules operate in Fast Ethernet or dual-rate Fast/Gigabit Ethernet ports of Cisco switches and routers.



GLC-FE-100FX-RGD modules operate in Fast Ethernet or dual-rate Fast/Gigabit Ethernet ports of Cisco Industrial Ethernet and SmartGrid switches and routers.



GLC-GE-100FX modules operate in Gigabit Ethernet ports of Cisco switches and routers.



All these modules are interoperable with industrywide interfaces compliant to the IEEE 100BASE-FX standard.
Cisco

Data sheet

Cable type
Multi-mode
Cabling technology
100BASE-FX
Compliance industry standards
802.3z.
Data link protocols
Fast Ethernet
Data transfer rate
0.1 Gbit/s
Data transfer rate (max)
1000 Mbit/s
Dimensions (WxDxH)
56.7 x 13.8 x 9.8 mm
Fiber optic connector
XFP
Interface type
XFP
Maximum transfer distance
900 m
Networking standards
IEEE 802.3ab
Operating temperature (T-T)
8 - 35 °C
Operating temperature range (T-T)
-40 - 80 °C
Power consumption (typical)
9W
Source data-sheet
Icecat.biz
Storage temperature (T-T)
8 - 85 °C
Storage temperature range (T-T)
0 - 45 °C
Technical features
Wavelength (Min/Typ/Max): 1270/1300/1380
MMF Fiber type
Full duplex
Wavelength
[1250 nm – 1600 nm]

Specific References

EAN13
7463209770038
