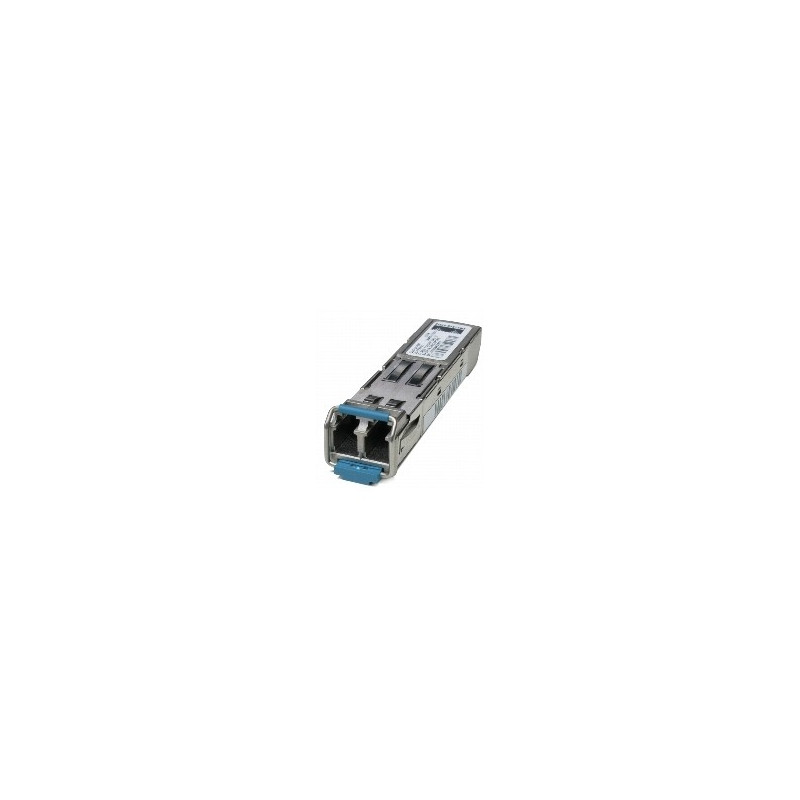

Cisco 1000BASE-BX10-D
1000BASE-BX10-D downstream bidirectional single fiber; with DOM
The industry-standard Cisco® Small Form-Factor Pluggable (SFP) Gigabit Interface Converter is a hot-swappable input/output device that plugs into a Gigabit Ethernet port or slot, linking the port with the network. SFPs can be used and interchanged on a wide variety of Cisco products and can be intermixed in combinations of 1000BASE-SX, 1000BASE-LX/LH, 1000BASE-ZX, or 1000BASE-BX10-D/U on a port-by-port basis.
The 1000BASE-BX-D, compatible with the IEEE 802.3ah 1000BASE-BX10-D standard, operate on a single strand of standard SMF.
A 1000BASE-BX10-D device is always connected to a 1000BASE-BX10-U device with a single strand of standard SMF with an operating transmission range up to 10 km.
The communication over a single strand of fiber is achieved by separating the transmission wavelength of the two devices: 1000BASE-BX10-D transmits a 1490-nm channel and receives a 1310-nm signal, whereas 1000BASE-BX10-U transmits at a 1310-nm wavelength and receives a 1490-nm signal.
The GLC-BX-D SFP also support digital optical monitoring (DOM) functions according to the industry-standard SFF-8724 multisource agreement (MSA). This feature gives the end user the ability to monitor real-time parameters of the SFP, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage.
The 1000BASE-BX-D, compatible with the IEEE 802.3ah 1000BASE-BX10-D standard, operate on a single strand of standard SMF.
A 1000BASE-BX10-D device is always connected to a 1000BASE-BX10-U device with a single strand of standard SMF with an operating transmission range up to 10 km.
The communication over a single strand of fiber is achieved by separating the transmission wavelength of the two devices: 1000BASE-BX10-D transmits a 1490-nm channel and receives a 1310-nm signal, whereas 1000BASE-BX10-U transmits at a 1310-nm wavelength and receives a 1490-nm signal.
The GLC-BX-D SFP also support digital optical monitoring (DOM) functions according to the industry-standard SFF-8724 multisource agreement (MSA). This feature gives the end user the ability to monitor real-time parameters of the SFP, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage.
Data sheet
- Certification
- • IEEE 802.3z\n• IEEE 802.3ah\n
- Connector(s)
- Single LC/PC/UPC
- Dimensions (WxDxH)
- 13.4 x 56.5 x 8.5 mm
- Fiber type
- SMF
- Maximum transfer distance
- 900 m
- Operating temperature (T-T)
- 8 - 35 °C
- Operating temperature range (T-T)
- 0 - 70 °C
- Safety
- Laser Class I 21CFR1040 LN#50 7/2001; Laser Class I IEC 60825-1
- Source data-sheet
- Icecat.biz
- Storage temperature (T-T)
- 8 - 85 °C
- Storage temperature range (T-T)
- -40 - 85 °C
- Transmit power
- -3 - 9 dBmW
- Wavelength
- [1250 nm – 1600 nm]
- Weight
- 75 g
Specific References
- EAN13
- 0882658010835
