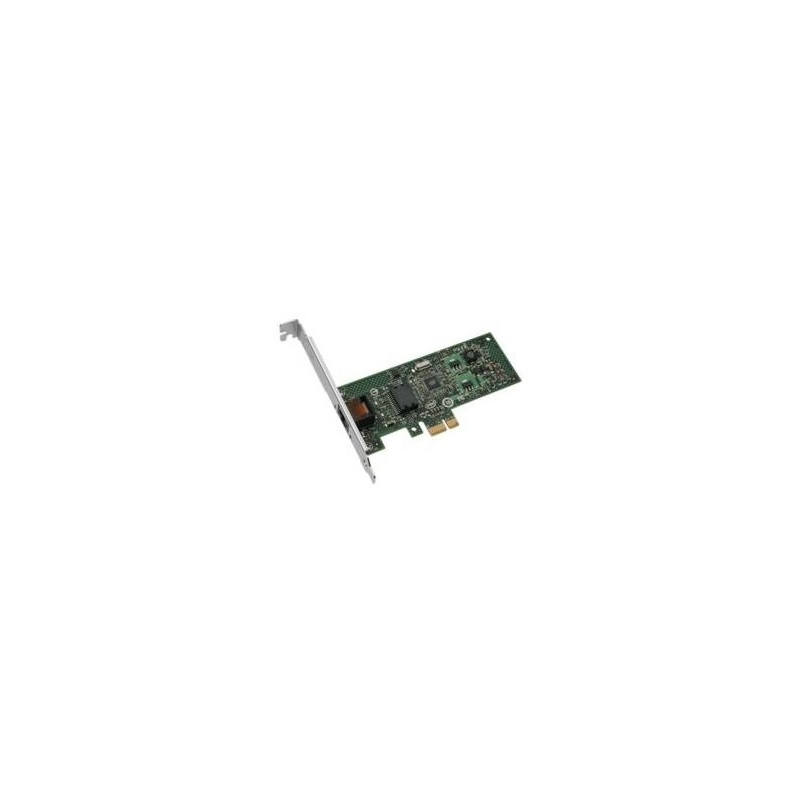

Intel Gigabit PRO/1000 CT
Gigabit PRO/1000 CT Desktop Adapter PCI-express
For PCs with PCI Express (PCIe*) slots, the Intel Gigabit CT Desktop Adapter offers the newest technology for maximizing system performance and increasing end-user productivity. Specifically, the Intel Gigabit CT Desktop Adapter uses auto-negotiation to ensure the adapter runs at the highest available network speed (10, 100, or 1000 Mbps), and it maintains full bandwidth capacity with the dedicated bandwidth of a PCI Express input/output (I/O) bus to provide connectivity you can count on. Based on the low-power Intel 82574L Gigabit Ethernet Controller, this desktop adapter offers optimal performance in a low-cost, low-power, compact profile. Teaming support and an array of other advanced features enable customers to utilize this adapter as an entry-level server adapter as well.
Data sheet
- Cable type
- Category-5 up to 100m
- Certification
- FCC B, UL, CE
- Compliance industry standards
- 802.3z
- Connectivity technology
- Wired
- Data transfer rate (max)
- 1000 Mbit/s
- Depth
- 119.2 mm
- Height
- 990mm
- Host interface
- PCI-E
- Interface type
- PCIe v1.1 (2.5GT/s)
- Minimum system requirements
- Windows 2000/XP/Vista/Server 2003/Server 2008, Linux, DOS
- Operating temperature (T-T)
- 8 - 35 °C
- Operating temperature range (T-T)
- 0 - 55 °C
- Power consumption (typical)
- 1.9 W
- Source data-sheet
- Icecat.biz
- Storage temperature (T-T)
- 8 - 85 °C
- Storage temperature range (T-T)
- -40 - 70 °C
- Supported data transfer rates
- x1 115.2 Kbits/sec., x2 230.4 Kbits/sec., x4 460.9 Kbits/sec
- Width
- 55.3 mm
Specific References
- EAN13
- 6759009173782
