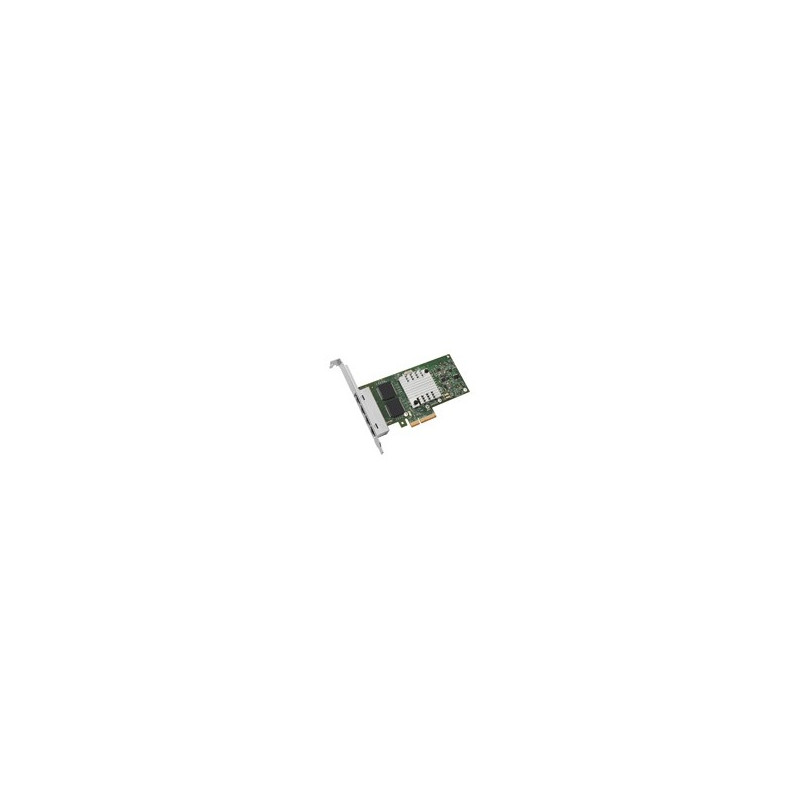

Intel Ethernet Server Adapter I340

Intel Ethernet Server Adapter I340

Ethernet Server Adapter I340
Out of Stock
Reference: E1G44HT

Require Project Pricing?

Click here to email your parts list and we will send you a quote
Based on the new Intel® 82580 Gigabit Ethernet Controller, the Intel® Ethernet Server Adapter I340 is Intel’s fourth generation of PCIe* GbE adapter. This adapter showcases the industry’s first fully integrated quad-port PCIe Gen2 GbE controller, providing a smaller footprint and lower power dissipation. In addition, the Intel® Ethernet Server Adapter I340 offers advanced features, including support for multi-core processors and server virtualization, as well as a scalable PCI* Express Gen 2.0 interface.



Intel’s first eco-friendly halogen-free board combines low-power and cost for the best price/performance ratio in a quad-port solution available today.
Intel

Data sheet

Built-in processor
Intel 82580
Cable length
100 m
Cable type
Category-5 up to 100m
Certification
FCC B, UL, CE, VCCI, BSMI, CTICK, KCC
Compatible operating systems
Windows Vista SP1/Unified Storage Solution 2003/ Server 2003 SP2+,
Linux,
FreeBSD 7.0,
UEFI 1.1,
VMware ESX 3.x
Connectivity technology
Wired
Data transfer rate (max)
1000 Mbit/s
Depth
135.4 mm
Dimensions (WxDxH)
68.9 x 135.4 x 120 mm
Ethernet LAN connection
Yes
Height
990mm
Host interface
PCI-E
Interface type
PCIe v2.0 (5.0GT/s)
LED indicators
LINK / ACTIVITY
Operating temperature (T-T)
8 - 35 °C
Operating temperature range (T-T)
0 - 55 °C
Ports quantity
4
Power consumption (typical)
9W
Slot type
x4 / x8 / x16
Source data-sheet
Icecat.biz
Storage temperature (T-T)
8 - 85 °C
Storage temperature range (T-T)
-40 - 70 °C
Supported data transfer rates
x1 115.2 Kbits/sec., x2 230.4 Kbits/sec., x4 460.9 Kbits/sec
Supported network protocols
IEEE 1588 PTC
Width
68.9 mm
Message signal interrupt
Yes
Bracket height
Low Profile & Full Height
Network interface card cable medium
Copper

Specific References

EAN13
0675901022705
