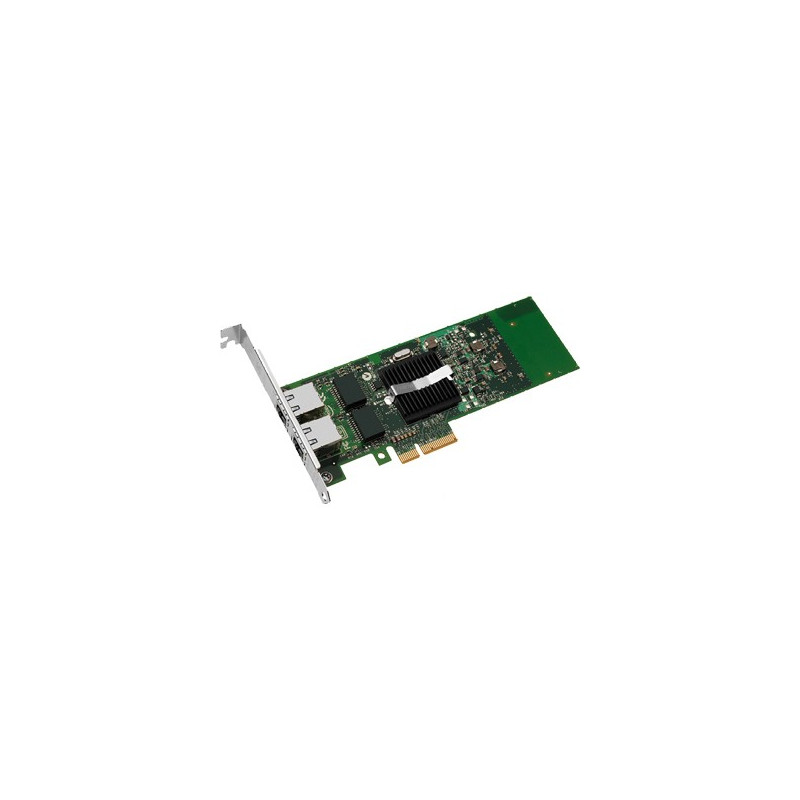

Intel Gigabit ET Dual Port Server Adapter
The Intel® Gigabit ET and EF Multi-Port Server Adapters are Intel's third generation of PCIe GbE network adapters. Built with the Intel® 82576 Gigabit Ethernet Controller, these new adapters showcase the next evolution in GbE networking features for the enterprise network and data center. These features include support for multi-core processors and optimization for server virtualization.
Features and benefits:
- Industry-leading, energy-efficient design for next-generation Gigabit performance and multi-core processors.
- Enables higher bandwidth and throughput from standard and low-profile PCI Express slots and servers.
- Provides centralized storage area network (SAN) management at a lower cost than competing iSCSI solutions.
- Increases performance on multi-processor systems by efficiently balancing network loads across CPU cores when used with Receive-Side Scaling from Microsoft or Scalable I/O on Linux.
- Allows each port to operate without interfering with the other
- Enables dual- or quad-port operation in almost any PCI Express server slot, except x1 slots.
- Enables widespread deployment.
- Compliant with the European Union directive 2002/95/EC to reduce the use of hazardous materials.
- Provides point-and-click management of individual adapters, advanced adapter features, connection teaming, and virtual local area network (VLAN) configuration.
Features and benefits:
- Industry-leading, energy-efficient design for next-generation Gigabit performance and multi-core processors.
- Enables higher bandwidth and throughput from standard and low-profile PCI Express slots and servers.
- Provides centralized storage area network (SAN) management at a lower cost than competing iSCSI solutions.
- Increases performance on multi-processor systems by efficiently balancing network loads across CPU cores when used with Receive-Side Scaling from Microsoft or Scalable I/O on Linux.
- Allows each port to operate without interfering with the other
- Enables dual- or quad-port operation in almost any PCI Express server slot, except x1 slots.
- Enables widespread deployment.
- Compliant with the European Union directive 2002/95/EC to reduce the use of hazardous materials.
- Provides point-and-click management of individual adapters, advanced adapter features, connection teaming, and virtual local area network (VLAN) configuration.
Data sheet
- Built-in processor
- Intel 82576
- Cable type
- Category-5 up to 100m
- Cabling technology
- Rj-45 Copper
- Certification
- FCC B, UL, CE, VCCI, BSMI, CTICK, MIC
- Compatible operating systems
- Windows Vista SP1/Unified Storage Solution 2003/ Server 2003 SP2+, Linux, FreeBSD 7.0, UEFI 1.1, VMware ESX 3.x
- Connectivity technology
- Wired
- Data transfer rate (max)
- 1000 Mbit/s
- Depth
- 167.4 mm
- Ethernet LAN connection
- Yes
- Height
- 990mm
- Host interface
- PCI-E
- Interface type
- PCIe v2.0 (2.5GT/s)
- LED indicators
- LINK / ACTIVITY
- Operating temperature (T-T)
- 8 - 35 °C
- Operating temperature range (T-T)
- 0 - 55 °C
- Ports quantity
- 2
- Power consumption (typical)
- 2.9 W
- Slot type
- x4 / x8 / x16
- Source data-sheet
- Icecat.biz
- Storage temperature (T-T)
- 8 - 85 °C
- Storage temperature range (T-T)
- -40 - 70 °C
- Supported data transfer rates
- 10/100/1000
- Supported network protocols
- IEEE 1588 PTC
- Width
- 68.1 mm
- Message signal interrupt
- Yes
- Bracket height
- Low Profile & Full Height
- Network interface card cable medium
- Copper
- Network interface card security
- IPSec
Specific References
- EAN13
- 0735858203135
