Axis M1145-L
M1145-L, 2MP/ HDTV 1080p, CMOS, IR, 1920 x 1080, H.264, RJ-45 10BASE-T/100BASE-TX

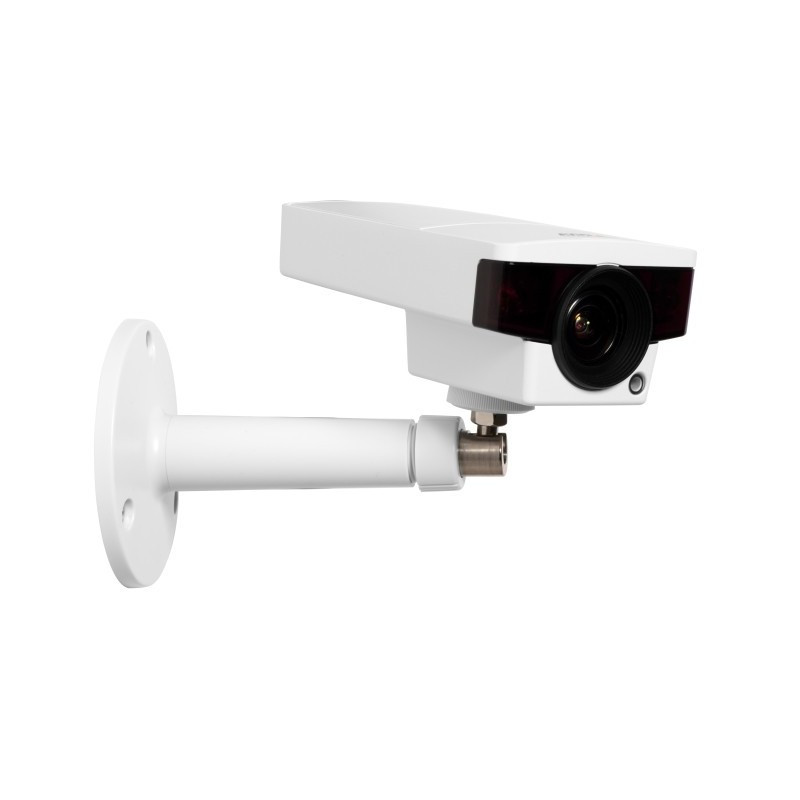

AXIS M1145-L Network Camera is an affordable and compact fixed camera, perfectly suited for boutiques, restaurants, hotels and offices or other places where surveillance is required during day and night.
AXIS M1145-L with board-mount, varifocal, P-iris lens provides excellent image quality at 30 frames per second in 2 megapixel / HDTV resolution. The P-iris control provides optimal depth of field, resolution, image contrast and clarity. The cost-effective, compactly designed camera offers multiple H.264 and Motion JPEG streams that can be individually optimized for bandwidth and storage efficiency. The camera supports digital pan/tilt/zoom, which allows a view cropped from the full view to be streamed for viewing or recording.
AXIS M1145-L offers Axis OptimizedIR, a power-efficient LED technology that provides an adaptable angle of IR illumination and discreet integration of IR LEDs, the cameras provide automatic illumination of a scene in complete darkness, at an event or when requested by a user. The IR LED illumination which is invisible to the human eye, is perfect for discovering objects in a range of up to 15 meters (50 ft).
AXIS M1145-L offers support for edge storage that allows recording video directly to a storage such as an microSD/SD/SDHC card, thereby creating a flexible and reliable video surveillance system.
Power over Ethernet supplies power to the camera via the network, eliminating the need for power cables and reducing installation costs. AXIS M1145-Lalso offers remote zoom and focus that eliminates the need for hands-on fine tuning and ensures that the camera’s angle of view is optimized for the area to be monitored.
AXIS M1145-L with board-mount, varifocal, P-iris lens provides excellent image quality at 30 frames per second in 2 megapixel / HDTV resolution. The P-iris control provides optimal depth of field, resolution, image contrast and clarity. The cost-effective, compactly designed camera offers multiple H.264 and Motion JPEG streams that can be individually optimized for bandwidth and storage efficiency. The camera supports digital pan/tilt/zoom, which allows a view cropped from the full view to be streamed for viewing or recording.
AXIS M1145-L offers Axis OptimizedIR, a power-efficient LED technology that provides an adaptable angle of IR illumination and discreet integration of IR LEDs, the cameras provide automatic illumination of a scene in complete darkness, at an event or when requested by a user. The IR LED illumination which is invisible to the human eye, is perfect for discovering objects in a range of up to 15 meters (50 ft).
AXIS M1145-L offers support for edge storage that allows recording video directly to a storage such as an microSD/SD/SDHC card, thereby creating a flexible and reliable video surveillance system.
Power over Ethernet supplies power to the camera via the network, eliminating the need for power cables and reducing installation costs. AXIS M1145-Lalso offers remote zoom and focus that eliminates the need for hands-on fine tuning and ensures that the camera’s angle of view is optimized for the area to be monitored.
Data sheet
- AC input frequency
- 50/60 Hz
- Cabling technology
- 10/100Base-T(X)
- Camera shutter speed
- 1/33500 s
- Camera shutter type
- Electronic
- Card reader integrated
- Yes
- Colour of product
- White
- Compatible memory cards
- microSD (TransFlash), microSDHC, microSDXC
- Connectivity technology
- Wired
- Day/night mode
- Yes
- DC-in jack
- Yes
- Focal length range (f-f)
- 3 - 10.5 mm
- Frame rate
- 9 fps
- Height
- 990mm
- Interface
- XFP
- Maximum resolution
- 9600 x 600 DPI
- Megapixel
- 2 MP
- Mounting type
- Wall/Desk
- Operating relative humidity (H-H)
- 20 - 80 %
- Operating temperature (T-T)
- 8 - 35 °C
- Optical sensor size
- 1/2.9 "
- Password protection type
- User
- Power over Ethernet (PoE) support
- Yes
- Progressive scan
- Yes
- PTZ control (Pan/Tilt/Zoom)
- Yes
- Rotation
- 270 °
- Security algorithms
- WPS,WPS-PBC,WPA,WPS-PIN,WPA2
- Sensor type
- Ultrasonic sensor
- Source data-sheet
- Icecat.biz
- Storage temperature (T-T)
- -20 - 60 °C
- Supported graphics resolutions
- XGA, VGA, SVGA
- Supported network protocols
- HTTP, HTTPS, SSL/TLS*, QoS Layer 3 DiffServ, FTP, SMTP, Bonjour, UPnP™, SNMPv1/v2c/v3(MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, CIFS/SMB, SSH
- Supported video modes
- 960p
- Video formats supported
- H.264, MPEG4
- White balance
- Sodium lamp,Auto,Fluorescent,Halogen,Manual
- Width
- 993 mm
Specific References
- EAN13
- 0741027165692
M1145-L, 2MP/ HDTV 1080p, CMOS, IR, 1920 x 1080, H.264, RJ-45 10BASE-T/100BASE-TX
