PD-9501GO/48VDC

Microsemi PD-9501GO/48VDC

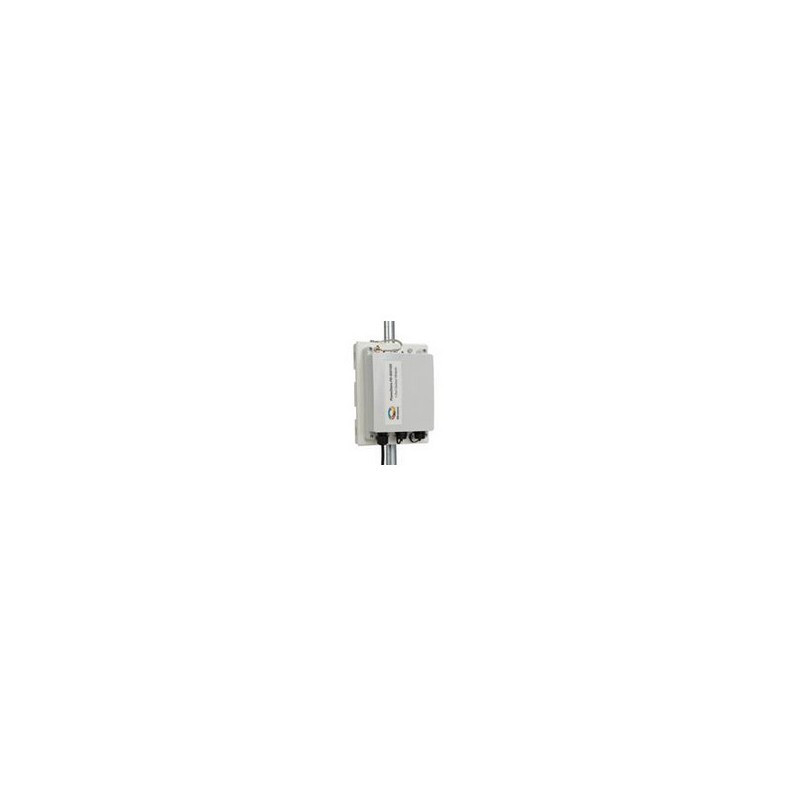

PD-9501GO/48VDC - 1-port, 60W 802.3at Gigabit PoE outdoor midspan with 48VDC input
Out of Stock
Reference: PD-9501GO/48VDC

Require Project Pricing?

Click here to email your parts list and we will send you a quote
PowerDsine 9501GO Power over Ethernet (PoE) single- port midspan offers a fully IEEE 802.3at compliant solution for outdoor installations, guaranteeing 60 Watts of power while ensuring safe and reliable operation in outdoor environments. It allows wireless LAN access points, security network cameras and other IP terminals to receive power, along with data, over standard Ethernet cables, leaving network infrastructure completely unaltered.

The 9501GO also offers surge protection for both the AC and the PoE ports ensuring the indoor equipment is protected from outdoor surges.
Microsemi

Data sheet

Certification
FCC, RoHS, WEEE, CE, UL/cUL
Compliance industry standards
802.3af, 802.3at
Dimensions (WxDxH)
214 x 150 x 70 mm
Input current
9/4.5 A
Operating altitude
0 - 2000 m
Operating relative humidity (H-H)
0 - 90 %
Operating temperature (T-T)
-10 - 45 °C
Power over Ethernet (PoE) support
Yes
Source data-sheet
Icecat.biz
Storage relative humidity (H-H)
0 - 95 %
Storage temperature (T-T)
8 - 85 °C
Weight
VFD and cable: 36.6 lb; Pole (each): 50.7 oz; Base: 66.1 lb (VFD and cable: 1.29 lb; Pole (each): 1.79 oz; Base: 2.33 lb)

Specific References

EAN13
0844117001990
