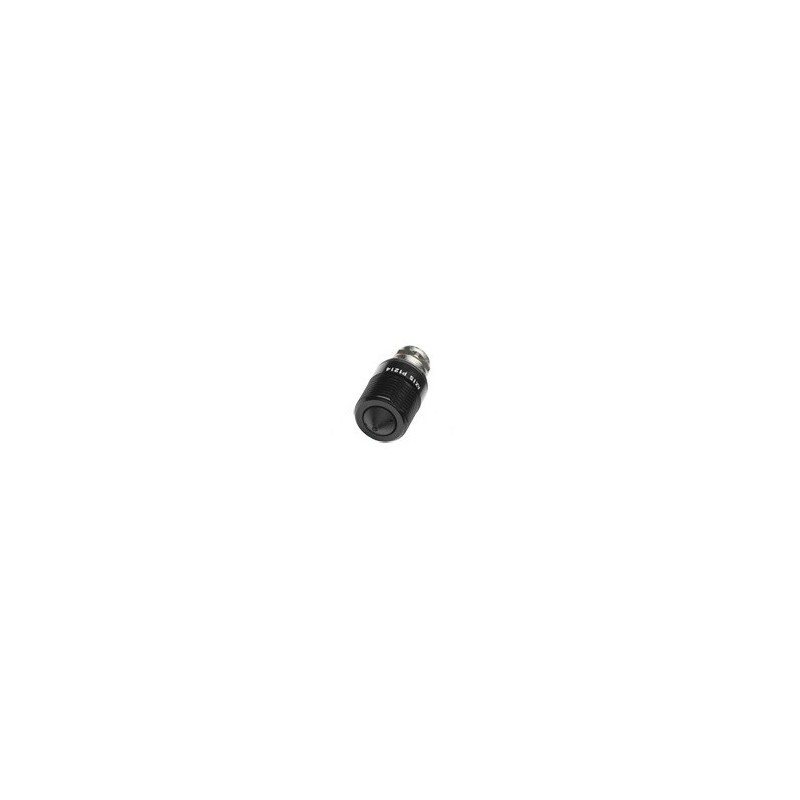

Axis P1214
P1214, HDTV 720p, 3.7 mm: 57°, F2.5, 1.2 - 10000 lux, 1280x720 to 320x180, 256 MB RAM, 128 MB Flash
Unique design concept
The unique form factor and small size of the sensor unit, enables flush mounting at places where a concealed application is required. AXIS P1214 is ideal for indoor compact and covert surveillance in stores, architectural buildings, hotels, offices, banks and ATMs.
Compact and covert installations
AXIS P1214 sensor and main unit
The innovative design concept of AXIS P1214 comprises a main unit and a separate sensor unit, enabling it to be mounted up to 8 meters (26ft.) apart.
AXIS P1214
AXIS P1214 can easily be mounted behind any wall, with just a small opening for the lens, or with the whole lens protruding from the wall. The camera include various mounting accessories enabling quick and easy installation.
HDTV 720p
The exceptionally discreet, miniature AXIS P1214 Network Camera provides full frame rate HDTV 720p (1280x720 pixels) video in H.264 and Motion JPEG.
More features
-Power over Ethernet (IEEE 802.3af), eliminating the need for power cables and reducing installation costs
-Intelligent capabilities such as enhanced video motion detection and detection of camera tampering attempts like blocking or spray-painting
-Advanced security and network management features such as HTTPS encryption with preserved performance, IPv6 and Quality of Service
-Open Application Programming Interface (API) for software integration, including VAPIX® and from -Axis Communications
-Support for AXIS Video Hosting System (AVHS) with One-Click Camera connection
The unique form factor and small size of the sensor unit, enables flush mounting at places where a concealed application is required. AXIS P1214 is ideal for indoor compact and covert surveillance in stores, architectural buildings, hotels, offices, banks and ATMs.
Compact and covert installations
AXIS P1214 sensor and main unit
The innovative design concept of AXIS P1214 comprises a main unit and a separate sensor unit, enabling it to be mounted up to 8 meters (26ft.) apart.
AXIS P1214
AXIS P1214 can easily be mounted behind any wall, with just a small opening for the lens, or with the whole lens protruding from the wall. The camera include various mounting accessories enabling quick and easy installation.
HDTV 720p
The exceptionally discreet, miniature AXIS P1214 Network Camera provides full frame rate HDTV 720p (1280x720 pixels) video in H.264 and Motion JPEG.
More features
-Power over Ethernet (IEEE 802.3af), eliminating the need for power cables and reducing installation costs
-Intelligent capabilities such as enhanced video motion detection and detection of camera tampering attempts like blocking or spray-painting
-Advanced security and network management features such as HTTPS encryption with preserved performance, IPv6 and Quality of Service
-Open Application Programming Interface (API) for software integration, including VAPIX® and from -Axis Communications
-Support for AXIS Video Hosting System (AVHS) with One-Click Camera connection
Data sheet
- AC adapter included
- Yes
- Built-in hard drive
- No
- Built-in microphone
- Yes
- Cables included
- AC
- Cabling technology
- 10/100Base-T(X)
- Camera shutter speed
- 1/6 - 1/24500 s
- Camera shutter type
- Electronic
- Card reader integrated
- Yes
- Colour of product
- Black
- Compatible memory cards
- microSD (TransFlash), microSDHC, microSDXC
- Connectivity technology
- Wired
- DC-in jack
- Yes
- Flash memory
- 96 MB
- Form factor
- covert
- Frame rate
- 9 fps
- Internal memory
- ≈ 5,000 Cat 8 with plots; ≈ 12,000 Cat 6A with plots
- Maximum resolution
- 1280 x 720 pixels
- Megapixel
- 1 MP
- Minimum illumination
- 1.2 lx
- Mounting type
- Wall/Ceiling
- Night vision
- No
- Operating temperature (T-T)
- -20 - 50 °C
- Optical sensor size
- 1/4 "
- Power consumption (typical)
- 9W
- Power over Ethernet (PoE) support
- Yes
- PTZ control (Pan/Tilt/Zoom)
- No
- Sensor type
- Ultrasonic sensor
- Source data-sheet
- Icecat.biz
- Supported network protocols
- IPv4/v6, HTTP, HTTPS*, SSL/TLS*, QoS Layer 3 DiffServ, FTP, CIFS/ SMB, SMTP, Bonjour, UPnPTM, SNMPv1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS
- Supported video modes
- 720p
- Type
- IP
- Video formats supported
- H.264, MPEG2, MPEG4
- Viewing angle, horizontal
- 57 °
- Weight
- VFD and cable: 36.6 lb; Pole (each): 50.7 oz; Base: 66.1 lb (VFD and cable: 1.29 lb; Pole (each): 1.79 oz; Base: 2.33 lb)
Specific References
- EAN13
- 7331021004023
P1214, HDTV 720p, 3.7 mm: 57°, F2.5, 1.2 - 10000 lux, 1280x720 to 320x180, 256 MB RAM, 128 MB Flash
