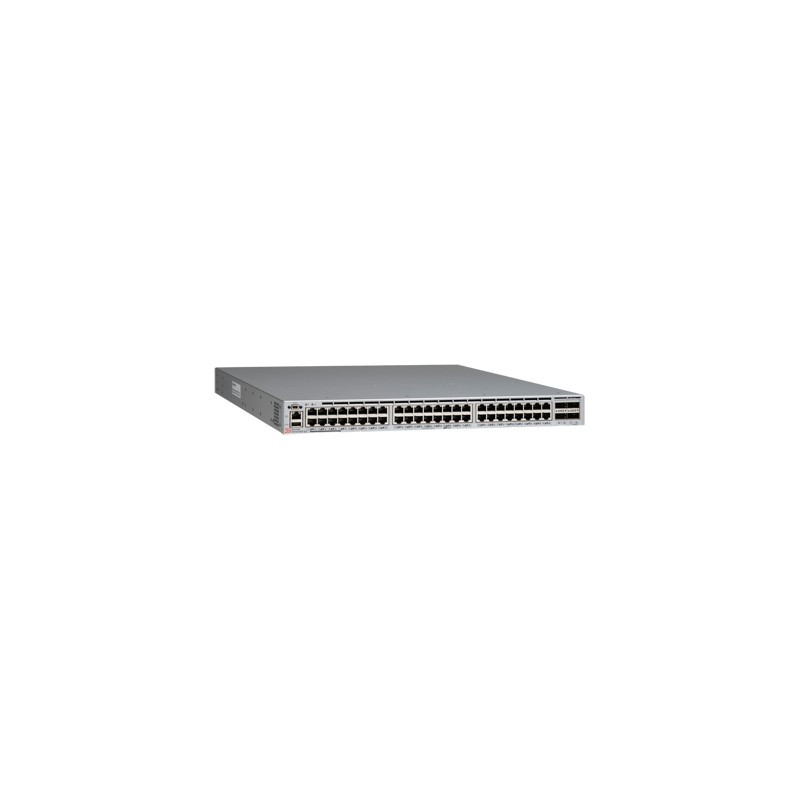

Brocade VDX 6740T

48 x 10GBASE-T RJ-45, 16 x SFP+, w/o Optics, AC, Non-Port-Side Exhaust Airflow
Out of Stock
Reference: BR-VDX6740T-64-F

Require Project Pricing?

Click here to email your parts list and we will send you a quote
Brocade VDX 6740 Switches provide the advanced feature set that data centers require. Together with Brocade VCS Fabric technology, these switches can simplify network design and operations for a more automated and efficient network, offer the flexibility needed to easily scale networks, and provide a cloud-ready infrastructure.
Brocade

Data sheet

10G support
Yes
AC input frequency
50/60 Hz
AC input voltage
85-264 V
Basic switching RJ-45 Ethernet ports quantity
48
Basic switching RJ-45 Ethernet ports type
10G Ethernet (100/1000/10000)
Certification
ANSI C63.4
ICES-003 Class A
CISPR22 / JEIDA
EN55022 Class A / EN55024
CISPR22
AS/NZS CISPR22
CNS 13438(95)
51318.22-99 / 51318.24-99
KN22 / KN24
GB17625.1-2003
RoHS
Colour of product
Black
Copper ethernet cabling technology
1000BASE-T,100BASE-TX,10BASE-T,10GBASE-T
Depth
536.5 mm
Electromagnetic compatibility
FCC Class A, ICES-003 Class A, VCCI-Class A, CE, C-Tick, BSMI, GOST, KCC Class A, CCC
Height
42.7 mm
Latency (10 Gbps)
3 µs
MAC address table
160000 entries
Management protocols
sFlow, RMON, SNMP v1/v2c/v3, NTP, Telnet, RSPAN
MIB support
MIB II RFC 1213 MIB
Networking standards
IEEE 802.1ab,IEEE 802.1D,IEEE 802.1p,IEEE 802.1Q,IEEE 802.1s,IEEE 802.1v,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3ae,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
Number of VLANs
8000
Operating altitude
914.4 - 2133 m
Operating relative humidity (H-H)
10 - 85 %
Operating temperature (T-T)
8 - 35 °C
Power consumption (typical)
420 W
Power over Ethernet (PoE) support
No
Safety
CAN/CSA C22.2 No. 60950-1-07, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, GB 4943.1-2011, GB9254-2008, CNS14336-1(99)
Security algorithms
802.1x RADIUS,SSH-2
Source data-sheet
Icecat.biz
Storage relative humidity (H-H)
10 - 90 %
Storage temperature (T-T)
-25 - 70 °C
Supported network protocols
WEP, WPA/WPA2-PSK
Switch layer
L7
Switching capacity
1280 Gbit/s
Throughput
960 Mpps
USB 2.0 ports quantity
7
Weight
10820 g
Width
437.4 mm
