Hewlett Packard Enterprise 451871-B21
Fibre Channel, PCIe, 8W, 8Gb

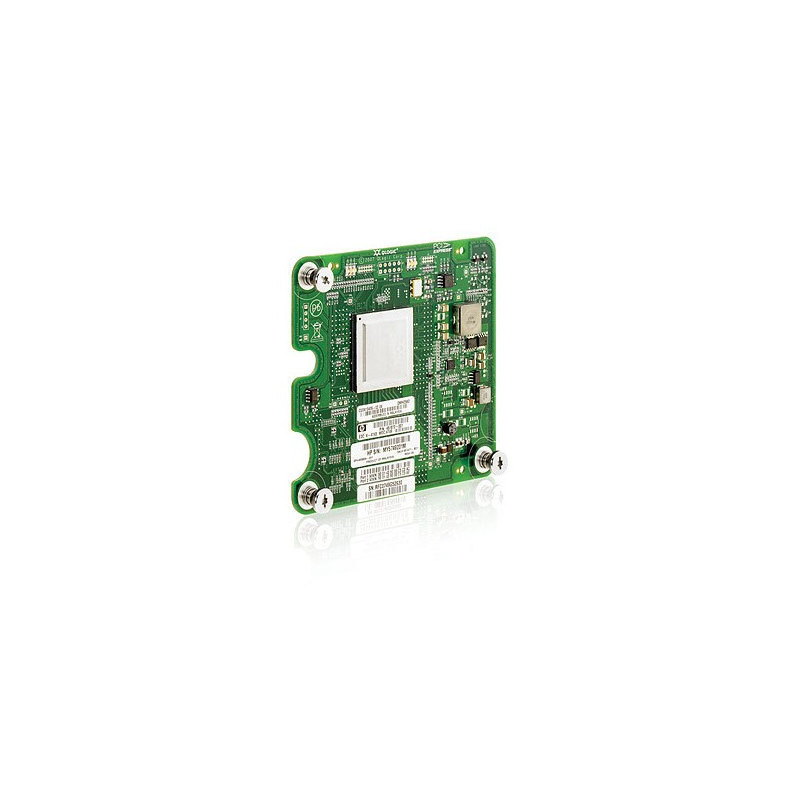

The QMH2562 is a PCI Express based 8Gb Fibre Channel mezzanine card for the HP c-Class BladeSystem that delivers twice the data throughput as the previous generation 4Gb mezzanine card. It is optimized for virtualization, low power usage, management, security, reliability, availability and serviceability. While providing leading edge 8Gb performance, it is also backward compatible with 4Gb and 2Gb Fibre Channel speeds.
Virtualization, power and security.
QLogic QMH2562 8Gb Fibre Channel HBA for c-Class BladeSystem allows multiple logical (virtual) connections to share the same physical port. Each logical connection has its own resources and the ability to be managed independently. QLogic QMH2562 8Gb Fibre Channel HBA for c-Class BladeSystem takes advantage of the QLogic StarPower technology ensuring a power efficient HBA. The QLogic StarPower technology offers features such as power and bandwidth intelligent PCIe link training and low-power switching power supplies. QLogic QMH2562 8Gb Fibre Channel HBA for c-Class BladeSystem enables SAN-level authentication, fabric-level isolation, and end-to-end data integrity. Features include; authentication through FC-SP, data integrity through T10 CRC and access control in virtualized environments.
- Power Optimized.
- Security Optimized.
- RAS Optimized.
Virtualization, power and security.
QLogic QMH2562 8Gb Fibre Channel HBA for c-Class BladeSystem allows multiple logical (virtual) connections to share the same physical port. Each logical connection has its own resources and the ability to be managed independently. QLogic QMH2562 8Gb Fibre Channel HBA for c-Class BladeSystem takes advantage of the QLogic StarPower technology ensuring a power efficient HBA. The QLogic StarPower technology offers features such as power and bandwidth intelligent PCIe link training and low-power switching power supplies. QLogic QMH2562 8Gb Fibre Channel HBA for c-Class BladeSystem enables SAN-level authentication, fabric-level isolation, and end-to-end data integrity. Features include; authentication through FC-SP, data integrity through T10 CRC and access control in virtualized environments.
- Power Optimized.
- Security Optimized.
- RAS Optimized.
Data sheet
- Compatible operating systems
- X520
- Connectivity technology
- Wired
- Data transfer rate
- 8 Gbit/s
- Dimensions (W x D x H)
- 1.27 x 101.6 x 114.3 mm (0.05 x 4 x 4.5 ")
- Host interface
- PCI-E
- Non-operating altitude
- 0 - 9144 m
- Operating altitude
- 0 - 3050 m
- Operating relative humidity (H-H)
- 10 - 90 %
- Operating relative humidity range
- 10 - 90 %
- Operating temperature (T-T)
- 10 - 70 °C
- Operating temperature range (T-T)
- 10 - 70 °C
- Ports quantity
- 2
- Power supply
- 8 W
- RoHS compliance
- Yes
- Source data-sheet
- Icecat.biz
- Storage relative humidity (H-H)
- 5 - 95 %
- Storage relative humidity range
- 5 - 95 %
- Storage temperature (T-T)
- -30 - 60 °C
- Storage temperature range (T-T)
- -30 - 60 °C
- Supported protocols
- FC-AL-2, FC-AL, FC-Tape, FCP-3-SCSI
- Weight
- VFD and cable: 36.6 lb; Pole (each): 50.7 oz; Base: 66.1 lb (VFD and cable: 1.29 lb; Pole (each): 1.79 oz; Base: 2.33 lb)
Specific References
- EAN13
- 4948382520289
Fibre Channel, PCIe, 8W, 8Gb
