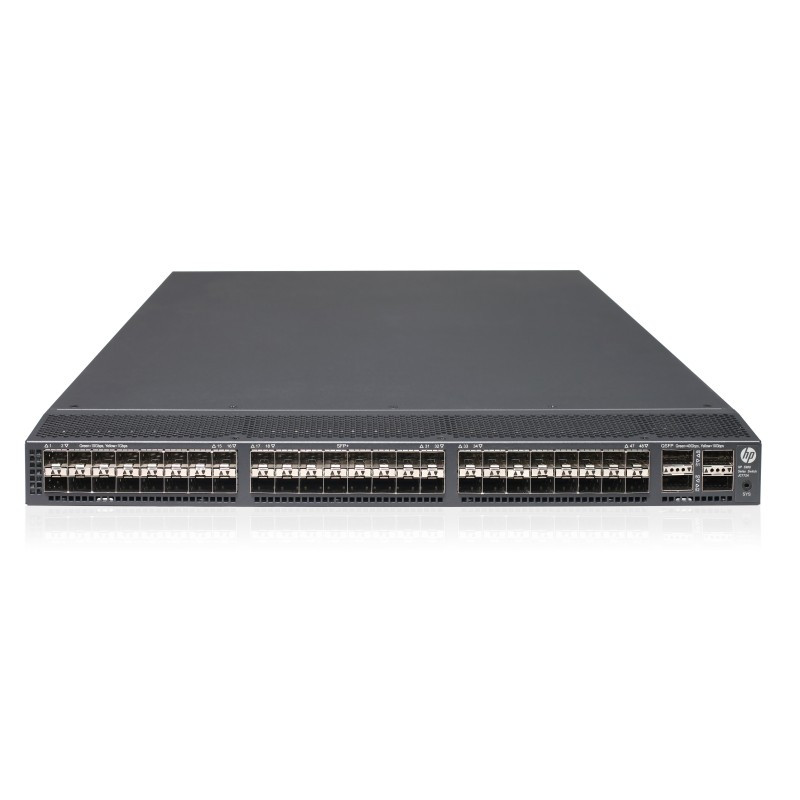

Hewlett Packard Enterprise 5900AF-48XG-4QSFP F-B Bundle
5900AF-48XG-4QSFP F-B Bundle
The HP 5900 Switch Series are low-latency 1/10GbE data center top-of-rack (ToR) switches. Perfect for deployment at server access layer in large and medium sized enterprises.
These switches may also be used in campus core/distribution layers where higher performance 40GbE connectivity is required with 10GbE links. Virtualized applications and server-to-server traffic require ToR switches that meet the needs for higher-performance server connectivity, convergence, virtual environment support, and low-latency.
Optional Intelligent Management Center (IMC) Software Platform for network management.
What's new
- High 1/10GbE port density with ultrafast latency for demanding applications.
- 10/100/1000/10000BASE-T and fiber support for data center deployments.
- IRF support of nine switches simplifies management by up to 88%.
- OpenFlow and SDN automate manual tasks and speed service delivery.
- One license for all OS features, including L3 and FCoE support.
Features
Ultra-low-latency and Wire Speed for Demanding Applications
- The HP 5900 Switch Series provides high density 10/100/100/10000BASE-T, or fiber ports for high-performance and flexible deployments
- All ports support full L2/L3 features, IPv4/IPv6 dual stack, OpenFlow and TRILL for high scalability and Software-defined Networking (SDN) support.
- Intelligent Resilient Fabric (IRF) for simpler management, faster re-convergence and business agility.
High-Performance Data Center Switching
- The HP 5900 Switch Series delivers 1.28 Tbps switching capacity for the most demanding applications.
- Supports up to 952 MPPS throughput for data intensive environments.
- Low latency, under a 1.5 us 10GbE latency, provides increased performance.
- Four 40GbE QSFP+ ports for blazing fast uplinks.
Increased Resilience with Comware
- The HP 5900 Switch Series delivers IRF < 50 msec convergence time enabling faster application response times.
- In Service Software Update (ISSU) enables high availability with updates accomplished without a reboot or power cycle, and is performed in the background.
Simplicity and Lower TCO
- The HP 5900 Switch Series simplifies switch management by up to 88% with IRF.
- No extra hidden cost with simple one license per switch for all operating system features.
- Automate tedious tasks with SDN and reclaim wasted resources.
These switches may also be used in campus core/distribution layers where higher performance 40GbE connectivity is required with 10GbE links. Virtualized applications and server-to-server traffic require ToR switches that meet the needs for higher-performance server connectivity, convergence, virtual environment support, and low-latency.
Optional Intelligent Management Center (IMC) Software Platform for network management.
What's new
- High 1/10GbE port density with ultrafast latency for demanding applications.
- 10/100/1000/10000BASE-T and fiber support for data center deployments.
- IRF support of nine switches simplifies management by up to 88%.
- OpenFlow and SDN automate manual tasks and speed service delivery.
- One license for all OS features, including L3 and FCoE support.
Features
Ultra-low-latency and Wire Speed for Demanding Applications
- The HP 5900 Switch Series provides high density 10/100/100/10000BASE-T, or fiber ports for high-performance and flexible deployments
- All ports support full L2/L3 features, IPv4/IPv6 dual stack, OpenFlow and TRILL for high scalability and Software-defined Networking (SDN) support.
- Intelligent Resilient Fabric (IRF) for simpler management, faster re-convergence and business agility.
High-Performance Data Center Switching
- The HP 5900 Switch Series delivers 1.28 Tbps switching capacity for the most demanding applications.
- Supports up to 952 MPPS throughput for data intensive environments.
- Low latency, under a 1.5 us 10GbE latency, provides increased performance.
- Four 40GbE QSFP+ ports for blazing fast uplinks.
Increased Resilience with Comware
- The HP 5900 Switch Series delivers IRF < 50 msec convergence time enabling faster application response times.
- In Service Software Update (ISSU) enables high availability with updates accomplished without a reboot or power cycle, and is performed in the background.
Simplicity and Lower TCO
- The HP 5900 Switch Series simplifies switch management by up to 88% with IRF.
- No extra hidden cost with simple one license per switch for all operating system features.
- Automate tedious tasks with SDN and reclaim wasted resources.
Data sheet
- 10G support
- Yes
- AC input frequency
- 50/60 Hz
- AC input voltage
- 100-240 V
- Colour of product
- Grey
- Depth
- 659.9 mm
- DHCP client
- Yes
- DHCP server
- Yes
- Flash memory
- 96 MB
- Height
- 43.7 mm
- Internal memory
- ≈ 5,000 Cat 8 with plots; ≈ 12,000 Cat 6A with plots
- Latency (10 Gbps)
- 1.5 µs
- MAC address table
- 96000 entries
- Memory type
- SDRAM
- Networking standards
- IEEE 802.1ab,IEEE 802.1D,IEEE 802.1p,IEEE 802.1Q,IEEE 802.1s,IEEE 802.1w,IEEE 802.3ad,IEEE 802.3ae
- Operating relative humidity (H-H)
- 10 - 90 %
- Packet buffer memory
- 9 MB
- Power consumption (typical)
- 260 W
- Power over Ethernet (PoE) support
- No
- Source data-sheet
- Icecat.biz
- Switch layer
- L7
- Switching capacity
- 1280 Gbit/s
- Throughput
- 952 Mpps
- Weight
- 13000 g
- Width
- 439.9 mm
Specific References
- EAN13
- 0887758996799
