HP FlexFabric 10Gb 2-port 534FLR-SFP+ FIO

Hewlett Packard Enterprise FlexFabric 10Gb 2-port 534FLR-SFP+ FIO

FlexFabric 10Gb 2-port 534FLR-SFP+ FIO, Broadcom BCM57810S, 256MB, PCI-e 2.0 x8
Out of Stock
Reference: 700752-B21

Require Project Pricing?

Click here to email your parts list and we will send you a quote

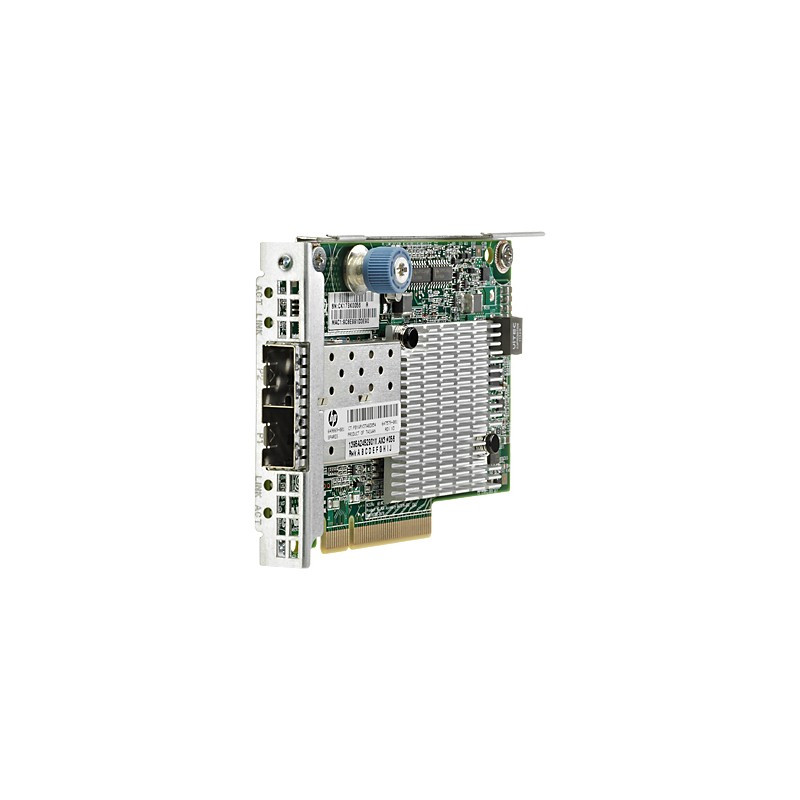

The HP FlexFabric 10Gb 2-port 534FLR adapter features the next generation of 10Gb Ethernet offering in a single chip solution on a FlexibleLOM form factor, further reducing power requirements for 2 ports of 10Gb Ethernet. It is designed for use with HP ProLiant Gen8 servers.

For more effective utilization of the 10GbE bandwidth, the HP 534FLR-SFP+ CNA offers Switch Independent Partitioning which enables segmentation of each 10GbE port into four virtual ports, with flexible allocation of bandwidth to each port. Allowing IT organizations to improve resource utilization while lowering infrastructure and operational costs. The HP 534FLB supports enterprise class features such as VLAN tagging, adaptive interrupt coalescing, MSI-X, NIC teaming (bonding), Receive Side Scaling (RSS), jumbo frames and PXE boot. It also supports virtualization features such as SR-IOV (Windows), VMware NetQueue and Microsoft VMQ.

Data sheet

Chipset
Broadcom BCM57810S
Compatibility
Server
Connectivity technology
Wired
Data transfer rate (max)
10000 Mbit/s
Fiber optic connector
SFP+
Host interface
PCI-E
Interface
Fiber
Internal memory
≈ 5,000 Cat 8 with plots; ≈ 12,000 Cat 6A with plots
Networking standards
IEEE 802.1Q,IEEE 802.3,IEEE 802.3ad,IEEE 802.3ae,IEEE 802.3x
Operating relative humidity (H-H)
5 - 95 %
Operating temperature (T-T)
8 - 35 °C
Power consumption (typical)
9W
Source data-sheet
Icecat.biz
Weight
VFD and cable: 36.6 lb; Pole (each): 50.7 oz; Base: 66.1 lb (VFD and cable: 1.29 lb; Pole (each): 1.79 oz; Base: 2.33 lb)

Specific References

EAN13
0887758480090
