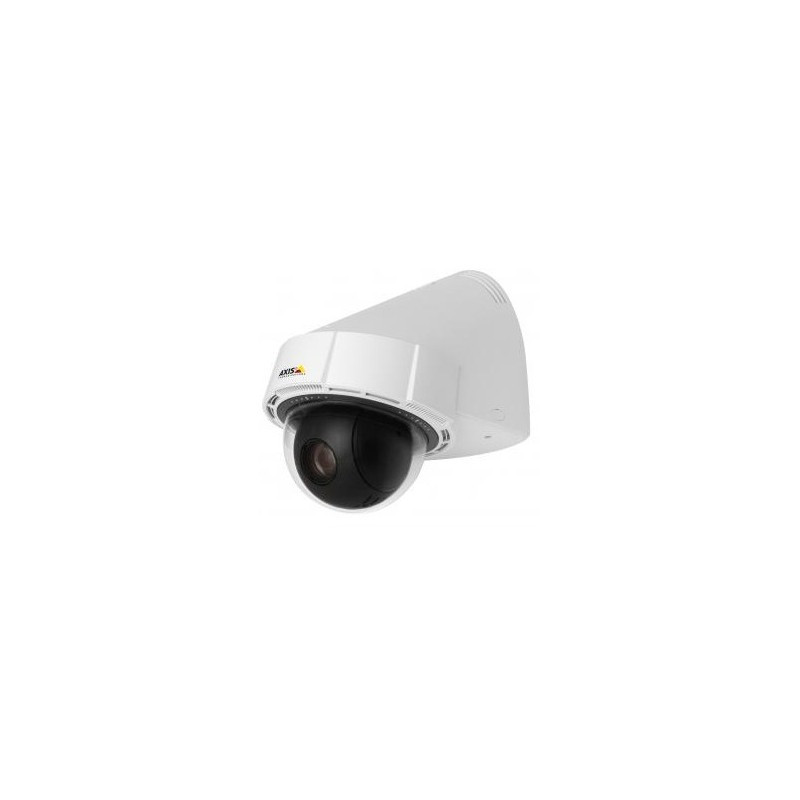

Axis P5414-E
P5414–E Dome Network Camera, CMOS, HDTV, 720p, 18x zoom
- Outdoor wall-mount design for easy installation
- Repaintable, integrated sunshield
- Durable, low maintenance mechanics
- HDTV 720p performance
- Two-way audio & input/output ports
Designed to blend in
AXIS P5414–E PTZ Dome Network Camera is an attractively priced, outdoor-ready HDTV 720p PTZ dome with 18x optical zoom for wall-mount surveillance installations. Designed to blend in with the environment, the camera is ideal for use in city and perimeter surveillance, parking houses and school yards.
The camera’s built-in wall bracket enables easy installation and lowers total installation costs since a separate mounting accessory is not required. The integrated sunshield can be easily removed and repainted to match the color of a building façade. The sloping form helps the camera resist attempts by vandals to pull it down with a rope.
Durable, low-maintenance mechanics
AXIS P5414–E’s innovations extend inside as well. It has a direct drive pan/tilt system that enables unsurpassed endurance. With no belts or gears, AXIS P5414–E is a reliable, low-maintenance PTZ camera.
Detailed zoomed-in views
The 18x optical zoom with autofocus, in combination with the HDTV 720p resolution, provides highly detailed zoomed-in views. In low light or night-time conditions, the camera’s automatic day/night functionality enables it to make use of infrared light from available light sources to produce high quality black and white video.
Images from AXIS P5414-E. Left: wide view. Right: 18x zoomed-in view where the license plate of a vehicle 200 m (660 ft.) away can be read. Click to enlarge images.
When mounted on the corner of a building, AXIS P5414–E enables a 270° pan for wide area coverage. Support for Advanced Gatekeeper enables the camera to automatically pan, tilt and zoom in to a preset position when motion is detected in a predefined area.
Two-way audio & I/Os
The camera has a hidden junction box that supports two-way audio, a memory card slot, four configurable inputs/outputs to external devices, and the option of using either 24 V DC or Power over Ethernet Plus (IEEE 802.3at).
- Repaintable, integrated sunshield
- Durable, low maintenance mechanics
- HDTV 720p performance
- Two-way audio & input/output ports
Designed to blend in
AXIS P5414–E PTZ Dome Network Camera is an attractively priced, outdoor-ready HDTV 720p PTZ dome with 18x optical zoom for wall-mount surveillance installations. Designed to blend in with the environment, the camera is ideal for use in city and perimeter surveillance, parking houses and school yards.
The camera’s built-in wall bracket enables easy installation and lowers total installation costs since a separate mounting accessory is not required. The integrated sunshield can be easily removed and repainted to match the color of a building façade. The sloping form helps the camera resist attempts by vandals to pull it down with a rope.
Durable, low-maintenance mechanics
AXIS P5414–E’s innovations extend inside as well. It has a direct drive pan/tilt system that enables unsurpassed endurance. With no belts or gears, AXIS P5414–E is a reliable, low-maintenance PTZ camera.
Detailed zoomed-in views
The 18x optical zoom with autofocus, in combination with the HDTV 720p resolution, provides highly detailed zoomed-in views. In low light or night-time conditions, the camera’s automatic day/night functionality enables it to make use of infrared light from available light sources to produce high quality black and white video.
Images from AXIS P5414-E. Left: wide view. Right: 18x zoomed-in view where the license plate of a vehicle 200 m (660 ft.) away can be read. Click to enlarge images.
When mounted on the corner of a building, AXIS P5414–E enables a 270° pan for wide area coverage. Support for Advanced Gatekeeper enables the camera to automatically pan, tilt and zoom in to a preset position when motion is detected in a predefined area.
Two-way audio & I/Os
The camera has a hidden junction box that supports two-way audio, a memory card slot, four configurable inputs/outputs to external devices, and the option of using either 24 V DC or Power over Ethernet Plus (IEEE 802.3at).
Data sheet
- Built-in hard drive
- No
- Cabling technology
- 10/100Base-T(X)
- Camera shutter speed
- 1/28000 - 2 s
- Camera shutter type
- Electronic
- Colour of product
- White
- Compatible memory cards
- SD, SDHC, SDXC
- Connectivity technology
- Wired
- Day/night mode
- Yes
- Digital zoom
- 12 x
- Flash memory
- 96 MB
- Frame rate
- 9 fps
- Interface
- XFP
- Internal memory
- ≈ 5,000 Cat 8 with plots; ≈ 12,000 Cat 6A with plots
- Maximum resolution
- 1280 x 720 pixels
- Minimum illumination
- 0.04 lx
- Mounting type
- Wall/Desk
- Operating temperature (T-T)
- -20 - 50 °C
- Optical sensor size
- 1/2.9 "
- Pan range
- 135 - 135 °
- Placement supported
- Universal
- Power over Ethernet (PoE) support
- Yes
- Progressive scan
- Yes
- PTZ control (Pan/Tilt/Zoom)
- Yes
- Sensor type
- Ultrasonic sensor
- Source data-sheet
- Icecat.biz
- Supported graphics resolutions
- 240 x 135, 1280 x 720 (HD 720)
- Supported network protocols
- IPv4/v6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMPv1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS
- Supported video modes
- 720p
- Tilt angle
- 0 - 90 °
- Type
- IP
- Video formats supported
- H.264, M-JPEG
- Weight
- 3500 g
- White balance
- Sodium lamp,Auto,Fluorescent,Halogen,Manual
Specific References
- EAN13
- 7331021006539
