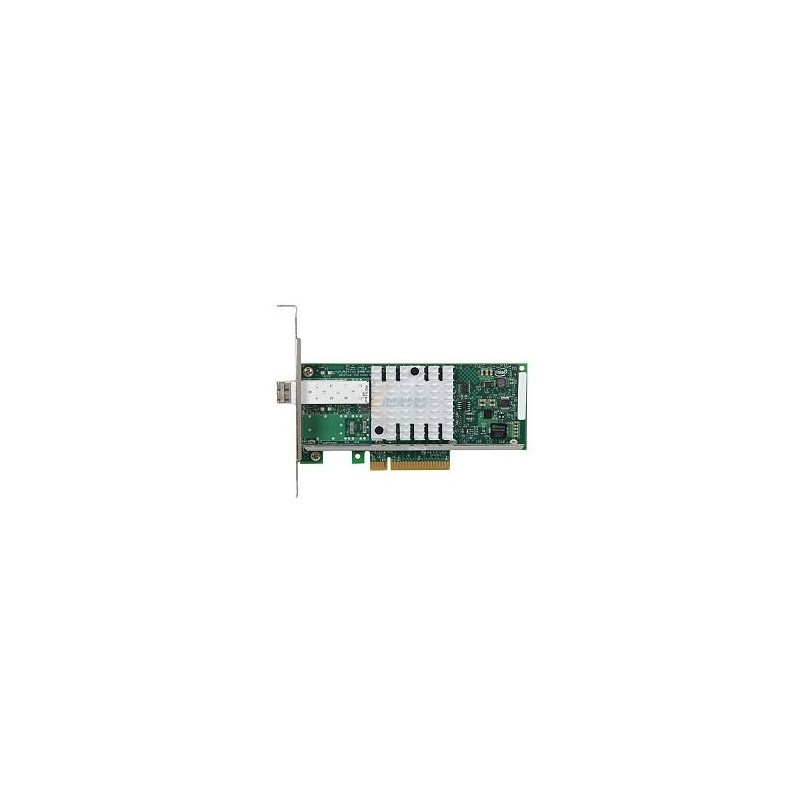

Intel X520-SR1
Ethernet Server Adapter X520-SR1
Intel’s new family of Intel® Ethernet X520 Server Adapters are the most flexible and scalable Ethernet adapters for today’s demanding data center environments.
The Intel® Ethernet X520 Server Adapter family addresses the demanding needs of the next-generation data center by providing unmatched features for virtualization, flexibility for LAN and SAN networking, and proven, reliable performance.
Features and benefits
-
Intel® 82599 10 Gigabit Ethernet Controller
Industry-leading, energy-efficient design for next-generation 10 Gigabit performance and multi-core processors;
-
Low-profile
Enables higher bandwidth and throughput from standard and low-profile PCIe slots and servers;
-
Load balancing on multiple CPUs
Increases performance on multi-processor systems by efficiently balancing network loads across
CPU cores when used with Receive-Side Scaling (RSS) from Microsoft or Scalable I/O on Linux*;
-
iSCSI remote boot support
Provides centralized storage area network (SAN) management at a lower cost than other iSCSI solutions;
-
Support for most network operating systems (NOS)
Enables widespread deployment;
-
RoHS-compliant2
Complies with the European Union directive 2002/95/EC to reduce the use of hazardous materials;
-
Intel® PROSet utility for Microsoft Windows* Device Manager
Provides point-and-click management of individual adapters, advanced adapter features, connection
teaming, and virtual local area network (VLAN) configuration;
-
Time Sync (IEEE 1588, 802.1as)
Lets networked Ethernet equipment synchronize internal clocks according to a network master clock;
endpoint can then acquire an accurate estimate of the master time by compensating for link latency;
The Intel® Ethernet X520 Server Adapter family addresses the demanding needs of the next-generation data center by providing unmatched features for virtualization, flexibility for LAN and SAN networking, and proven, reliable performance.
Features and benefits
-
Intel® 82599 10 Gigabit Ethernet Controller
Industry-leading, energy-efficient design for next-generation 10 Gigabit performance and multi-core processors;
-
Low-profile
Enables higher bandwidth and throughput from standard and low-profile PCIe slots and servers;
-
Load balancing on multiple CPUs
Increases performance on multi-processor systems by efficiently balancing network loads across
CPU cores when used with Receive-Side Scaling (RSS) from Microsoft or Scalable I/O on Linux*;
-
iSCSI remote boot support
Provides centralized storage area network (SAN) management at a lower cost than other iSCSI solutions;
-
Support for most network operating systems (NOS)
Enables widespread deployment;
-
RoHS-compliant2
Complies with the European Union directive 2002/95/EC to reduce the use of hazardous materials;
-
Intel® PROSet utility for Microsoft Windows* Device Manager
Provides point-and-click management of individual adapters, advanced adapter features, connection
teaming, and virtual local area network (VLAN) configuration;
-
Time Sync (IEEE 1588, 802.1as)
Lets networked Ethernet equipment synchronize internal clocks according to a network master clock;
endpoint can then acquire an accurate estimate of the master time by compensating for link latency;
Data sheet
- Built-in processor
- Intel 82599
- Cable type
- MMF up to 300m
- Certification
- FCC B, UL, CE, VCCI, BSMI, CTICK, KCC
- Compatibility
- Server
- Compatible operating systems
- Windows Server 2012 R2*, Windows Server 2012*, Windows 8*, Windows Server 2008 R2*, Windows 7*, Windows Server 2008* SP2, Windows Vista* SP2, Windows Server 2003 R2*, Windows Server 2003* SP2, Linux* Stable Kernel version 3.x, 2.6,x, Red Hat Enterprise Li
- Connectivity technology
- Wired
- Data transfer rate
- 10 Gbit/s
- Data transfer rate (max)
- 10000 Mbit/s
- Fiber optic connector
- XFP
- Host interface
- PCI-E
- Interface
- Fiber
- Interface type
- PCIe v2.0 (5.0GT/s)
- Networking standards
- IEEE 802.1p,IEEE 802.1Q,IEEE 802.3,IEEE 802.3ad,IEEE 802.3ae
- Operating temperature (T-T)
- 8 - 35 °C
- Source data-sheet
- Icecat.biz
- Storage temperature (T-T)
- 8 - 85 °C
- Width
- 145.5 mm
- Message signal interrupt
- Yes
Specific References
- EAN13
- 0735858260787
Ethernet Server Adapter X520-SR1
