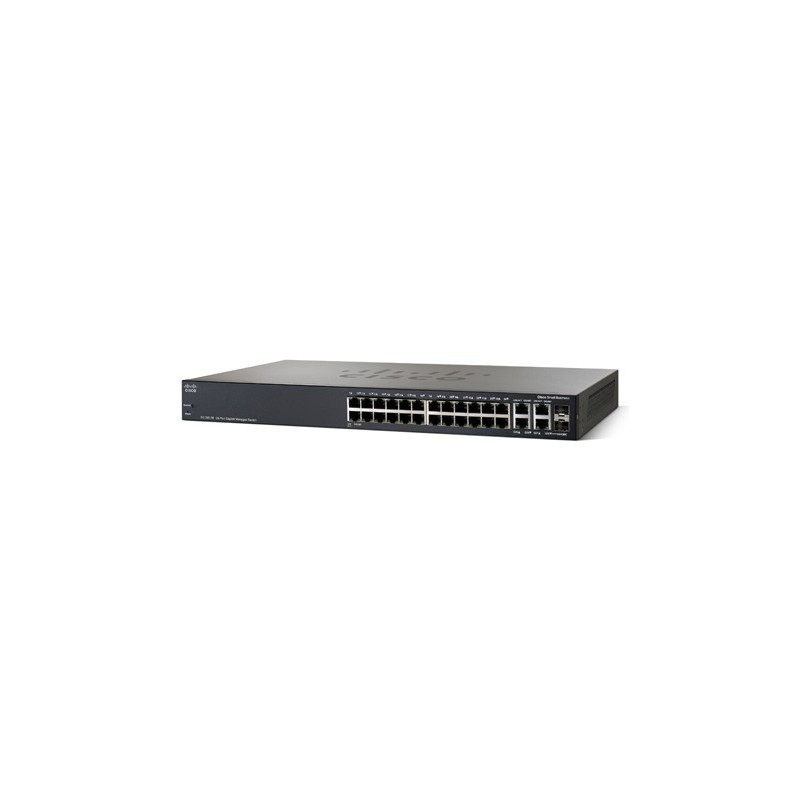

Cisco SG300-28
SG300-28, 26x RJ-45 10/100/1000 Mbit/s, 2x mini-GBIC (Combo SFP), IPv6, QoS
The Cisco SG300-28 switch is an affordable 28-port managed Gigabit (10/100/1000) switch, including two combination mini-GBIC ports, that delivers the performance required for high-bandwidth applications. It offers the security and advanced network features needed to support business-class data, voice, security, and wireless solutions. With energy-saving technology, the switch optimizes power use to help protect the environment and reduce energy costs without compromising performance. It is easy to configure and manage with intuitive browser-based tools and is offered with a limited lifetime warranty, including next business day advance replacement and one year of technical support. The Cisco SG300-28 provides the ideal combination of affordability, performance, and capabilities in a switch designed specifically for small businesses.
Data sheet
- 10G support
- No
- Authentication method
- RADIUS, MD5
- Basic switching RJ-45 Ethernet ports quantity
- 28
- Certification
- UL (UL 60950), CSA (CSA 22.2), CE, FCC 15 (CFR 47) A
- Colour of product
- Black
- Connectivity technology
- Wired
- DHCP client
- Yes
- DHCP server
- Yes
- Dimensions (WxDxH)
- 440 x 257 x 44.45 mm
- Flash memory
- 96 MB
- Heat dissipation
- 103.4 BTU/h
- Internal memory
- ≈ 5,000 Cat 8 with plots; ≈ 12,000 Cat 6A with plots
- MAC address table
- 96000 entries
- Management protocols
- SNMP 1/2c/3, RMON, HTTP/HTTPS, TFTP, DHCP, SSH, RADIUS, BOOTP, SNTP
- Maximum data transfer rate
- 96 Gbit/s
- Mean time between failures (MTBF)
- 179141 h
- Minimum system requirements
- Mozilla Firefox 2.5, Microsoft Internet Explorer 6
- Networking features
- Yes
- Networking standards
- IEEE 802.1s,IEEE 802.1w,IEEE 802.1X,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3at,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
- Non-operating relative humidity (non-condensing)
- 10 - 90 %
- Number of VLANs
- 8000
- Operating relative humidity (H-H)
- 10 - 90 %
- Operating temperature (T-T)
- 8 - 35 °C
- Power consumption (typical)
- 30.1 W
- Power over Ethernet (PoE) support
- No
- Power requirements
- AC 100-240V@47-63Hz
- Power supply type
- AC
- Source data-sheet
- Icecat.biz
- Stackable
- No
- Storage temperature (T-T)
- 8 - 85 °C
- Supported data transfer rates
- x1 115.2 Kbits/sec., x2 230.4 Kbits/sec., x4 460.9 Kbits/sec
- Switch layer
- L7
- Switching capacity
- 993.6 Gbps
Specific References
- EAN13
- 0882658296000
SG300-28, 26x RJ-45 10/100/1000 Mbit/s, 2x mini-GBIC (Combo SFP), IPv6, QoS
