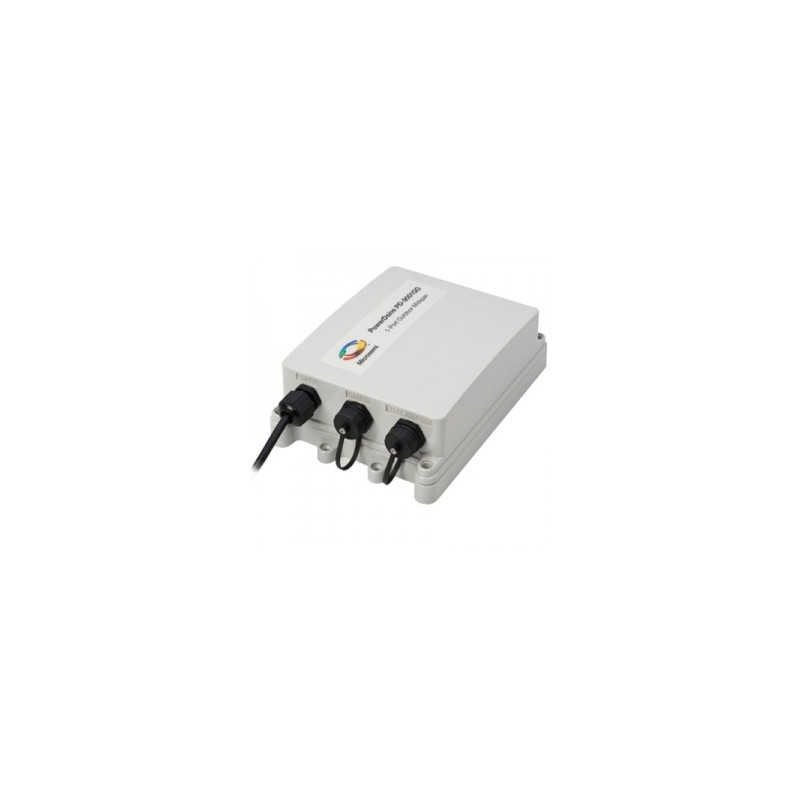

Axis T8123-E
T8123-E Outdoor Midspan 30w
Axis network video compatibility
The midspans and splitters conform to the IEEE 802.3at for powering devices with high power requirements on a network. The midspans are also IEEE 802.3af compliant, which means that they can be used with all Axis network video products with built-in PoE support.
The function of a midspan is to inject power into a network cable. A splitter, which separates data and power coming over an Ethernet cable, is used for a network video product without built-in support for PoE.
Outdoor-ready from -40 °C to 65 °C
The outdoor-ready midspans are IP66- and NEMA 4X-rated, with extended temperature range from -40 °C to 65 °C (-40 °F to 149 °F) at certain output power. AXIS T8123-E and AXIS T8124-E also offer surge protection for both the AC and the PoE ports ensuring the indoor equipment is protected from outdoor surges. Thanks to the IP66-rated RJ-45 connectors, the installer does not have to open the outdoor midspan, just connect the mains cable and the network video produc
The midspans and splitters conform to the IEEE 802.3at for powering devices with high power requirements on a network. The midspans are also IEEE 802.3af compliant, which means that they can be used with all Axis network video products with built-in PoE support.
The function of a midspan is to inject power into a network cable. A splitter, which separates data and power coming over an Ethernet cable, is used for a network video product without built-in support for PoE.
Outdoor-ready from -40 °C to 65 °C
The outdoor-ready midspans are IP66- and NEMA 4X-rated, with extended temperature range from -40 °C to 65 °C (-40 °F to 149 °F) at certain output power. AXIS T8123-E and AXIS T8124-E also offer surge protection for both the AC and the PoE ports ensuring the indoor equipment is protected from outdoor surges. Thanks to the IP66-rated RJ-45 connectors, the installer does not have to open the outdoor midspan, just connect the mains cable and the network video produc
Data sheet
- AC adapter input voltage
- 100 - 240 V
- Cabling technology
- 10/100/1000BaseT(X)
- Certification
- FCC part 15, Class B with FTP cabling, EN 55022\nClass B, EN 55024, EN 61000-4-5 Class 5\n(6kV CM), VCCI, ICES-003, KCC, C-tick, CQC,\nUL 60950-1, UL 60950-22 (UL/cUL), GS Mark, CB, KC, S-mark, IEC 60529 IP66, NEMA 250 Type 4X,\nASTM B-117, GR-1089-CORE,
- Compliance industry standards
- IEEE 802.3af, IEEE 802.3at
- Dimensions (WxDxH)
- 70 x 150 x 214 mm
- Electromagnetic compatibility
- IP66
- Operating relative humidity (H-H)
- 10 - 100 %
- Operating temperature (T-T)
- -40 - 85 °C
- Power consumption (typical)
- 30 W
- Power over Ethernet (PoE) support
- Yes
- Safety
- FCC
- Source data-sheet
- Icecat.biz
- Storage temperature (T-T)
- 8 - 85 °C
- Weight
- 1000 g
Specific References
- EAN13
- 7331021002173
T8123-E Outdoor Midspan 30w
