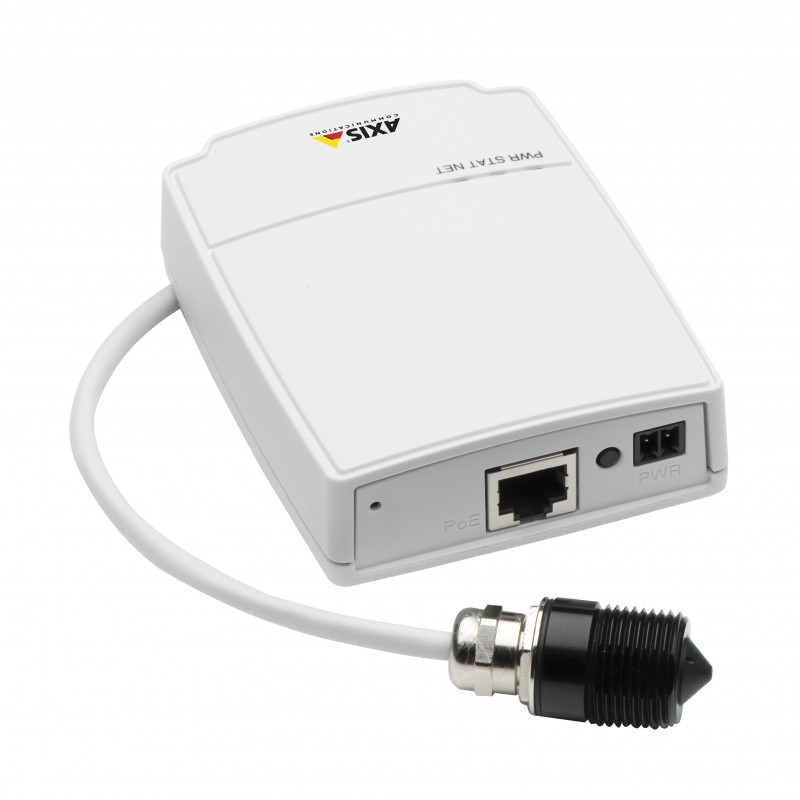

Axis P1214
1/4" CMOS, 1280 x 720, H.264/M-JPEG, PoE
- Functional and extremely discreet design
- Easy and flexible installation
- HDTV 720p
- Edge storage
- Multiple H.264 streams
- Power over Ehternet
Unique design concept
The unique form factor and small size of the sensor unit, enables flush mounting at places where a concealed application is required. AXIS P1214 is ideal for indoor compact and covert surveillance in stores, architectural buildings, hotels, offices, banks and ATMs.
Compact and covert installations
The innovative design concept of AXIS P1214 comprises a main unit and a separate sensor unit, enabling it to be mounted up to 8 meters (26ft.) apart.
AXIS P1214 can easily be mounted behind any wall, with just a small opening for the lens, or with the whole lens protruding from the wall. The camera include various mounting accessories enabling quick and easy installation.
HDTV 720p
The exceptionally discreet, miniature AXIS P1214 Network Camera provides full frame rate HDTV 720p (1280x720 pixels) video in H.264 and Motion JPEG.
More features
- Power over Ethernet (IEEE 802.3af), eliminating the need for power cables and reducing installation costs
- Intelligent capabilities such as enhanced video motion detection and detection of camera tampering attempts like blocking or spray-painting
- Advanced security and network management features such as HTTPS encryption with preserved performance, IPv6 and Quality of Service
- Easy and flexible installation
- HDTV 720p
- Edge storage
- Multiple H.264 streams
- Power over Ehternet
Unique design concept
The unique form factor and small size of the sensor unit, enables flush mounting at places where a concealed application is required. AXIS P1214 is ideal for indoor compact and covert surveillance in stores, architectural buildings, hotels, offices, banks and ATMs.
Compact and covert installations
The innovative design concept of AXIS P1214 comprises a main unit and a separate sensor unit, enabling it to be mounted up to 8 meters (26ft.) apart.
AXIS P1214 can easily be mounted behind any wall, with just a small opening for the lens, or with the whole lens protruding from the wall. The camera include various mounting accessories enabling quick and easy installation.
HDTV 720p
The exceptionally discreet, miniature AXIS P1214 Network Camera provides full frame rate HDTV 720p (1280x720 pixels) video in H.264 and Motion JPEG.
More features
- Power over Ethernet (IEEE 802.3af), eliminating the need for power cables and reducing installation costs
- Intelligent capabilities such as enhanced video motion detection and detection of camera tampering attempts like blocking or spray-painting
- Advanced security and network management features such as HTTPS encryption with preserved performance, IPv6 and Quality of Service
Data sheet
- Built-in hard drive
- No
- Bundled software
- AXIS Camera Station
- Cabling technology
- 10/100Base-T(X)
- Camera shutter speed
- 1/24500 - 1/6 s
- Camera shutter type
- Electronic
- Card reader integrated
- Yes
- Certification
- EN 55022 B, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 55024, FCC 15 B B, ICES-003 B, VCCI B, C-tick AS/NZS CISPR 22, KCC B, EN/IEC 60950-1, IEC 60068-2-6 4M4, IEC 60068-2-27 M3, IEC 60068-2-1. IEC 60068-2-2, 60068-2-78 3K3, IEC 60529: IP20
- Colour of product
- Black, White
- Compatible memory cards
- SD, SDHC
- Compatible operating systems
- Windows 7, Windows Vista, Windows XP, Windows Server 2008, Windows Server 2003
- Connectivity technology
- Wired
- Data transfer rate
- 100 Mbit/s
- DC-in jack
- Yes
- Depth
- 103 mm
- Flash memory
- 96 MB
- Form factor
- covert
- Height
- 990mm
- Housing material
- Polycarbonate
- Interface
- XFP
- Internal memory
- ≈ 5,000 Cat 8 with plots; ≈ 12,000 Cat 6A with plots
- International Protection (IP) code
- IPX8
- Maximum resolution
- 1280 x 720 pixels
- Minimum illumination
- 1.2 lx
- Mounting type
- Wall/Ceiling
- Operating temperature (T-T)
- -20 - 50 °C
- Optical sensor size
- 1/4 "
- Placement supported
- Universal
- Power consumption (typical)
- 9W
- Power over Ethernet (PoE) support
- Yes
- Power requirements
- 8 - 28 VDC / IEEE 802.3af
- PTZ control (Pan/Tilt/Zoom)
- No
- Rotation
- 270 °
- Security algorithms
- WPS,WPS-PBC,WPA,WPS-PIN,WPA2
- Sensor type
- Ultrasonic sensor
- Source data-sheet
- Icecat.biz
- Supported graphics resolutions
- 1280 x 720 (HD 720)
- Supported network protocols
- IPv4/v6, HTTP, HTTPS, QoS Layer 3 DiffServ, FTP, SMTP, Bonjour, UPnP, SNMPv1/v2c/v3(MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS
- Supported video modes
- 720p
- Type
- IP
- Video formats supported
- H.264, M-JPEG, MPEG4
- Viewing angle, horizontal
- 57 °
Specific References
- EAN13
- 7331021004016
1/4" CMOS, 1280 x 720, H.264/M-JPEG, PoE
