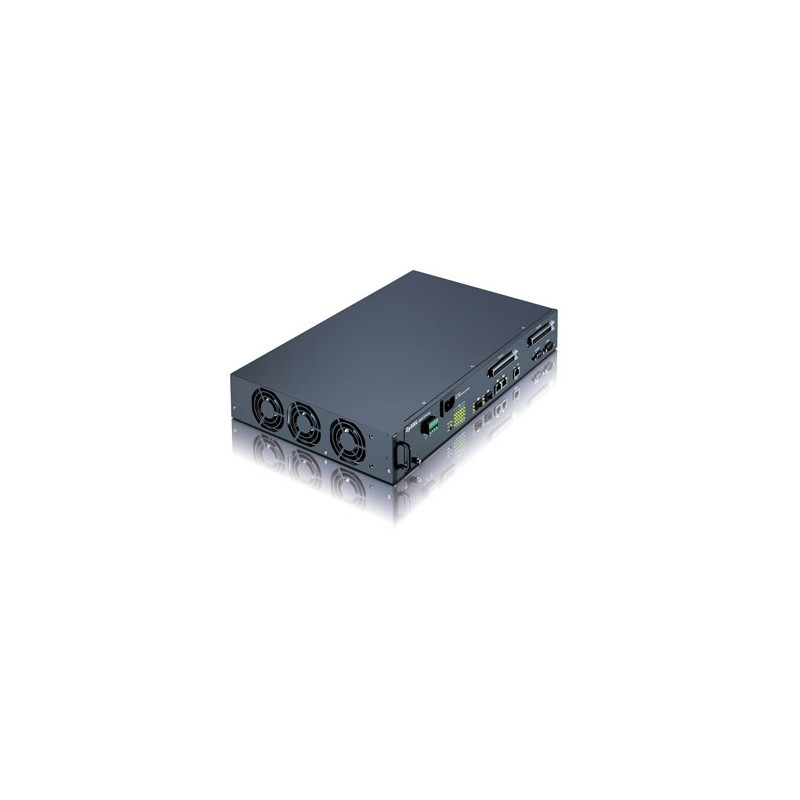

ZyXEL VES1724-56
24-port Temperature-Hardened VDSL2 Box DSLAM, 19” rack mountable, 1U, 16K MAC addresses, 10.36 lb
Compact and Full-featured VDSL2 Technology
Compliant with ITU-T G.993.2, G994.1 and G.997.1
The VES1724 conforms to G.993.2, G994.1 and G.997.1 to ensure the interoperability with standard-compliant VDSL CPE.
Ultra high-speed transmission with 30a profile support
The VES1724 supports 30a profile with 100 Mbps in both upstream and downstream traffics. With two Gigabit combo ports to connect upper layer aggregation networks, the VES1724 can support low-concentration interconnection from the subscriber ports to the network interface ports.
Triple Play ready
The VES1724 supports IGMP snooping to prevent unnecessary forwarding of multicast traffic to all subscribers and thus optimizes bandwidth utilization for multicast applications such as broadcast video. The VES1724 also supports the multicast VLAN feature that distributes the source to all the VLANs requesting the video stream. With a built-in splitter over POTS, the VES1724 allows the operators to provide Triple Play services over the same copper wire.
Complete QoS for service differentiation
The VES1724 supports not only 802.1X port-based access control for subscriber authentication, but also defines a limited number of MAC addresses that can access the network from a particular port. With rate limiting on the subscriber ports allowing services to take advantage of 64 Kbps increments, service providers will be in a better position to offer tiered services.
Compliant with ITU-T G.993.2, G994.1 and G.997.1
The VES1724 conforms to G.993.2, G994.1 and G.997.1 to ensure the interoperability with standard-compliant VDSL CPE.
Ultra high-speed transmission with 30a profile support
The VES1724 supports 30a profile with 100 Mbps in both upstream and downstream traffics. With two Gigabit combo ports to connect upper layer aggregation networks, the VES1724 can support low-concentration interconnection from the subscriber ports to the network interface ports.
Triple Play ready
The VES1724 supports IGMP snooping to prevent unnecessary forwarding of multicast traffic to all subscribers and thus optimizes bandwidth utilization for multicast applications such as broadcast video. The VES1724 also supports the multicast VLAN feature that distributes the source to all the VLANs requesting the video stream. With a built-in splitter over POTS, the VES1724 allows the operators to provide Triple Play services over the same copper wire.
Complete QoS for service differentiation
The VES1724 supports not only 802.1X port-based access control for subscriber authentication, but also defines a limited number of MAC addresses that can access the network from a particular port. With rate limiting on the subscriber ports allowing services to take advantage of 64 Kbps increments, service providers will be in a better position to offer tiered services.
Data sheet
- 10G support
- No
- AC input frequency
- 60 Hz
- AC input voltage
- 100-250 V
- Auto MDI/MDI-X
- Yes
- Basic switching RJ-45 Ethernet ports quantity
- 4
- Basic switching RJ-45 Ethernet ports type
- Gigabit Ethernet (10/100/1000)
- Certification
- FCC Part 15 Class A, EN55022 Class A, ETSI300-386, RoHS, K.20, ETSI300-019
- Colour of product
- Black
- DC-in jack
- Yes
- Depth
- 250 mm
- Height
- 44.35 mm
- Input voltage
- -36 - 75 V
- MAC address table
- 256 entries
- MIB support
- MIB II, RFC1493, 2674, 1757 MIB, private MIB
- Networking standards
- IEEE 802.1D,IEEE 802.1p,IEEE 802.1Q,IEEE 802.3ad
- Operating relative humidity (H-H)
- 10 - 95 %
- Operating temperature (T-T)
- -40 - 65 °C
- Package weight
- 5300 g
- Package width
- 550 mm
- Power consumption (typical)
- 63 W
- Power over Ethernet (PoE) support
- No
- Safety
- EN60950-1, CSA60950-1,
- Source data-sheet
- Icecat.biz
- Stackable
- No
- Storage relative humidity (H-H)
- 5 - 95 %
- Storage temperature (T-T)
- 8 - 85 °C
- Ventilation fan(s)
- 3
- Weight
- 4700 g
- Width
- 993 mm
Specific References
- EAN13
- 4718937566778
