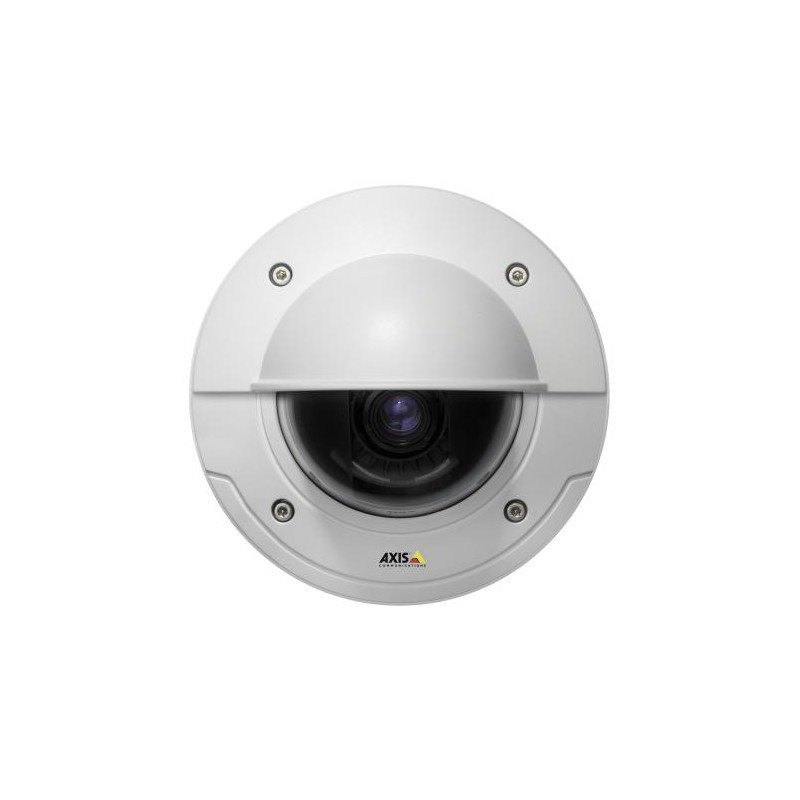

Axis P3364-VE 6mm
P3364-VE, H.264, HDTV 720p, Dome, 6 mm Lens
- Superb video in 1MP or HDTV 720p quality
- Lightfinder technology
- P-Iris control
- H.264 main profile and multiple H.264 streams
- Digital PTZ
- Easy installation with remote focus and zoom
- Outdoor-ready and vandal-resistant design
High-performance video
The AXIS P3364-VE is a 1-megapixel day and night fixed dome network camera that offers superb video performance. It delivers 30 fps in all resolutions up to HDTV 720p/1MP. The camera also supports digital pan/tilt/zoom, allowing a view area cropped from the full view to be streamed for viewing or recording. This can be used to minimize the bit rate and storage needs by optimizing the fixed viewing angle after installation, or by allowing pan, tilt and digital zoom in the view.
Lightfinder technology and P-iris control
AXIS P3364-VE integrates Axis' Lightfinder technology. The outstanding light sensitivity, with maintained colors even in very poor lighting conditions, is obtained by a combination of Axis' expertise in image processing, system-on-chip development and selection of the best optical components. The camera also supports P-Iris control, allowing the camera to precisely control the position of the iris. The iris opening is optimized for depth of field, lens resolution and light inlet, resulting in superb image quality with optimal sharpness.
Vandal-resistant and weather-proof installations
AXIS P3364-VE with its weather-proof and vandal-resistant casing, is a fixed dome perfectly adapted for harsh environments. It operates in extreme temperatures from -40° to 55° C (-40° to 131 °F), powered by standard Power over Ethernet (IEEE 802.3af) only. It is the perfect solution for video surveillance systems in areas with tough quality and efficiency requirements such as airports, city surveillance, banking, school and university campuses.
- Lightfinder technology
- P-Iris control
- H.264 main profile and multiple H.264 streams
- Digital PTZ
- Easy installation with remote focus and zoom
- Outdoor-ready and vandal-resistant design
High-performance video
The AXIS P3364-VE is a 1-megapixel day and night fixed dome network camera that offers superb video performance. It delivers 30 fps in all resolutions up to HDTV 720p/1MP. The camera also supports digital pan/tilt/zoom, allowing a view area cropped from the full view to be streamed for viewing or recording. This can be used to minimize the bit rate and storage needs by optimizing the fixed viewing angle after installation, or by allowing pan, tilt and digital zoom in the view.
Lightfinder technology and P-iris control
AXIS P3364-VE integrates Axis' Lightfinder technology. The outstanding light sensitivity, with maintained colors even in very poor lighting conditions, is obtained by a combination of Axis' expertise in image processing, system-on-chip development and selection of the best optical components. The camera also supports P-Iris control, allowing the camera to precisely control the position of the iris. The iris opening is optimized for depth of field, lens resolution and light inlet, resulting in superb image quality with optimal sharpness.
Vandal-resistant and weather-proof installations
AXIS P3364-VE with its weather-proof and vandal-resistant casing, is a fixed dome perfectly adapted for harsh environments. It operates in extreme temperatures from -40° to 55° C (-40° to 131 °F), powered by standard Power over Ethernet (IEEE 802.3af) only. It is the perfect solution for video surveillance systems in areas with tough quality and efficiency requirements such as airports, city surveillance, banking, school and university campuses.
Data sheet
- Audio formats supported
- AAC, PCM
- Built-in hard drive
- No
- Built-in microphone
- Yes
- Built-in processor
- ARTPEC-4
- Cables included
- LAN (RJ-45)
- Cabling technology
- 10/100Base-T(X)
- Camera shutter speed
- 1/24500 - 2 s
- Card reader integrated
- Yes
- Colour of product
- Black, White
- Compatible memory cards
- SD, SDHC
- Compliance industry standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3af
- Connectivity technology
- Wired
- Day/night mode
- Yes
- Depth
- 178 mm
- Flash memory
- 96 MB
- Focal length range (f-f)
- 2.5 - 6 mm
- Frame rate
- 9 fps
- Headphone outputs
- 1
- Height
- 990mm
- Interface
- XFP
- Internal memory
- ≈ 5,000 Cat 8 with plots; ≈ 12,000 Cat 6A with plots
- International Protection (IP) code
- IPX8
- Lens diameter
- 6 mm
- Maximum resolution
- 1280 x 960 pixels
- Microphone in
- Yes
- Minimum illumination
- 0.02 lx
- Optical sensor size
- 1/3 "
- Pan range
- 0 - 360 °
- Placement supported
- Universal
- Power consumption (typical)
- 12.1 W
- Power over Ethernet (PoE) support
- Yes
- PTZ control (Pan/Tilt/Zoom)
- Yes
- Rotation
- 340 °
- Security algorithms
- WPS,WPS-PBC,WPA,WPS-PIN,WPA2
- Sensor type
- Ultrasonic sensor
- Source data-sheet
- Icecat.biz
- Supported video modes
- 720p
- Tilt angle
- 0 - 170 °
- Type
- IP
- Video formats supported
- H.264, M-JPEG
- Weight
- 1500 g
Specific References
- EAN13
- 0132018158265
P3364-VE, H.264, HDTV 720p, Dome, 6 mm Lens
