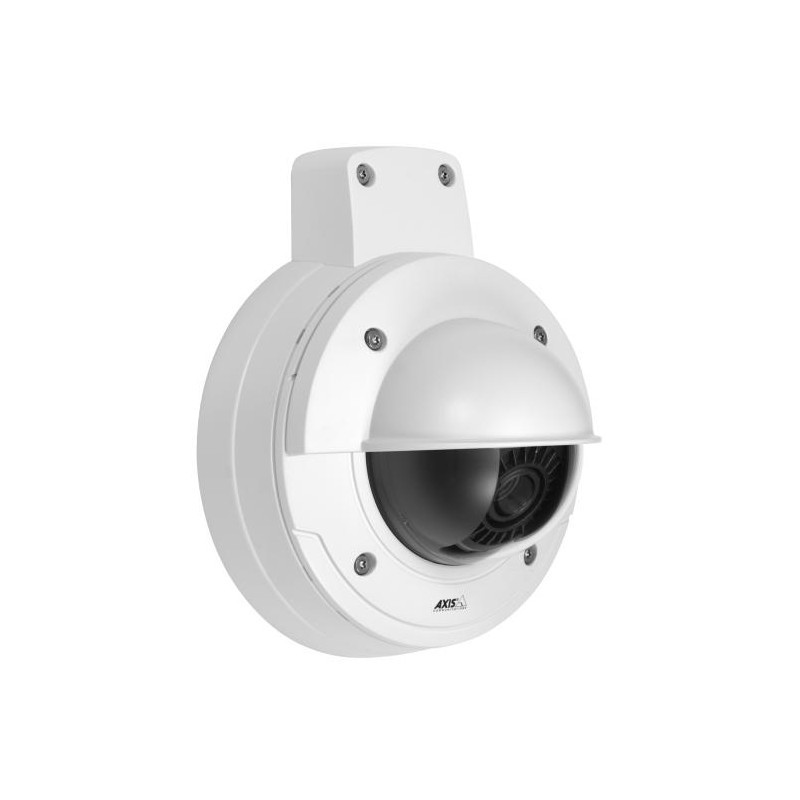

Axis P3367-VE
P3367-VE, 5MP, RGB CMOS 1/3.2", Color: 0.2 lux, B/W: 0.04 lux, F1.2, 1/28000s to 2, Two-way, Outdoor, White
- Superb video in 5MP or HDTV 1080p quality
- P-Iris control
- Multiple H.264 streams and Motion JPEG video streams
- Easy installation with remote focus and zoom
- Outdoor-ready, IP66 and NEMA 4X rating
High-performance video
The AXIS P3367-VE is a day and night fixed dome network camera that offers superb video performance. Based on Axis’ image processing technology and a very light-sensitive sensor, it provides outstanding light-sensitivity at 5 megapixel resolution.
This camera benefits from both large area overview and low-light sensitivity. It delivers full frame rate HDTV 1080p (2592x1944) in compliance with the SMPTE 274M standard in resolution, color representation, 16:9 aspect ratio and frame rate. Multiple H.264 streams, as well as Motion JPEG streams, can be provided simultaneously.
The camera also supports digital pan/tilt/zoom and multi-view streaming, where the full view and several areas cropped from the full view can be streamed simultaneously. The remote zoom and pixel counter features ensure that the camera’s angle of view is optimized for the area to be monitored and the required pixel resolution.
Advanced iris control
AXIS P3367-VE also features P-Iris, a new and revolutionary precise iris control system that provides optimal image quality in all lighting conditions. It provides images with better contrast, clarity, resolution and depth of field. Having good depth of field—where objects at different distances from the camera are in focus simultaneously—is important in the video monitoring of, for example, a long corridor or parking lot. It also features wide dynamic range and day/night functionality enable clear images both in daylight and in dark lighting conditions.
Vandal-resistant and weather-proof installations
AXIS P3367-VE with its weather-proof and vandal-resistant casing, is a fixed dome perfectly adapted for harsh environments. It operates in extreme temperatures from -40° to 55° C (-40° to 131 °F), powered by standard Power over Ethernet (IEEE 802.3af) only. It is the perfect solution for video surveillance systems in areas with tough quality and efficiency requirements such as university campuses and railway stations.
- P-Iris control
- Multiple H.264 streams and Motion JPEG video streams
- Easy installation with remote focus and zoom
- Outdoor-ready, IP66 and NEMA 4X rating
High-performance video
The AXIS P3367-VE is a day and night fixed dome network camera that offers superb video performance. Based on Axis’ image processing technology and a very light-sensitive sensor, it provides outstanding light-sensitivity at 5 megapixel resolution.
This camera benefits from both large area overview and low-light sensitivity. It delivers full frame rate HDTV 1080p (2592x1944) in compliance with the SMPTE 274M standard in resolution, color representation, 16:9 aspect ratio and frame rate. Multiple H.264 streams, as well as Motion JPEG streams, can be provided simultaneously.
The camera also supports digital pan/tilt/zoom and multi-view streaming, where the full view and several areas cropped from the full view can be streamed simultaneously. The remote zoom and pixel counter features ensure that the camera’s angle of view is optimized for the area to be monitored and the required pixel resolution.
Advanced iris control
AXIS P3367-VE also features P-Iris, a new and revolutionary precise iris control system that provides optimal image quality in all lighting conditions. It provides images with better contrast, clarity, resolution and depth of field. Having good depth of field—where objects at different distances from the camera are in focus simultaneously—is important in the video monitoring of, for example, a long corridor or parking lot. It also features wide dynamic range and day/night functionality enable clear images both in daylight and in dark lighting conditions.
Vandal-resistant and weather-proof installations
AXIS P3367-VE with its weather-proof and vandal-resistant casing, is a fixed dome perfectly adapted for harsh environments. It operates in extreme temperatures from -40° to 55° C (-40° to 131 °F), powered by standard Power over Ethernet (IEEE 802.3af) only. It is the perfect solution for video surveillance systems in areas with tough quality and efficiency requirements such as university campuses and railway stations.
Data sheet
- Audio system
- 2-way
- Built-in hard drive
- No
- Built-in microphone
- Yes
- Cabling technology
- 10/100Base-T(X)
- Camera shutter speed
- 1/28000 - 2 s
- Camera shutter type
- Electronic
- Card reader integrated
- Yes
- Colour of product
- White
- Compatible memory cards
- SD, SDHC
- Connectivity technology
- Wired
- Day/night mode
- Yes
- Focal length range (f-f)
- 2.5 - 6 mm
- Frame rate
- 12 fps
- Height
- 103.25 mm
- Interface
- XFP
- International Protection (IP) code
- IPX8
- Maximum resolution
- 2592 x 1944 pixels
- Megapixel
- 5 MP
- Minimum illumination
- 0.04 lx
- Mounting type
- Ceiling
- Operating temperature (T-T)
- 8 - 35 °C
- Optical sensor size
- 1/3.2 "
- Pan range
- 0 - 360 °
- Placement supported
- Universal
- Power over Ethernet (PoE) support
- Yes
- Progressive scan
- Yes
- PTZ control (Pan/Tilt/Zoom)
- Yes
- Sensor type
- Ultrasonic sensor
- Source data-sheet
- Icecat.biz
- Supported graphics resolutions
- 1440 x 900 (WXGA+)
- Supported network protocols
- IPv4/v6, HTTP, HTTPS**, QoS Layer 3 DiffServ, FTP, SMTP, Bonjour, UPnP, SNMPv1/v2c/v3(MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS
- Supported video modes
- 960p
- Tilt angle
- 0 - 160 °
- Video formats supported
- H.264, M-JPEG
- Weight
- VFD and cable: 36.6 lb; Pole (each): 50.7 oz; Base: 66.1 lb (VFD and cable: 1.29 lb; Pole (each): 1.79 oz; Base: 2.33 lb)
Specific References
- EAN13
- 7331021033115
