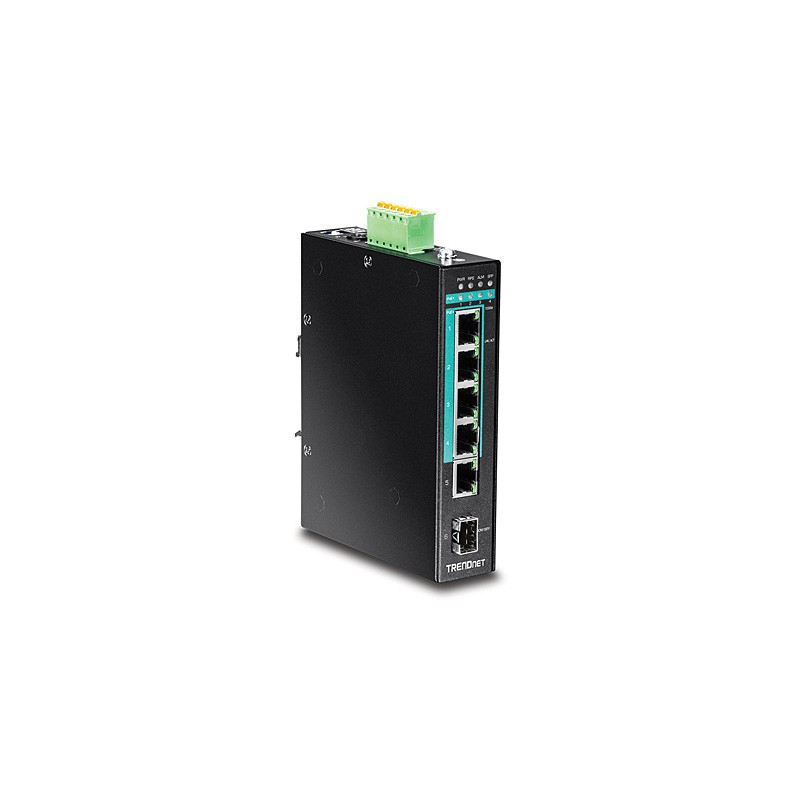

Trendnet TI-PG541 network switch
Trendnet TI-PG541, L2, Unmanaged, Gigabit Ethernet (10/100/1000), 1000BASE-T, 100BASE-TX, 10BASE-T, IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, 8000 entries
TRENDnet’s TI-PG541 is a reliable IP30 unmanaged PoE+ DIN-rail switch with hardened components rated for extreme industrial environments. It offers four Gigabit PoE+ ports (Ports 1-4, 802.3at), one Gigabit port, one SFP slot, and a full PoE power budget of 120 Watts. Dual redundant power inputs (power adapter sold separately) with overload current protection support zero downtime requirements. An alarm output can be triggered by a primary and/or redundant power failure.
Data sheet
- 10G support
- No
- AC input frequency
- 50/60 Hz
- AC input voltage
- 100-240V
- Basic switching RJ-45 Ethernet ports type
- Gigabit Ethernet (10/100/1000)
- Certification
- CE, FCC
- Colour of product
- Black
- Copper ethernet cabling technology
- Ethernet 10GBase-X
- DC-in jack
- Yes
- Depth
- 3 cm
- Fiber ethernet cabling technology
- 1000BASE‑LX, 100BASE-SX
- Height
- 13.5 cm
- Housing material
- Zinc steel
- International Protection (IP) code
- IP30
- MAC address table
- 96000 entries
- Networking standards
- IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
- Operating temperature (T-T)
- 8 - 35 °C
- Power consumption (typical)
- 130W
- Power over Ethernet (PoE) support
- Yes
- Source data-sheet
- Icecat.biz
- Switch layer
- L7
- Switching capacity
- 12 Gbit/s
- Throughput
- 8.9 Mpps
- Weight
- 500g
Specific References
- EAN13
- 0710931160246
