Startech PCI Express AC1200 Dual Band Wireless-AC Network Adapter - PCIe 802.11ac WiFi Card
  • Startech PCI Express AC1200 Dual Band Wireless-AC Network Adapter - PCIe 802.11ac WiFi Card
  • Startech PCI Express AC1200 Dual Band Wireless-AC Network Adapter - PCIe 802.11ac WiFi Card
  • Startech PCI Express AC1200 Dual Band Wireless-AC Network Adapter - PCIe 802.11ac WiFi Card

StarTech.com PCI Express AC1200 Dual Band Wireless-AC Network Adapter - PCIe 802.11ac WiFi Card

StarTech.com PCI Express AC1200 Dual Band Wireless-AC Network Adapter - PCIe 802.11ac WiFi Card - 2.4 / 5GHz Wireless-AC Card
Out of Stock
Reference: PEX867WAC22

Require Project Pricing?

Click here to email your parts list and we will send you a quote
Add high speed 802.11ac WiFi connectivity to a desktop PC through a PCI Express slot with dual band 2.4/5 GHz frequencies and up to 867Mbps

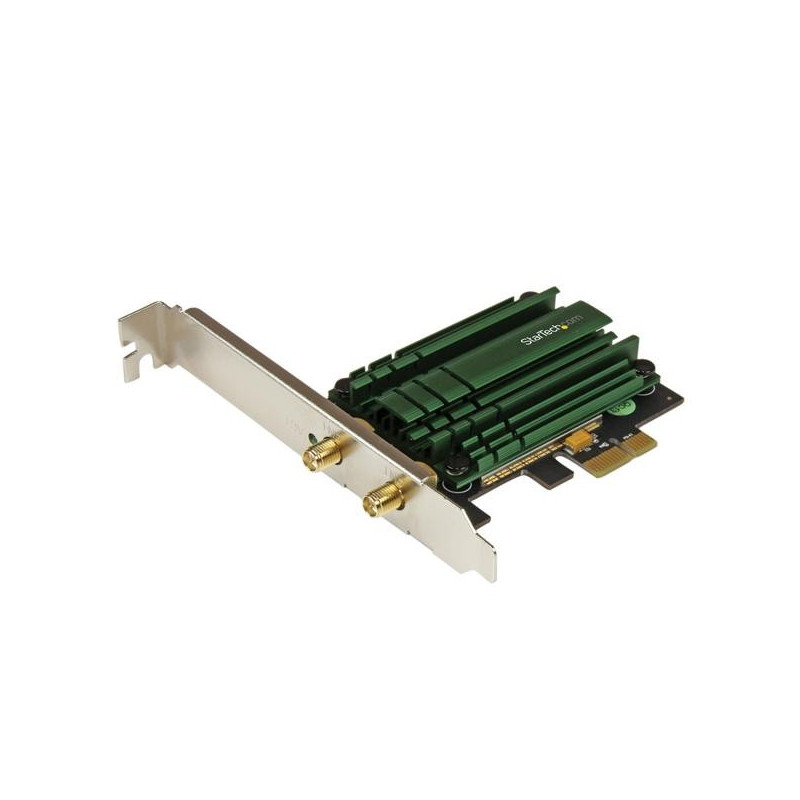

The PEX867WAC22 PCI Express AC1200 Wireless Network Adapter lets you add dual-band Wireless-AC connectivity to a desktop computer through a PCIe slot.

With increased demand on network resources, this Wireless-AC adapter gives you exceptional speed and range for your office or home wireless network when paired with an 802.11ac router. This dual-band WiFi adapter supports maximum data rates of up to 867 Mbps on the 5GHz band (3x the speed of Wireless-N), plus up to 300 Mbps on the 2.4GHz band, making it the perfect solution for applications like HD video streaming, online conferencing, file transfers and gaming.

This versatile PCIe wireless card features a 2T2R (2 transmitter, 2 receiver) detachable antenna design, with an included magnetic antenna stand that can easily be mounted to the top or side of your PC case. Plus, the controller card is equipped with a standard profile bracket and includes a low-profile/half-height bracket for installation in small form-factor computers. To integrate with all of your networking devices, the adapter is also backward compatible with 802.11a/b/g/n networks.

Backed by a StarTech.com 2-year warranty, with free lifetime technical support.

The StarTech.com Advantage

- Experience faster wireless speed and better coverage with 802.11ac compatibility
- Ensure fast and dependable wireless networking, with less interference through dual band 2.4 GHz / 5 GHz operation
- Connect to existing wireless networks with 802.11a/b/g/n backward compatibility

Data sheet

Antenna connector type
RP-SMA
Chipset
RTL8812AE
Colour of product
Green
Connectivity technology
Wireless
Data transfer rate (max)
867 Mbit/s
Depth
120 mm
Detachable antenna(s)
Yes
Frequency band
European Union: 2.4122.472(13 channel); 5.1805.240(4 channel); 5.5005.700(8 channel); . Ret o World (Actual channel deignated by electing country UI): 2.4122.472(13 channel); 5.1805.240(4 channel); 5.2605.320(4 channel); 5.5005.700(11 channel); 5.7455.825
Gain
5 dBi
Height
990mm
Host interface
PCI-E
Interface
Ethernet/WLAN
LED indicators
Activity,Link
Networking standards
IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n
Package height
57.20 mm
Package width
154 mm
RoHS compliance
Yes
Security algorithms
128-bit WEP,64-bit WEP,TKIP,WEP,WPA,WPA2
Source data-sheet
Icecat.biz
Weight
VFD and cable: 36.6 lb; Pole (each): 50.7 oz; Base: 66.1 lb (VFD and cable: 1.29 lb; Pole (each): 1.79 oz; Base: 2.33 lb)
Wi-Fi standards
IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n
Width
83 mm
Windows operating systems supported
Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Wind
WLAN data transfer rates supported
867 Mbit/s

Specific References

EAN13
0065030857512
