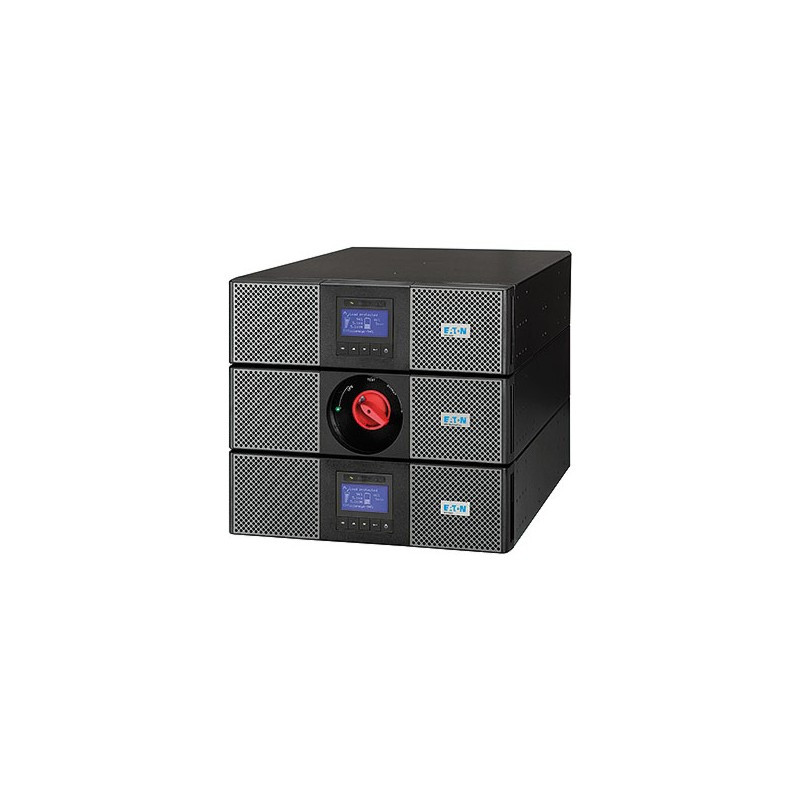

Eaton 9PXM10KiRTN
Parallel Redundant Model w/ Network Cards & Rack Kit 1:1, 10000VA, 9000W, Hardwired In, 4 x C19 & Hardwired Out
The Eaton 9PX UPS provides energy-efficient power protection for small & medium Datacentres, IT rooms and Infrastructure. Delivering double conversion protection with 40% less energy usage and 28% more power 9PX is the perfect UPS for IT and Facility managers that are concerned by energy cost and are looking for next generation power protection solutions.
Data sheet
- AC outlet types
- C19 coupler, Terminal
- Certification
- IEC/EN 62040 -2, FCC Class A, IEC/EN 62040-3
CE, CB report (TUV), UL - Colour of product
- Black
- Crest factor
- 3:1
- Depth
- 68.5 cm
- Display
- LCD
- Efficiency
- 94%
- Input current THD
- 5%
- Input operation voltage (max)
- 276V
- Input operation voltage (min)
- 176V
- Noise level
- 97.4 dB
- Operating temperature (T-T)
- 8 - 35 °C
- Output operation voltage (max)
- 240V
- Output operation voltage (min)
- 200V
- Output power
- 9000W
- Output power capacity (VA)
- 10000 VA
- Output voltage THD
- 2%
- Package weight
- 122 kg
- Power plug
- Type G (BS 1363)
- Power supply input frequency
- 40/70 Hz
- Safety
- IEC/EN 62040-1, UL 1778, CSA 22.2
- Source data-sheet
- Icecat.biz
- Weight
- 106 kg
- Width
- 44 cm
Specific References
- EAN13
- 0743172045317
Parallel Redundant Model w/ Network Cards & Rack Kit 1:1, 10000VA, 9000W, Hardwired In, 4 x C19 & Hardwired Out
