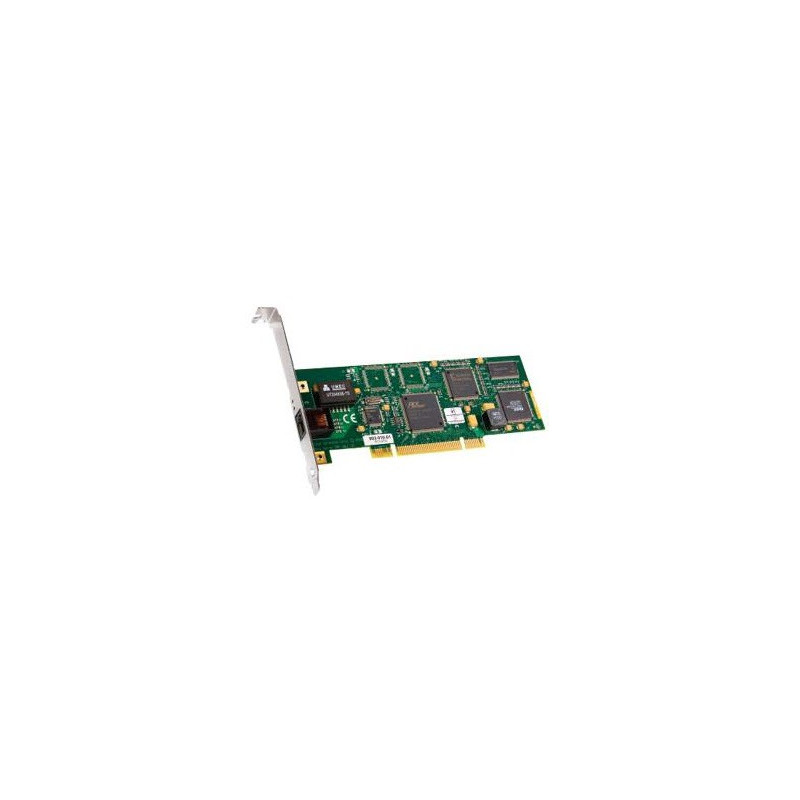

Dialogic Diva BRI-CTI PCI
Diva BRI-CTI Media Board
The Dialogic Diva BRI-CTI Media Board provides one ISDN Basic Rate Interface (ISDN BRI) port and can serve as an entry level communication platform, which can scale from 2 to 16 channels (phone lines) per server.
The Diva BRI-CTI offers basic voice and speech features and can serve as a base for an entry-level communication application. It supports standard applications and is also suitable for new application development. The Diva BRI-CTI is a Low Profile form factor PCI board, and can be combined with other Dialogic Diva Media Boards, such as those supporting analog, E1/T1, ISDN PRI, and VoIP interfaces.
The Diva BRI-CTI supports the same set of programming interfaces as other Diva Media Boards: the three Dialogic Diva APIs, CAPI 2.0, COM port, WMP - WAN MiniPort, TTY, Asterisk, and SIP/RTP. Because of this consistent support, an entry-level communications application written for another Diva board will normally work without modifications with the Diva BRI-CTI.
The Diva BRI-CTI offers basic voice and speech features and can serve as a base for an entry-level communication application. It supports standard applications and is also suitable for new application development. The Diva BRI-CTI is a Low Profile form factor PCI board, and can be combined with other Dialogic Diva Media Boards, such as those supporting analog, E1/T1, ISDN PRI, and VoIP interfaces.
The Diva BRI-CTI supports the same set of programming interfaces as other Diva Media Boards: the three Dialogic Diva APIs, CAPI 2.0, COM port, WMP - WAN MiniPort, TTY, Asterisk, and SIP/RTP. Because of this consistent support, an entry-level communications application written for another Diva board will normally work without modifications with the Diva BRI-CTI.
Data sheet
- Certification
- ICES-003 B, CSA 60950-1
EN60950-1, EN55022, EN55024
FCC Part 15 B, UL60950-1 - Colour of product
- Green,Grey
- Compatible operating systems
- Windows: v2c
Linux: Net-SNMP v1, v2c, v3 - Connectivity technology
- Wired
- Depth
- 180.96 mm
- Dimensions (WxDxH)
- 120.88 x 180.96 x 0 mm
- Ethernet LAN connection
- Yes
- Host interface
- PCI-E
- Input current
- 9/4.5 A
- Input voltage
- 5 V
- Interface
- XFP
- Internal memory
- 8 MB
- Management protocols
- ЫТЬЗ
- Operating temperature (T-T)
- 10 - 50 °C
- Operating temperature range (T-T)
- 10 - 50 °C
- Ports quantity
- 1
- Source data-sheet
- Icecat.biz
- Storage temperature (T-T)
- 0 - 70 °C
- Width
- 120.88 mm
Diva BRI-CTI Media Board
