Allied Telesis Single slot chassis f/ unmanaged, standalone Media/Bridging Media Converter

Allied Telesis Single slot chassis f/ unmanaged, standalone Media/Bridging Media Converter

Single slot chassis f/ unmanaged, standalone Media/Bridging Media Converter
Out of Stock
Reference: AT-MCR1-80

Require Project Pricing?

Click here to email your parts list and we will send you a quote
Overview

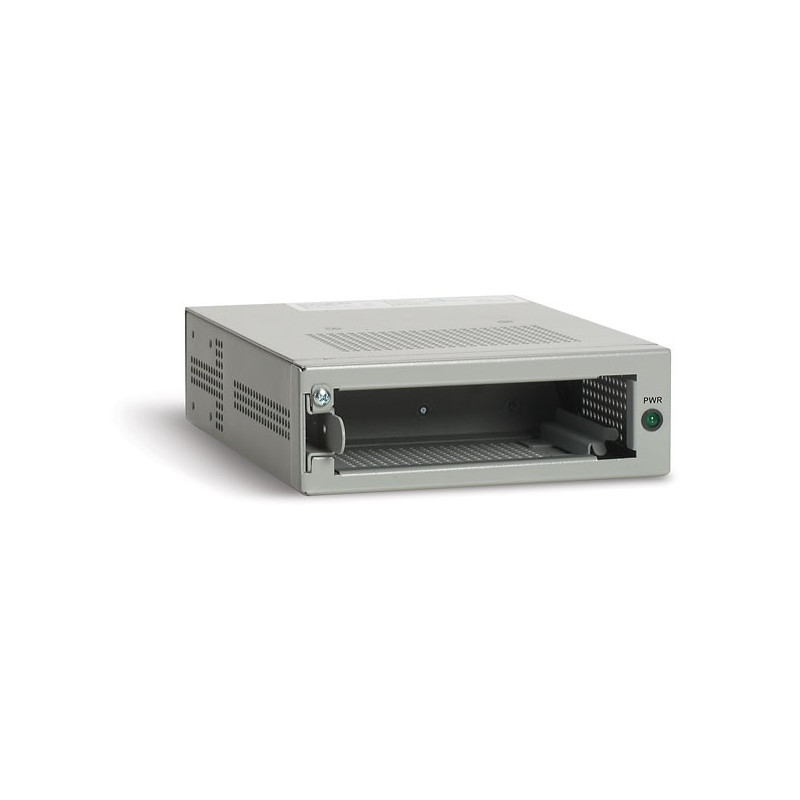

The AT-MCR1 is a single slot, rack-mountable

chassis, capable of housing any of the range of

Fast Ethernet and Gigabit media converters and

bridging media converters.The chassis features

an internal power supply, which negates the

need to use the external power adapter

shipped with the media converter. A front panel

LED power indicator shows the user when

power is applied to the chassis. All the

standalone media converters and bridging

media converters can be hot inserted and

removed from the chassis, thus removing the

need to power down the chassis for

maintenance and upgrades.The chassis ships

with a rack-mount kit.
Allied Telesis

Data sheet

DC-in requirements
-40/-60VDC
Dimensions (WxDxH)
173 x 131 x 44 mm
Electromagnetic emissions
FCC class A, EN55022 class A, VCCI class A, C-Tick, CE, EN55024
Operating altitude
914.4 - 2133 m
Operating relative humidity (H-H)
5 - 90 %
Operating relative humidity range
5 - 90%
Operating temperature (T-T)
-25 - 70 °C
Operating temperature range (T-T)
-25 - 70 °C
Power requirements
12VDC@1A
Safety
UL60950-1 (CULUS), EN60950-1 (TUV), CAN/CSA C22.2 No. 60950-1
Source data-sheet
Icecat.biz
Storage relative humidity (H-H)
5 - 95 %
Storage relative humidity range
5 - 95%
Storage temperature (T-T)
0 - 40 °C
Storage temperature range (T-T)
0 - 40 °C
Weight
800 g

Specific References

EAN13
0767035180601
