Cisco DS-CWDM-1490
1490 nm CWDM 1/2-Gbps Fibre Channel SFP, Violet, Spare
The Cisco® Small Form-Factor Pluggable (SFP), Enhanced Small Form-Factor Pluggable (SFP+), and X2 devices for use on the Cisco MDS 9000 Family of products are hot-swappable transceivers that plug into ports on the Cisco MDS 9000 Family director switching modules and fabric switches. These transceivers give users the flexibility to choose different cabling types and distances on a port-by-port basis.
Cisco Coarse Wavelength-Division Multiplexing Extended Distance SFP Solution

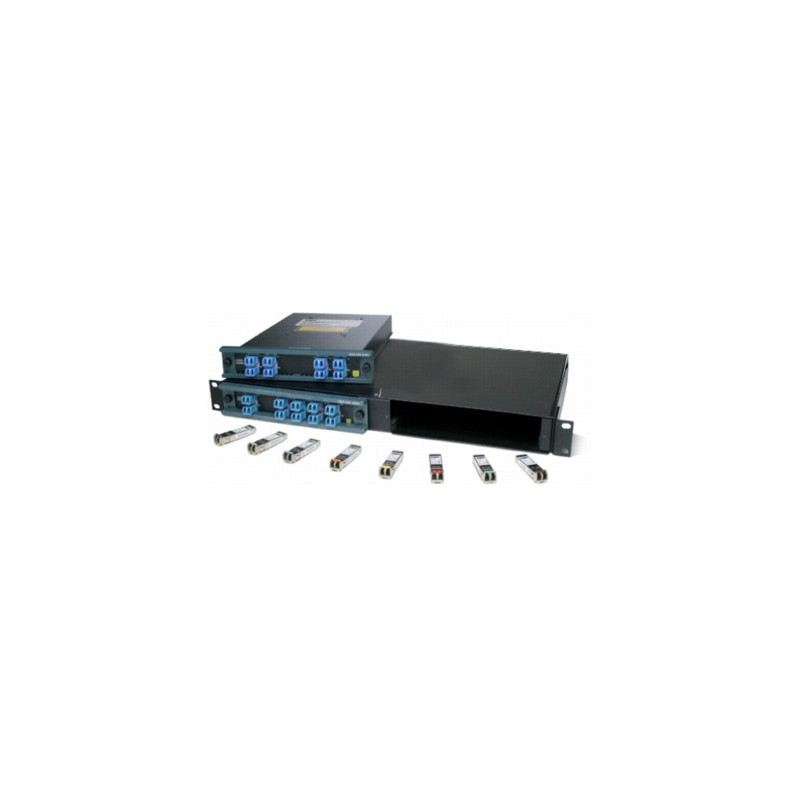

The Cisco MDS 9000 family offers cost-effective multiprotocol extended distance connectivity that optimizes the use of a customer's existing optical infrastructure through the Cisco Coarse Wavelength-Division Multiplexing (CWDM) SFP solution. The Cisco CWDM SFP solution has two main components: a set of eight wavelength-specific SFPs and a set of CWDM optical add-drop modules (OADMs). A Cisco CWDM chassis enables rack-mounting of up to two Cisco CWDM OADMs. The Cisco CWDM OADMs are passive and require no power or configuration.
Cisco CWDM Extended Distance SFP Solution
The Cisco CWDM SFP solution enables the transport of up to eight channels over one pair of single-mode fiber strands, enabling enterprises to increase the bandwidth of an existing optical infrastructure without adding new fiber strands. The solution can be used in parallel with other Cisco SFP devices on the same platform.
Cisco Coarse Wavelength-Division Multiplexing Extended Distance SFP Solution
The Cisco MDS 9000 family offers cost-effective multiprotocol extended distance connectivity that optimizes the use of a customer's existing optical infrastructure through the Cisco Coarse Wavelength-Division Multiplexing (CWDM) SFP solution. The Cisco CWDM SFP solution has two main components: a set of eight wavelength-specific SFPs and a set of CWDM optical add-drop modules (OADMs). A Cisco CWDM chassis enables rack-mounting of up to two Cisco CWDM OADMs. The Cisco CWDM OADMs are passive and require no power or configuration.
Cisco CWDM Extended Distance SFP Solution
The Cisco CWDM SFP solution enables the transport of up to eight channels over one pair of single-mode fiber strands, enabling enterprises to increase the bandwidth of an existing optical infrastructure without adding new fiber strands. The solution can be used in parallel with other Cisco SFP devices on the same platform.
Data sheet
- Cable type
- Single-mode
- Colour of product
- Stainless steel,Violet
- Connectivity technology
- Wired
- Connector(s)
- LC - LC
- Data transfer rate (max)
- 2000 Mbit/s
- Depth
- 55.2 mm
- Dimensions (WxDxH)
- 13.75 x 55.2 x 8.5 mm
- Fiber optic connector
- XFP
- Height
- 990mm
- Interface
- SFP
- Interface type
- XFP
- Operating temperature (T-T)
- 8 - 35 °C
- Operating temperature range (T-T)
- 0 - 40 °C
- Source data-sheet
- Icecat.biz
- Storage temperature (T-T)
- 8 - 85 °C
- Storage temperature range (T-T)
- -40 - 85 °C
- Wavelength
- [1250 nm – 1600 nm]
- Width
- 13.75 mm
Specific References
- EAN13
- 0746320985701
1490 nm CWDM 1/2-Gbps Fibre Channel SFP, Violet, Spare
