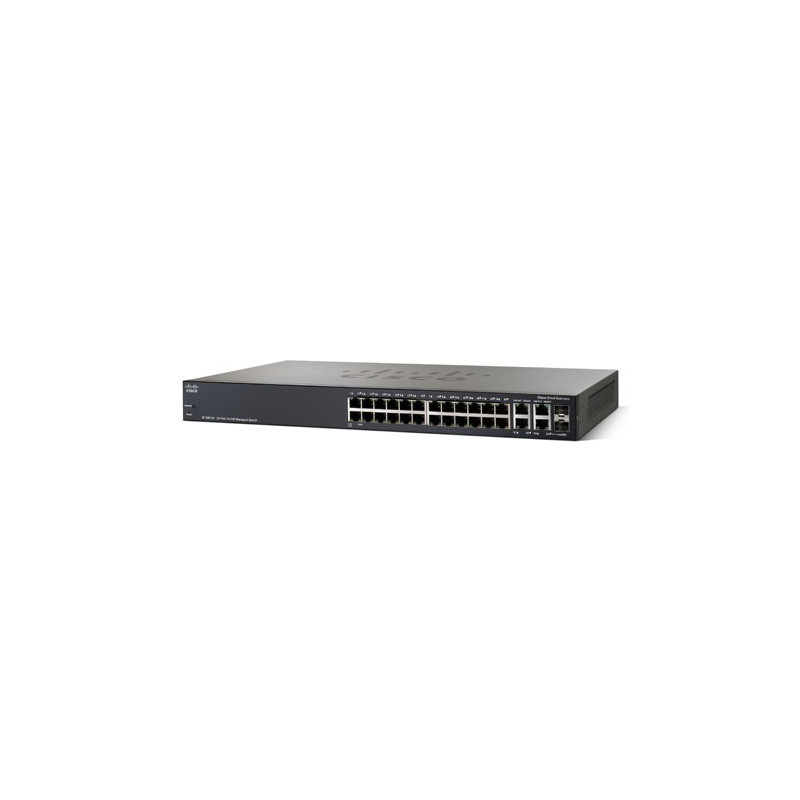

Cisco SF300-24
SF300-24, 24x RJ-45 10/100 Mbit/s, 2x RJ-45 10/100/1000 Mbit/s, 2x mini-GBIC (Combo SFP), IPv6, QoS
The Cisco SF300-24 switch is an affordable 24-port managed 10/100 switch with four 10/100/1000 ports, two of which are combination mini-GBIC ports. It delivers the security and advanced network features needed to support business-class data, voice, security, and wireless solutions. With energy-saving technology, it optimizes power use to help protect the environment and reduce energy costs without compromising performance. It is easy to configure and manage with intuitive browser-based tools and is offered with a limited lifetime warranty, including next business day advance replacement and one year of technical support. The Cisco SF300-24 provides the ideal combination of affordability, performance, and capabilities in a switch designed specifically for small businesses.
Data sheet
- 10G support
- No
- Authentication method
- RADIUS, MD5
- Basic switching RJ-45 Ethernet ports quantity
- 24
- Basic switching RJ-45 Ethernet ports type
- Fast Ethernet (10/100)
- Certification
- UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A
- Colour of product
- Black
- Connectivity technology
- Wired
- DHCP client
- Yes
- DHCP server
- Yes
- Dimensions (WxDxH)
- 440 x 257 x 44.45 mm
- Flash memory
- 96 MB
- Heat dissipation
- 57.7 BTU/h
- Internal memory
- ≈ 5,000 Cat 8 with plots; ≈ 12,000 Cat 6A with plots
- MAC address table
- 96000 entries
- Management protocols
- SNMP 1/2/3, RMON, HTTP/HTTPS, TFTP, DHCP, SSH, RADIUS, BOOTP, SNTP
- Maximum data transfer rate
- 96 Gbit/s
- Mean time between failures (MTBF)
- 282775.3 h
- Minimum system requirements
- Mozilla Firefox 2.5, Microsoft Internet Explorer 6
- Networking features
- Yes
- Networking standards
- IEEE 802.1s,IEEE 802.1w,IEEE 802.1X,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3at,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
- Non-operating relative humidity (non-condensing)
- 10 - 90 %
- Number of VLANs
- 8000
- Operating relative humidity (H-H)
- 10 - 90 %
- Operating relative humidity range
- 10 - 90 %
- Operating temperature (T-T)
- 8 - 35 °C
- Operating temperature range (T-T)
- 0 - 40 °C
- Power consumption (typical)
- 16.3 W
- Power over Ethernet (PoE) support
- No
- Power requirements
- AC 100-240V@47-63Hz
- Power supply type
- AC
- Source data-sheet
- Icecat.biz
- Stackable
- No
- Storage temperature (T-T)
- 8 - 85 °C
- Storage temperature range (T-T)
- -20 - 70 °C
- Supported data transfer rates
- x1 115.2 Kbits/sec., x2 230.4 Kbits/sec., x4 460.9 Kbits/sec
- Switch layer
- L7
- Switching capacity
- 993.6 Gbps
- Weight
- 3090 g
- Wireless LAN connection
- No
Specific References
- EAN13
- 0882658296192
SF300-24, 24x RJ-45 10/100 Mbit/s, 2x RJ-45 10/100/1000 Mbit/s, 2x mini-GBIC (Combo SFP), IPv6, QoS
