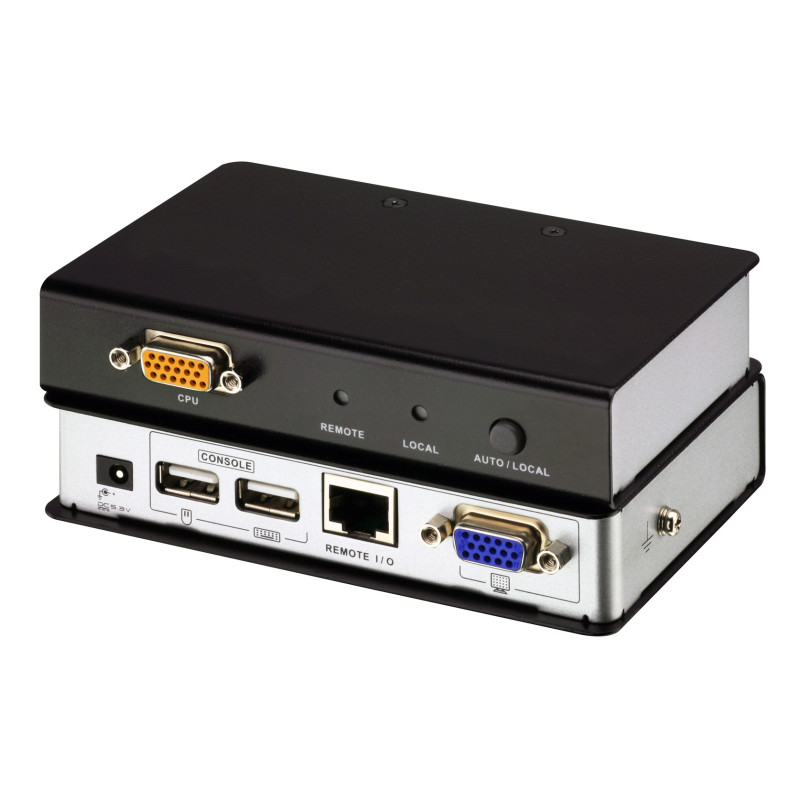

Aten KA7171
USB/PS2 Adapter Module w/ Local Console
For smooth operation and added convenience, ATEN´s KA7171 USB-PS/2 KVM Adapter Module is designed to provide a full console connection locally in a KVM over IP Switch or Matrix KVM* installation. The KA7171 allows a PS/2 or USB server to be connected to the switch via Cat 5e/6 cable and provides an extra console via USB keyboard, USB mouse, and monitor to use for extended local operations. In addition, the Privileged Console Control function prevents remote users from operating the device when a local administrator requires full control of the server - reducing conflicts and unwanted operations.
Data sheet
- AC adapter included
- Yes
- AC input voltage
- 5 V
- Audio connections
- No
- Built-in display
- No
- Cables included
- KVM
- Certification
- CN ZL 01124239.6 , CN ZL 200410031689.0 , CN ZL 200410042772.8 , CN ZL 200710181531.5 , DE 102004019107 , DE 102004058233 , JP 4160936 , JP 5244448 , TW 150098 , TW I237762 , TW I243890 , TW I339467 , US 6160543 , US 6489854 , US 7532998 , US 7585176 , US
- Colour of product
- Black
- DC-in jack
- Yes
- Depth
- 127 mm
- Height
- 990mm
- Keyboard port type
- USB
- Material
- Zinc steel
- Maximum resolution
- 1920 x 1200 pixels
- Mouse port type
- USB
- Operating relative humidity (H-H)
- 0 - 80 %
- Operating temperature (T-T)
- 8 - 35 °C
- Power consumption (typical)
- 9W
- Source data-sheet
- Icecat.biz
- Storage temperature (T-T)
- -20 - 60 °C
- Video port type
- VGA
- Weight
- 330 g
- Width
- 865 mm
Specific References
- EAN13
- 4710423778924
