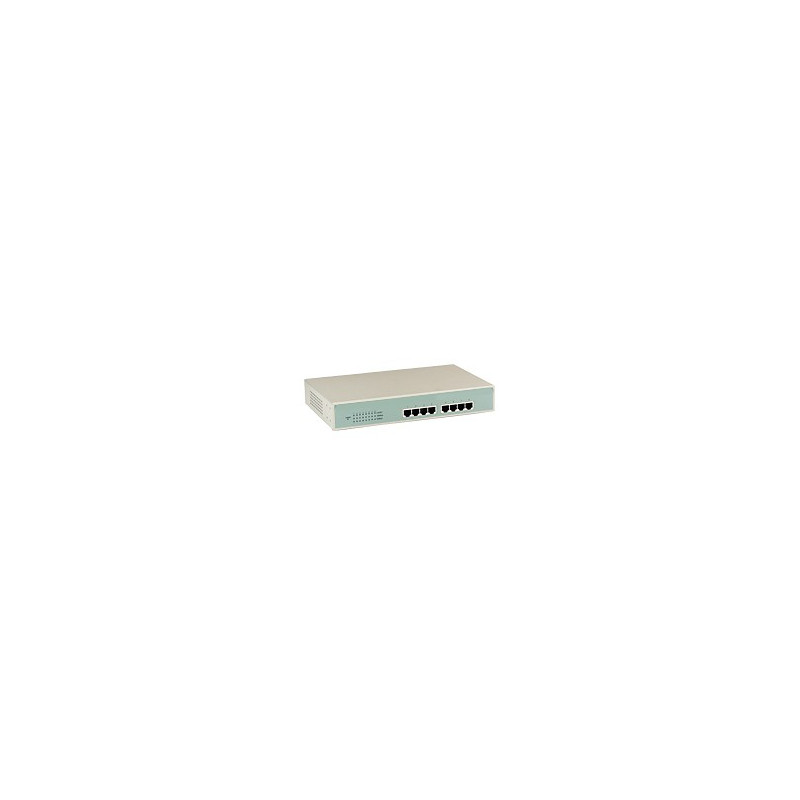

Dynamode 8-Port 10/100/1000Mbps Gigabit Desktop Switch
8-Port 10/100/1000Mbps Gigabit Desktop Switch
All the power of Gigabit - in a desktop Switch!
The SWG80010-D is a powerful desktop Switch with all the power of Gigabit Ethernet to power your existing network at home or in the office.
Featuring 8-Ports of auto-sensing 10/100/1000Mbps connectivity, this Switch is fully backward compatible with existing Ethernet and Fast Ethernet Networks - move up to Gigabit and unleash the power of up to ten times the speed of extsing Fast Ethernet!
Move up to Gigabit Ethernet for less than some Fast Switches!
Need a Gigabit Network Card? Check out our low cost NC1000TX-G
FEATURES
-8-Port 10/100/1000 Gigabit.
-Desktop Form Factor.
-Silent Running.
-IEEE802.3, 3u, 3ab Gigabit compliance.
-ASIC Routing Engine.
-8K MAC Address Table.
-4K Queue Buffer.
-Full/Half Duplex operation.
-Auto Partioning.
-Full Status LEDS for POWER, LINK, SPEED, ACTIVITY.
-External UK Power Supply.
-FCC, CE Approved.
The SWG80010-D is a powerful desktop Switch with all the power of Gigabit Ethernet to power your existing network at home or in the office.
Featuring 8-Ports of auto-sensing 10/100/1000Mbps connectivity, this Switch is fully backward compatible with existing Ethernet and Fast Ethernet Networks - move up to Gigabit and unleash the power of up to ten times the speed of extsing Fast Ethernet!
Move up to Gigabit Ethernet for less than some Fast Switches!
Need a Gigabit Network Card? Check out our low cost NC1000TX-G
FEATURES
-8-Port 10/100/1000 Gigabit.
-Desktop Form Factor.
-Silent Running.
-IEEE802.3, 3u, 3ab Gigabit compliance.
-ASIC Routing Engine.
-8K MAC Address Table.
-4K Queue Buffer.
-Full/Half Duplex operation.
-Auto Partioning.
-Full Status LEDS for POWER, LINK, SPEED, ACTIVITY.
-External UK Power Supply.
-FCC, CE Approved.
Data sheet
- Basic switching RJ-45 Ethernet ports quantity
- 8
- Certification
- FCC A, CE A, VCCI-A
- Dimensions (WxDxH)
- 280 x 180 x 44 mm
- I/O ports
- MDI/MDI-X
- MAC address table
- 96000 entries
- Maximum data transfer rate
- 96 Gbit/s
- Memory type
- SLC
- Networking standards
- Plug and Play, CE, FCC Class A certified, UL, TUV GS, VCCI, C-Tick, BSMI CNS 13438 Class A
- Operating relative humidity (H-H)
- 10 - 90 %
- Operating relative humidity range
- 10 - 90 %
- Operating temperature (T-T)
- 8 - 35 °C
- Operating temperature range (T-T)
- 0 - 40 °C
- Power consumption (typical)
- 22 W
- Power over Ethernet (PoE) support
- No
- Power supply type
- 100-240VAC
- Source data-sheet
- Icecat.biz
- Storage relative humidity (H-H)
- 5 - 90 %
- Storage relative humidity range
- 5 - 90 %
- Storage temperature (T-T)
- 8 - 85 °C
- Storage temperature range (T-T)
- 10 - 70 °C
Specific References
- EAN13
- 8400800004550
