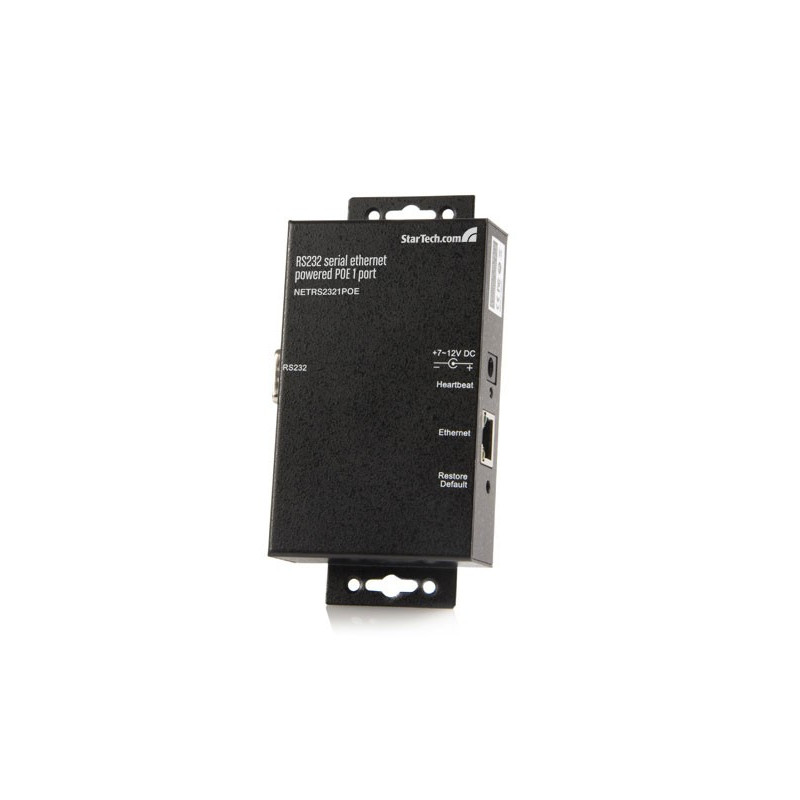

StarTech.com NETRS2321POE network card & adapter

StarTech.com 1 Port RS232 Serial Ethernet Device Server - PoE Power Over Ethernet

StarTech.com 1 Port RS232 Serial Ethernet Device Server - PoE Power Over Ethernet - Serial over IP Device Server Adapter - PoE-Powered
Out of Stock
Reference: NETRS2321POE

Require Project Pricing?

Click here to email your parts list and we will send you a quote
Connect to, configure and remotely manage an RS-232 serial device over an IP network

The NETRS2321POE 1 Port RS232 Serial Ethernet Device Server - PoE (Power Over Ethernet) allows you to install your RS232 devices anywhere on your TCP/IP Ethernet WAN/LAN, and access them as if they were right beside you - even over the Internet!

The Serial Device Server is designed to function seamlessly with your other integrated and add-on serial ports as if they were right inside your computer. Perfect for industrial automation, security, Point of Sale, or any long-range serial application, delivering reliable performance in any environment.

The Ethernet/serial device server supports PoE (Power over Ethernet) when connected to a PoE compliant device - eliminating the need for an external power supply and outlet, and making it easier to situate the device server as needed.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

- PoE support gives you the freedom to situate your serial device where it is needed even when no power outlet is available
- IP-based connection to your serial devices allows remote administration from anywhere; even over the Internet
- Remotely connect to multiple NETRS2321POE units with a single PC for simple and efficient management of devices from a single location

Data sheet

Cabling technology
10/100Base-T(X)
Certification
CE, FCC, RoHS
Compatible operating systems
Win2000, Win XP 32bit, Vista 32bit
Compliance industry standards
IEEE 802.3af
Connectivity technology
Wired
Data transfer rate
0.1152 Mbit/s
Data transfer rate (max)
100 Mbit/s
Depth
107 mm
Dimensions (WxDxH)
66.3 x 107 x 25.4 mm
Height
25.4 mm
Host interface
Ethernet
I/O ports
1x RJ45 F
1x DB9 M
Input voltage
–36 - –72 V
Networking standards
Plug and Play, CE, FCC Class A certified, UL, TUV GS, VCCI, C-Tick, BSMI CNS 13438 Class A
Operating relative humidity (H-H)
5 - 95 %
Operating relative humidity range
5 - 95 %
Operating temperature (T-T)
8 - 35 °C
Operating temperature range (T-T)
0 - 55 °C
Package height
158 mm
Package weight
850 g
Package width
55 mm
Power consumption
100 mA
Serial ports quantity
Standard HP UPS Management Module
Source data-sheet
Icecat.biz
Storage temperature (T-T)
8 - 85 °C
Storage temperature range (T-T)
-20 - 85 °C
Supported data transfer rates
x1 115.2 Kbits/sec., x2 230.4 Kbits/sec., x4 460.9 Kbits/sec
Supported network protocols
UDP, IP, TCP, ICMP, HTTP, DHCP, ARP-Ping
Weight
VFD and cable: 36.6 lb; Pole (each): 50.7 oz; Base: 66.1 lb (VFD and cable: 1.29 lb; Pole (each): 1.79 oz; Base: 2.33 lb)
Windows operating systems supported
Windows 2000,Windows 2000 Professional,Windows Vista Business,Windows Vista Enterprise,Windows Vista Home Basic,Windows Vista Home Premium,Windows Vista Ultimate,Windows XP Home,Windows XP Professional

Specific References

EAN13
0065030834162
