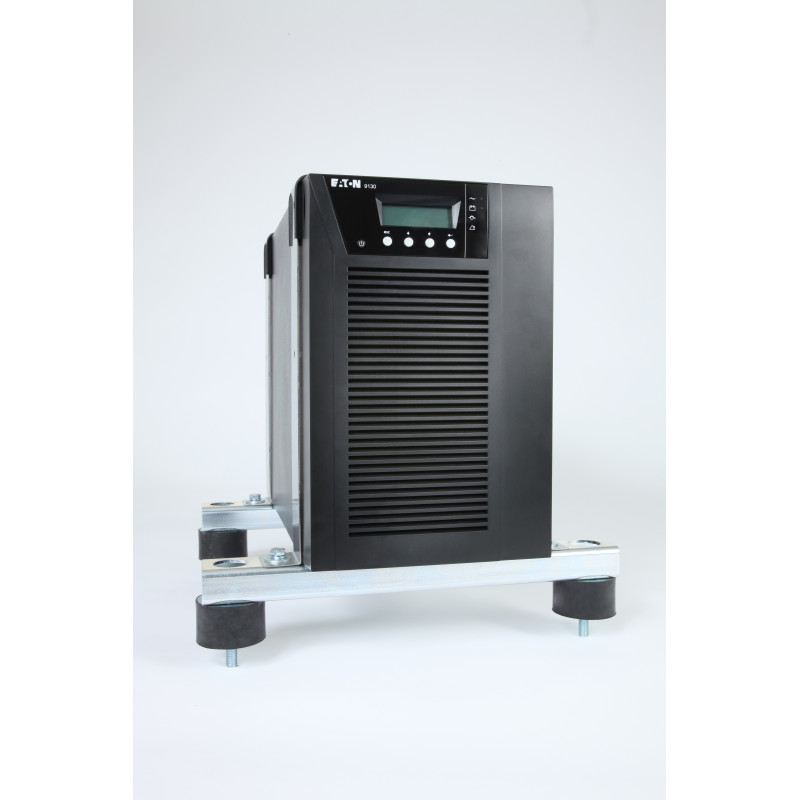

Eaton 9130 Marine 3000VA

Eaton 9130 Marine 3000VA

9130 Marine, 3kVA / 2700W
Out of Stock
Reference: 103007848-6591

Require Project Pricing?

Click here to email your parts list and we will send you a quote
Marine approved UPS by the DNV and ABS, On-line double conversion UPS with automatic bypass, 1000VA/900W, 2000VA/1800W, 3000VA/2700W, Tower unit with mounting rails and vibration dampers, multilingual LCD display, hot swappable batteries, power management software, Relay output, USB and Serial port.



- Provides more real power (watts) to protect more equipment and leave room for expanding IT systems with a 0.9 power factor

- Simplifies UPS monitoring and management with a bright LCD user interface and free intuitive power management software

- Increases battery service life and system uptime with ABM battery-charging technology and hot-swappable batteries

- Extends battery runtime for critical devices with load segments

- Maximizes runtimes with optional extended battery modules

Data sheet

AC outlet types
C13 coupler, C19 coupler
Battery type
VRLA 12V/9 Ah
Colour of product
Black
Crest factor
3:1
Depth
445 mm
Display
LCD
Efficiency
94 %
Height
469 mm
Input operation voltage (max)
276 V
Maximum current
96 A
Noise level
50 dB
Operating relative humidity range
5 - 90 %
Operating temperature range (T-T)
0 - 40 °C
Output operation voltage (min)
97 V
Output power
DC 9V
Output power capacity (VA)
3000 VA
Power factor
0.9
Power plug
Type G (BS 1363)
Power supply input frequency
40/70 Hz
Safety
IEC/EN 62 040-1-1
Source data-sheet
Icecat.biz
Storage temperature range (T-T)
-20 - 40 °C
Typical backup time at full load
6 min
Typical backup time at half load
15 min
Weight
33 kg

Specific References

EAN13
7330381692079
