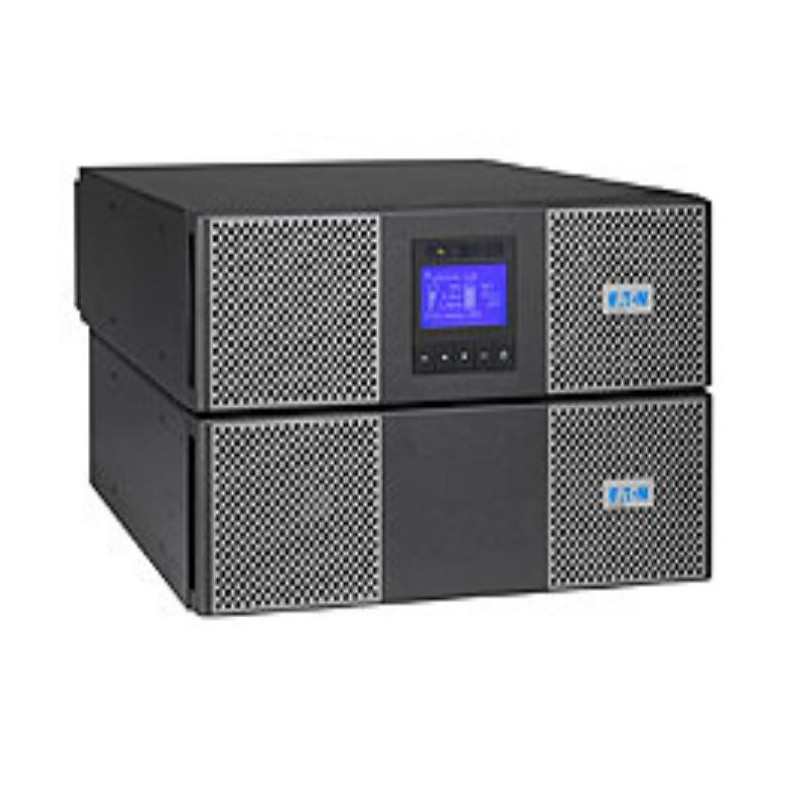

Eaton 9PX
11000 VA, 10000 W, 380/400/415V, 4 x IEC-320-C19
The Eaton 9PX UPS provides energy-efficient power protection for small & medium Datacentres, IT rooms and Infrastructure. Delivering double conversion protection with 40% less energy usage and 28% more power 9PX is the perfect UPS for IT and Facility managers that are concerned by energy cost and are looking for next generation power protection solutions.
Data sheet
- Colour of product
- Black
- Depth
- 700 mm
- Display
- LCD
- Efficiency
- 98 %
- Fan
- Yes
- Height
- 990mm
- Input operation voltage (min)
- 305 V
- Maximum current
- 150 A
- Noise level
- 50 dB
- Operating temperature range (T-T)
- 0 - 40 °C
- Output operation voltage (max)
- 250 V
- Output power
- DC 9V
- Output power capacity (VA)
- 11000 VA
- Power plug
- Type G (BS 1363)
- Power supply input frequency
- 40/70 Hz
- Rack mounting
- 3U
- Safety
- IEC/EN 62040-1
- Serial ports quantity
- Standard HP UPS Management Module
- Source data-sheet
- Icecat.biz
- Typical backup time at half load
- 13 min
- Width
- 993 mm
Specific References
- EAN13
- 0743172045270
11000 VA, 10000 W, 380/400/415V, 4 x IEC-320-C19
