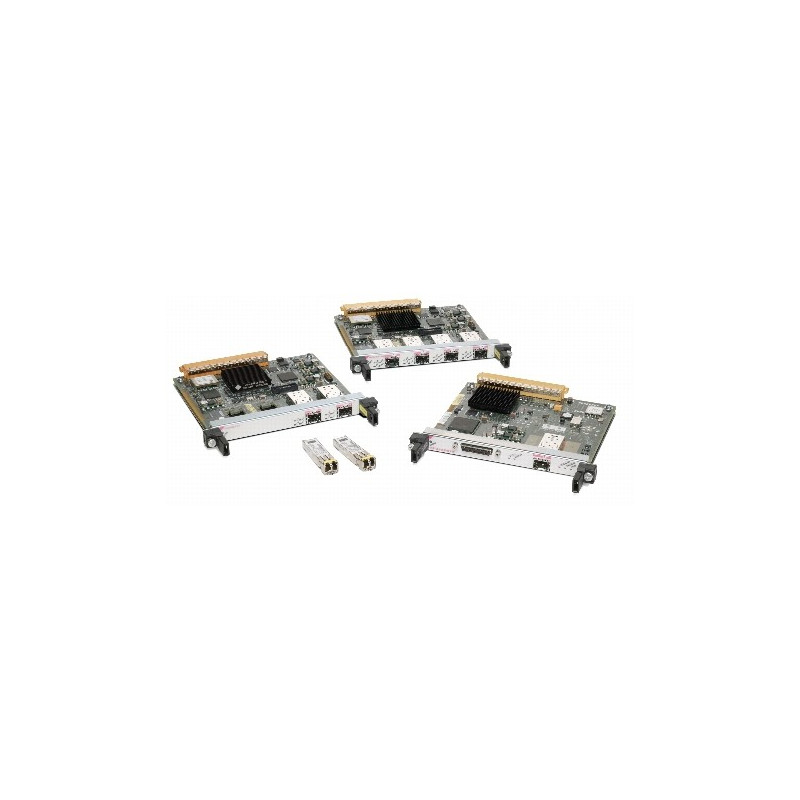

Cisco 1 Port OC48/STM16 Spare

Cisco SPA-1XOC48POS/RPR

1 port OC48c/STM-16c POS/RPR Shared Port Adapter, Spare
Out of Stock
Reference: SPA-1XOC48POS/RPR=

Require Project Pricing?

Click here to email your parts list and we will send you a quote
The Cisco 1-, 2-, and 4-Port OC-48c/STM-16c POS/RPR SPAs are available on high-end Cisco routing platforms and offers the benefits of network scalability with lower initial costs and easy upgrades. The SPAs continues the Cisco focus on investment protection along with consistent feature support, broad interface availability, and leading-edge technology. The SPAs allow different interfaces (POS, ATM, etc.) to be deployed on the same carrier card.

The Cisco 1-, 2-, and 4-Port OC-48c/STM-16c POS/RPR SPAs use Small Form-Factor Pluggable (SFP) interfaces. SFP modules are available in short-reach (2 km), intermediate-reach (15 km), and long-reach (80 km) optics.
Cisco

Data sheet

Colour of product
Silver
Connectivity technology
Wired
Data link protocols
Gigabit Ethernet
Data transfer rate
2.5 Gbit/s
Data transfer rate (max)
2560 Mbit/s
Depth
184.9 mm
Dimensions (WxDxH)
171 x 184 x 20 mm
Electromagnetic compatibility
FCC Part 15 (CFR 47), ICES 003, EN55022, CISPR 22, AS/NZ 3548, VCCI, EN55024, EN50082-1, EN61000-6-1, EN61000-3-2, EN61000-3-3
Ethernet LAN connection
No
Fiber optic connector
XFP
Height
20.3 mm
Host interface
CardBus
I/O ports
1 x SFP
Interface
Fiber
Operating altitude
-60 - 4000 m
Operating relative humidity (H-H)
5 - 85 %
Operating relative humidity range
5 - 85 %
Operating temperature (T-T)
8 - 35 °C
Operating temperature range (T-T)
0 - 40 °C
Ports quantity
1
Power consumption (typical)
15.5 W
Safety
UL 60950, CSA 22.2-No.60950, EN60950, IEC 60950 CB Scheme, ACA TS001, AS/NZS 3260, EN60825\IEC60825, 21CFR1040 -FDA1
Source data-sheet
Icecat.biz
Storage relative humidity (H-H)
5 - 95 %
Storage relative humidity range
5 - 95 %
Storage temperature (T-T)
8 - 85 °C
Storage temperature range (T-T)
-40 - 70 °C
Supported data transfer rates
1000/100/10
Supported network protocols
HDLC, PPP, RFC 2427, IPv4/IPv6, IEEE 802.17 - Resilient Packet Ring (RPR), IETF 2892 - Spatial Reuse Protocol (SRP)
Weight
VFD and cable: 36.6 lb; Pole (each): 50.7 oz; Base: 66.1 lb (VFD and cable: 1.29 lb; Pole (each): 1.79 oz; Base: 2.33 lb)
Width
171.5 mm

Specific References

EAN13
0746320924281
