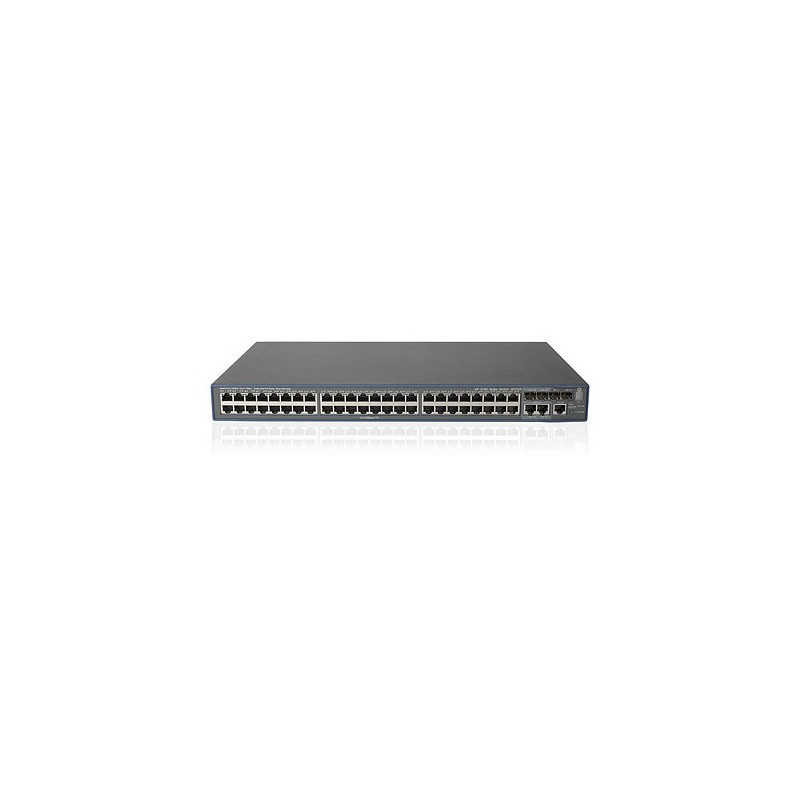

Hewlett Packard Enterprise 3100-48 v2
3100-48 v2 Switch
The HP 3100 EI Switch Series enhance security by providing reliable fully managed Fast Ethernet Layer 2 switches ideal for the access layer of medium and large enterprises. Features include enterprise class quality of service and security features including rate limiting, QinQ, ACLs, a 24-port PoE model and improved reliability with backup redundancy.
The HP 3100 EI Switch Series can be managed with the optional HP Intelligent Management Center (IMC) Software Platform for a single view of your entire network.
Features
Reliable Fast Ethernet Access Layer Switches
- The HP 3100 EI Switch Series enhance security by providing reliable fully managed Fast Ethernet Layer 2 switches ideal for the access layer of medium and large enterprises.
- Series includes 8-, 16-, 24- and 48-port models with Gigabit Ethernet uplinks with a 24-port PoE model for support of IP phones, wireless APs and video cameras.
- Hardware-based wirespeed access control lists (ACLs) help provide high levels of security and ease of administration without impacting network performance with a feature-rich TCAM-based ACL implementation.
- External redundant power supply provides improved reliability.
Enhanced Quality of Service (QoS) and Service Control
- The HP 3100 EI Switch Series provides traffic prioritization with supported congestion actions including strict priority (SP), weighted round robin (WRR), SP+WRR and HQ+WRR queuing.
- Broadcast control cuts down on unwanted network broadcast traffic. Advanced QoS classifies traffic using multiple match criteria based on Layer 2, 3, and 4 information and applies QoS policies such as setting priority level and rate limit to selected traffic on a per-port or per-VLAN basis.
- Multiple user authentication methods include MAC Authentication, IEEE 802.1X and Web-based authentications for improved security.
- Enhanced security features include port isolation, STP BPDU port protection and root guard. Radius/HWTACAS eases switch management security administration by using a password authentication server.
Single View of the Network
- The HP 3100 EI Switch Series can be seamlessly managed with the optional HP Intelligent Management Center (IMC) Software Platform to provide end-to-end network transparency with consistent network experience through comprehensive configuration, compliance and policy management.
The HP 3100 EI Switch Series can be managed with the optional HP Intelligent Management Center (IMC) Software Platform for a single view of your entire network.
Features
Reliable Fast Ethernet Access Layer Switches
- The HP 3100 EI Switch Series enhance security by providing reliable fully managed Fast Ethernet Layer 2 switches ideal for the access layer of medium and large enterprises.
- Series includes 8-, 16-, 24- and 48-port models with Gigabit Ethernet uplinks with a 24-port PoE model for support of IP phones, wireless APs and video cameras.
- Hardware-based wirespeed access control lists (ACLs) help provide high levels of security and ease of administration without impacting network performance with a feature-rich TCAM-based ACL implementation.
- External redundant power supply provides improved reliability.
Enhanced Quality of Service (QoS) and Service Control
- The HP 3100 EI Switch Series provides traffic prioritization with supported congestion actions including strict priority (SP), weighted round robin (WRR), SP+WRR and HQ+WRR queuing.
- Broadcast control cuts down on unwanted network broadcast traffic. Advanced QoS classifies traffic using multiple match criteria based on Layer 2, 3, and 4 information and applies QoS policies such as setting priority level and rate limit to selected traffic on a per-port or per-VLAN basis.
- Multiple user authentication methods include MAC Authentication, IEEE 802.1X and Web-based authentications for improved security.
- Enhanced security features include port isolation, STP BPDU port protection and root guard. Radius/HWTACAS eases switch management security administration by using a password authentication server.
Single View of the Network
- The HP 3100 EI Switch Series can be seamlessly managed with the optional HP Intelligent Management Center (IMC) Software Platform to provide end-to-end network transparency with consistent network experience through comprehensive configuration, compliance and policy management.
Data sheet
- 10G support
- No
- AC input frequency
- 50/60 Hz
- AC input voltage
- 100-240 V
- Auto MDI/MDI-X
- Yes
- Basic switching RJ-45 Ethernet ports quantity
- 48
- Basic switching RJ-45 Ethernet ports type
- Fast Ethernet (10/100)
- Colour of product
- Grey
- Depth
- 260.1 mm
- DHCP client
- Yes
- DHCP server
- Yes
- Dimensions (WxDxH)
- 439.9 x 260.1 x 43.7 mm
- Electromagnetic compatibility
- FCC part 15 Class A; VCCI Class A; EN 55022 Class A; CISPR 22 Class A; ICES-003 Class A; ANSI C63.4 2003; ETSI EN 300 386 V1.3.3; AS/NZS CISPR22 Class A; EN 61000-3-2; EN 61000-3-3; EN 61000-4-2; EN 61000-4-3; EN 61000-4-4; EN 61000-4-5; EN 61000-4-6; EN
- Flash memory
- 96 MB
- Heat dissipation
- 140 BTU/h
- Height
- 43.7 mm
- I/O ports
- 48 RJ-45 autosensing 10/100 ports(IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX), Duplex: half or full; 2 SFP dual-personality 10/100/1000 ports(IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); 4 SFP fixed Giga
- Input voltage
- –36 - –72 V
- Internal memory
- ≈ 5,000 Cat 8 with plots; ≈ 12,000 Cat 6A with plots
- Latency
- 100 Mb Latency: < 6 µs (64-byte packets); 1000 Mb Latency: < 5 µs (64-byte packets)
- MAC address table
- 96000 entries
- Management platform
- IMC - Intelligent Management Center; command-line interface; Web browser; SNMP Manager
- Memory type
- SDRAM
- Mounting
- Mounts in an EIA-standard 19 in. telco rack or equipment cabinet (hardware included)
- Networking standards
- IEEE 802.3,IEEE 802.3ab,IEEE 802.3u
- Operating relative humidity range
- 10 to 90 %
- Operating temperature range (T-T)
- 0 - 45 °C
- Power consumption (typical)
- 41 W
- Safety
- UL 60950-1; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1; EN 60950-1/A11; FDA 21 CFR Subchapter J; ROHS Compliance
- Size
- 439.9 mm (17.32 ")
- Source data-sheet
- Icecat.biz
- Storage relative humidity range
- 5 to 95 %
- Storage temperature range (T-T)
- -40 - 70 °C
- Switch layer
- L7
- Switching capacity
- 993.6 Gbps
- Throughput
- VHT20, VHT40, VHT80
- Weight
- 3500 g
- Width
- 439.9 mm
Specific References
- EAN13
- 0886111896431
