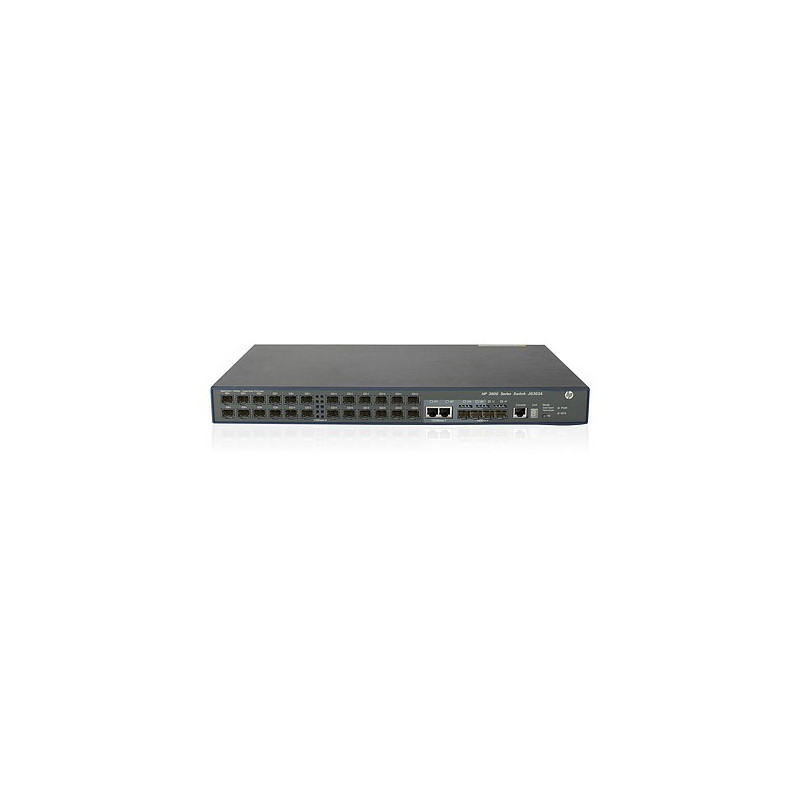

HP 3600-24-SFP v2 EI Switch

HP 3600-24-SFP v2 EI Switch

HP 3600-24-SFP v2 EI Switch

Out of Stock
Reference: JG303A

Require Project Pricing?

Click here to email your parts list and we will send you a quote
The HP 3600 EI Switch Series delivers premium levels of intelligent and resilient performance, security, and reliability for robust switching at the enterprise network edge. The series consists of Layer 3 Fast Ethernet and PoE/PoE+ switches, with advanced features that can accommodate the most demanding applications. Secure, resilient connectivity and the latest traffic-prioritization technologies enhance converged networks. Designed for increased flexibility and scalability, HP 3600 EI series switches come with 24 or 48 10/100 ports, four active SFP-based Gigabit Ethernet ports for stacking and uplinks, and a 24-port 100BASE-FX switch with two or four Gigabit Ethernet SFP slots.

Quality of Service (QoS)


• Broadcast control: allows limitation of broadcast traffic rate to cut down on unwanted network broadcast traffic



Management


• Friendly port names: allows assignment of descriptive names to ports



Connectivity


• IPv6: Telnet: for allowing CLI access via IPv6. SNMP: for IPv6 switch management. DNS: for IPv6 host management. DHCP: for auto IPv6 address configuration of a switch.



Performance


• Nonblocking performance: up to 17.6 Gbps nonblocking switching fabric provides wire-speed switching with up to 13.1 million pps throughput



Resiliency and high availability


• Separate data and control paths: keeps control separated from services and keeps service processing isolated; increases security and performance



Manageability


• RMON (remote monitoring): provides advanced monitoring and reporting capabilities for statistics, history, alarms, and events



Layer 2 switching


• 16/32K MAC address table: provides access to many Layer 2 devices

Data sheet

10G support
No
AC input frequency
50/60 Hz
AC input voltage
100-240 V
Auto MDI/MDI-X
Yes
Colour of product
Black
Depth
260.1 mm
DHCP client
Yes
DHCP server
Yes
Dimensions (WxDxH)
439.9 x 260.1 x 43.7 mm
Electromagnetic compatibility
FCC part 15 Class A; VCCI Class A; EN 55022 Class A; CISPR 22 Class A; ICES-003 Class A; ANSI C63.4 2003; ETSI EN 300 386 V1.3.3; AS/NZS CISPR22 Class A; EN 61000-3-2; EN 61000-3-3; EN 61000-4-2; EN 61000-4-3; EN 61000-4-4; EN 61000-4-5; EN 61000-4-6; EN
Heat dissipation
205 BTU/h
Height
43.7 mm
I/O ports
24 SFP 100 Mbps ports; 4 SFP 1000 Mbps ports; 2 dual-personality 1000 Mbps ports(IEEE 802.3ab Type 1000BASE-T), Media Type: Auto-MDIX, Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only; 1 RJ-45 serial console port
Input voltage
100-240 VAC; -48 to -60 VDC (depending on power supply chosen)
Latency
100 Mb Latency: < 6 µs; 1000 Mb Latency: < 5 µs
MAC address table
96000 entries
Management platform
IMC - Intelligent Management Center; command-line interface; Web browser; SNMP Manager
Mounting
Mounts in an EIA-standard 19 in. telco rack or equipment cabinet (hardware included)
Networking standards
IEEE 802.3,IEEE 802.3ab
Operating temperature range (T-T)
0 - 50 °C
Power consumption (typical)
9W
Safety
UL 60950-1; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1; EN 60950-1/A11; FDA 21 CFR Subchapter J; ROHS Compliance
Size
439.9 mm (17.32 ")
Source data-sheet
Icecat.biz
Storage relative humidity range
5 to 95 %
Storage temperature range (T-T)
-40 - 70 °C
Switch layer
L7
Switching capacity
993.6 Gbps
Throughput
VHT20, VHT40, VHT80
Weight
5000 g
Width
439.9 mm

Specific References

EAN13
0886111894871
