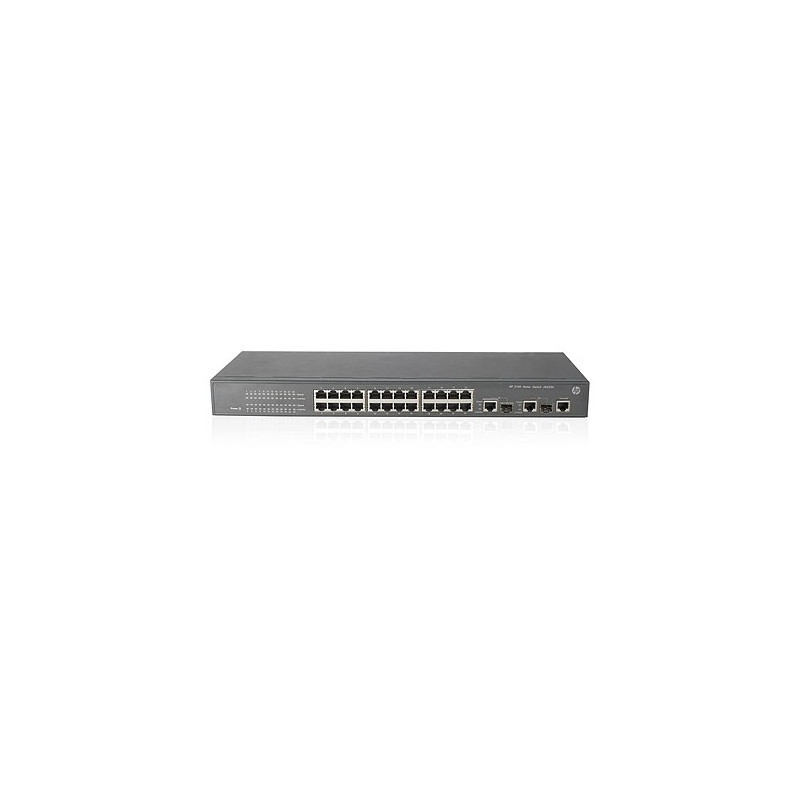

HP 3100-24 v2 SI Switch

Hewlett Packard Enterprise 3100-24 v2 SI

3100-8 v2 SI - 24x 10/100, 2x 10/100/1000
Out of Stock
Reference: JG223A

Require Project Pricing?

Click here to email your parts list and we will send you a quote
The HP 3100 SI Switch Series is a low-cost Fast Ethernet switch line that enables organizations to do more with less. Stackable and affordable, this series comprises intelligent, network-manageable Layer 2 Fast Ethernet switches that offer high performance, high port density, and easy installation. These switches provide 10/100 Mbps downlinks and Gigabit Ethernet uplinks, and offer link aggregation that expands bandwidth and enhances connection reliability. In enterprise networks, they can serve as access devices for 100 Mbps-to-desktop applications. In metropolitan area networks (MANs) or industry networks, they can connect end users or aggregate low-end switches through 100 Mbps electrical interfaces in the

downlink direction, converging at an IP switching center or a large-capacity Layer 3 switch in the uplink direction via a GbE interface or link aggregation.

Data sheet

10G support
No
AC input voltage
100-240 V
Auto MDI/MDI-X
Yes
Basic switching RJ-45 Ethernet ports quantity
24
Basic switching RJ-45 Ethernet ports type
Fast Ethernet (10/100)
Colour of product
Grey
Depth
160 mm
Dimensions (WxDxH)
439.9 x 160 x 43.7 mm
Electromagnetic compatibility
FCC part 15 Class A; VCCI Class A; EN 55022 Class A; CISPR 22 Class A; ICES-003 Class A; ANSI C63.4 2003; ETSI EN 300 386 V1.3.3; AS/NZS CISPR22 Class A; EN 61000-3-2; EN 61000-3-3; EN 61000-4-2; EN 61000-4-3; EN 61000-4-4; EN 61000-4-5; EN 61000-4-6; EN
Flash memory
96 MB
Heat dissipation
44 BTU/h
Height
43.7 mm
I/O ports
2 dual-personality 10/100/1000 ports(IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T), Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only; 24 autosensing 10/100 ports(IEEE 802.3 Type 10BASE-T, IEEE 802.3u
Input voltage
–36 - –72 V
Internal memory
≈ 5,000 Cat 8 with plots; ≈ 12,000 Cat 6A with plots
Latency
100 Mb Latency: < 6 µs; 1000 Mb Latency: < 5 µs
MAC address table
96000 entries
Management platform
IMC - Intelligent Management Center; command-line interface; Web browser; SNMP Manager
Memory type
B SDRAM
Mounting
Mounts in an EIA-standard 19 in. telco rack or equipment cabinet (hardware included)
Networking standards
IEEE 802.3,IEEE 802.3ab,IEEE 802.3u
Number of VLANs
4094
Operating relative humidity (H-H)
10 - 90 %
Operating relative humidity range
10 to 90 %
Operating temperature (T-T)
8 - 35 °C
Operating temperature range (T-T)
0 - 45 °C
Packet buffer memory
0.3 MB
Power consumption (typical)
9W
Safety
UL 60950-1; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1; EN 60950-1/A11; FDA 21 CFR Subchapter J; ROHS Compliance
Size
439.9 mm (17.32 ")
Source data-sheet
Icecat.biz
Storage relative humidity (H-H)
5 - 95 %
Storage relative humidity range
5 to 95 %
Storage temperature (T-T)
8 - 85 °C
Storage temperature range (T-T)
-40 - 70 °C
Switch layer
L7
Switching capacity
993.6 Gbps
Throughput
6.6 Mpps
Weight
3000 g
Width
439.9 mm

Specific References

EAN13
0886111407415
