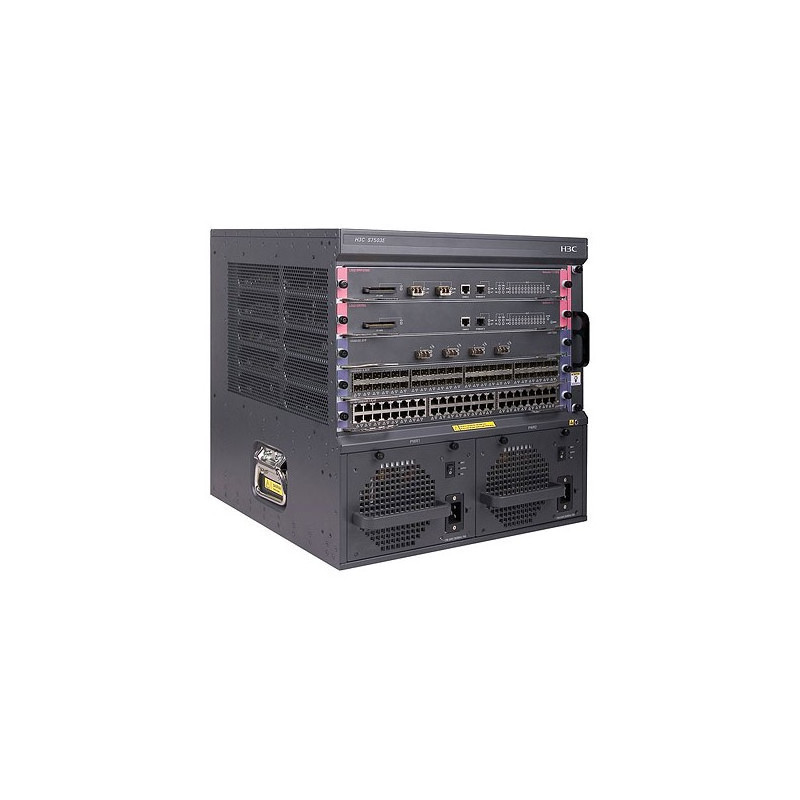

HP 7503 Switch Chassis

Hewlett Packard Enterprise 7503 Switch Chassis

HP 7503 Switch Chassis
Out of Stock
Reference: JD240B

Require Project Pricing?

Click here to email your parts list and we will send you a quote
The HP 7500 Switch Series is a versatile modular switch designed to meet the evolving needs of integrated services networks. It can be deployed at the enterprise LAN core, aggregation layer and wiring closet edge and offers 40GbE connectivity, cost-effective wire-speed 10GbE ports, high density PoE/PoE+, advanced functionality with service modules and BYOD-ready features with the wired-WLAN module.



With HP Intelligent Resilient Fabric (IRF) technology, the HP 7500 Switch Series can be virtualized across four chassis with a single management interface—enabling flatter, more agile networks.

Data sheet

Depth
420 mm
Dimensions (WxDxH)
436 x 420 x 441 mm
Electromagnetic compatibility
VCCI Class A; EN 55022 Class A; ICES-003 Class A; ANSI C63.4 2003; AS/NZS CISPR 22 Class A; EN 61000-3-2:2006; EN 61000-3-3:1995 +A1:2001+A2:2005; EMC Directive 2004/108/EC; FCC (CFR 47, Part 15) Class A
Fan trays
1 x JD212A
Form factor
10U height
Height
441 mm
I/O ports
(3) I/O module slots\nSupports a maximum of 28 10GbE ports or 144 autosensing 10/100/1000 ports or 144 SFP ports or 12 40GbE ports, or a combination
Input current
16/50 A
Input frequency
50 / 60 Hz
Input voltage
100-120/200-240 VAC; -48 to -60 VDC (depending on power supply chosen)
MAC address table
512000 entries
Management platform
IMC - Intelligent Management Center
Mounting
Mounts in an EIA-standard 19 in. rack or other equipment cabinet (hardware included); horizontal surface mounting only
Operating temperature range (T-T)
0 - 45 °C
Output power
1400 W
Power requirements
Based on a common power supply of 1400 W (AC/DC)
Rack capacity
9U
Safety
UL 60950-1; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1; EN 60950-1/A11
Size
436.1 mm (17.17 ")
Source data-sheet
Icecat.biz
Storage relative humidity range
5 to 95 %
Storage temperature range (T-T)
-40 - 70 °C
Switching capacity
1920 Gbit/s
Throughput
966
Weight
66680 g
Width
436 mm

Specific References

EAN13
0885631250228
