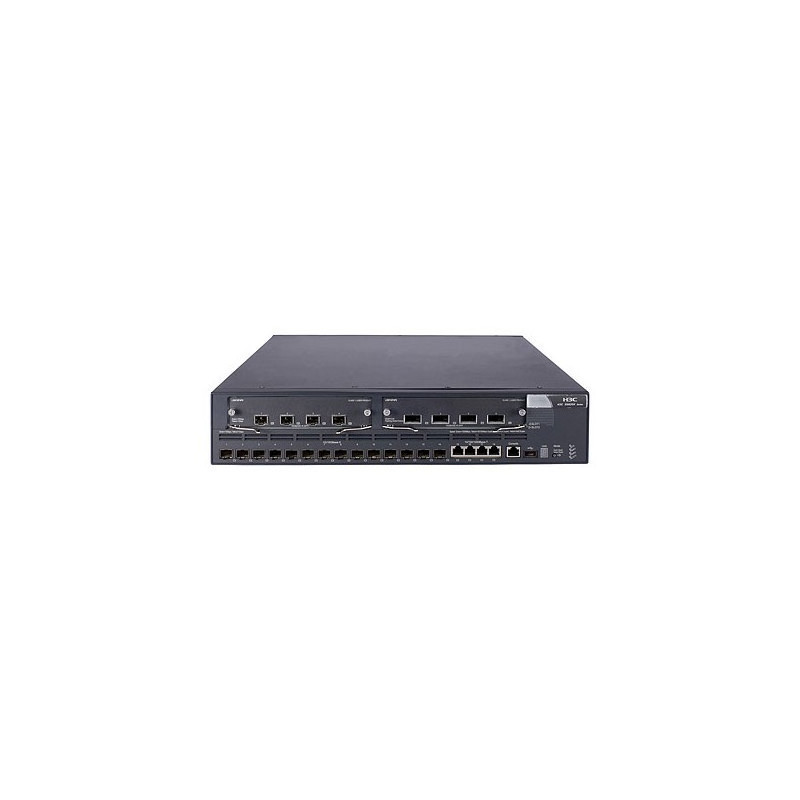

Hewlett Packard Enterprise 5820-14XG-SFP+
14x SFP+ 10-GbE, 2x extended module slots, 1x open module slot, 4x RJ-45 10/100/1000 (IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T), 488 Gbps, 363 Mpps, 15.1 kg, Grey
The HP A5820 Switch Series features advanced flex-chassis switches that deliver a unique combination of unmatched 10 Gigabit Ethernet, Fibre Channel over Ethernet (FCoE) connectivity, high-availability architecture, full Layer 2/3 dual-stack IPv4/v6, and line-rate, low-latency performance on all ports. Extensible embedded application capabilities enable these switches to integrate services into the network, consolidating devices and appliances to simplify deployment and reduce power consumption and rack space. Extremely versatile, the switches can be used in high-performance, high-density building or department cores as part of a consolidated network; for data center top-of-rack server access; or as high-performance Layer 3, 10-GbE aggregation switches in campus and data center networks.
- For enterprise core, distribution, data center.
- Up to 24 ports 10 GbE per unit / 194 per stack.
- Flex chassis—modular resiliency.
- Cut-through switching for very low latency.
- Hot-swappable I/O, power supplies, and fans.
- For enterprise core, distribution, data center.
- Up to 24 ports 10 GbE per unit / 194 per stack.
- Flex chassis—modular resiliency.
- Cut-through switching for very low latency.
- Hot-swappable I/O, power supplies, and fans.
Data sheet
- 10G support
- Yes
- AC input frequency
- 50/60 Hz
- AC input voltage
- 100-240 V
- Auto MDI/MDI-X
- Yes
- Basic switching RJ-45 Ethernet ports quantity
- 5
- Basic switching RJ-45 Ethernet ports type
- Gigabit Ethernet (10/100/1000)
- Colour of product
- Grey
- Copper ethernet cabling technology
- 1000BASE-T,100BASE-TX,10BASE-T
- Depth
- 439.9 mm
- DHCP client
- Yes
- DHCP server
- Yes
- Dimensions (WxDxH)
- 439.9 x 467 x 86.1 mm
- Fiber optic connector
- SFP+
- Flash memory
- 96 MB
- Heat dissipation
- 836 BTU/h
- Height
- 86.1 mm
- Internal memory
- ≈ 5,000 Cat 8 with plots; ≈ 12,000 Cat 6A with plots
- Latency
- 2.02 µs
- MAC address table
- 96000 entries
- Management protocols
- SNMPv1/v2c/v3, LLDP, RMON, sFlow, OSPF, OSPFv3, BFD, VRRP, PIM-SSM, PIM-DM, PIM-SM, ECMP
- Maximum data transfer rate
- 96 Gbit/s
- Memory type
- SDRAM
- Networking standards
- IEEE 802.1ab,IEEE 802.1ag,IEEE 802.1D,IEEE 802.1p,IEEE 802.1Q,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3ae,IEEE 802.3ah,IEEE 802.3u,IEEE 802.3x
- Number of VLANs
- 4094
- Operating relative humidity (H-H)
- 10 - 90 %
- Operating relative humidity range
- 10 - 90 %
- Operating temperature (T-T)
- 8 - 35 °C
- Operating temperature range (T-T)
- 0 - 45 °C
- Power consumption (typical)
- 300 W
- Power over Ethernet (PoE) support
- No
- Safety
- UL, EN, IEC, CAN/CSA, FDA, ROHS
- Security algorithms
- 802.1x RADIUS,SSH-2,SSL/TLS
- Security algorithms supported
- 802.1x RADIUS, SSH-2, SSL/TLS
- Source data-sheet
- Icecat.biz
- Supported data transfer rates
- x1 115.2 Kbits/sec., x2 230.4 Kbits/sec., x4 460.9 Kbits/sec
- Switch layer
- L7
- Switching capacity
- 488 Gbit/s
- Throughput
- 363 Mpps
- Weight
- 15100 g
- Width
- 467 mm
Specific References
- EAN13
- 0885631166246
14x SFP+ 10-GbE, 2x extended module slots, 1x open module slot, 4x RJ-45 10/100/1000 (IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T), 488 Gbps, 363 Mpps, 15.1 kg, Grey
