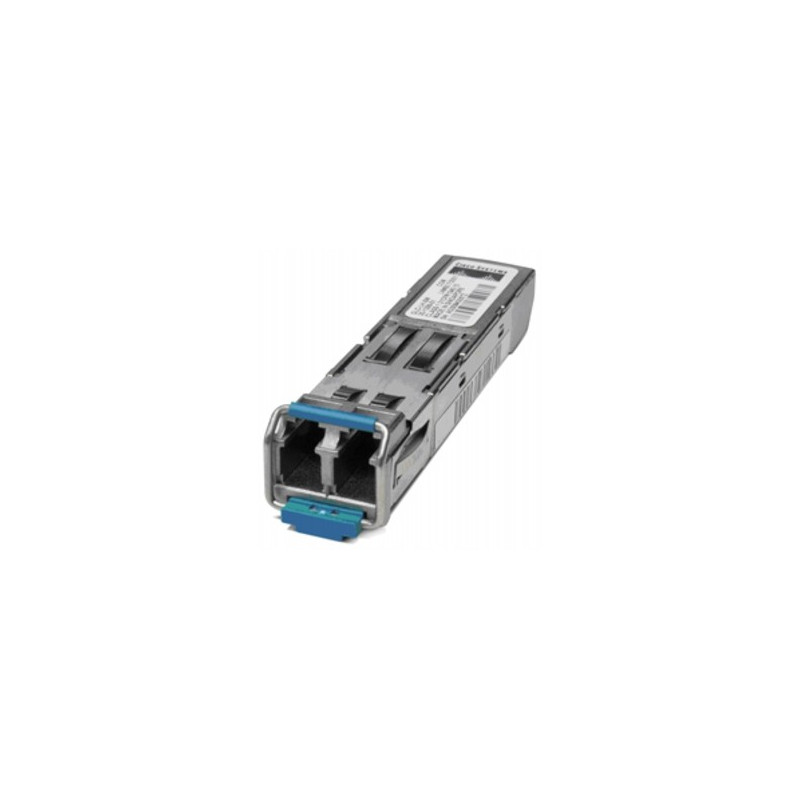

Cisco DWDM SFP
1000BASE-DWDM 1554.94 nm SFP (100-GHz ITU grid)
The Cisco® Dense Wavelength-Division Multiplexing (DWDM) Small Form Factor Pluggable (SFP) module allow enterprise companies and service providers to provide scalable and easy-to-deploy Gigabit Ethernet or Fibre Channel services in their networks.
Main features of the Cisco DWDM SFP include:
- Support for International Telecommunication Union (ITU) 100-GHz wavelength grid
- Match for wavelength plan of Cisco 100-GHz ONS product family
- Fixed-wavelength SFP, with 40 different SFP models
- Hot-swappable input/output device that plugs into Gigabit Ethernet SFP ports or slots of a Cisco switch or router, linking the port with the network
Main features of the Cisco DWDM SFP include:
- Support for International Telecommunication Union (ITU) 100-GHz wavelength grid
- Match for wavelength plan of Cisco 100-GHz ONS product family
- Fixed-wavelength SFP, with 40 different SFP models
- Hot-swappable input/output device that plugs into Gigabit Ethernet SFP ports or slots of a Cisco switch or router, linking the port with the network
Data sheet
- Cabling technology
- 1000BASE-X
- Compliance industry standards
- IEEE 802.3z
- Connectivity technology
- Wired
- Connector(s)
- LC/PC
- Data transfer rate (max)
- 2000 Mbit/s
- Dimensions (WxDxH)
- 13.4 x 56.5 x 8.5 mm
- Form factor
- SFP
- Operating temperature (T-T)
- 8 - 35 °C
- Operating temperature range (T-T)
- 0 - 70 °C
- Power requirements
- 300mA, 3.3V
- Safety
- Laser Class I 21CFR1040 LN#50 7/2001, Laser Class I IEC 60825-1
- Source data-sheet
- Icecat.biz
- Storage temperature (T-T)
- 8 - 85 °C
- Storage temperature range (T-T)
- -40 - 85 °C
- Wavelength
- 1554.94 nm
- Weight
- 75 g
Specific References
- EAN13
- 0882658136306
1000BASE-DWDM 1554.94 nm SFP (100-GHz ITU grid)
