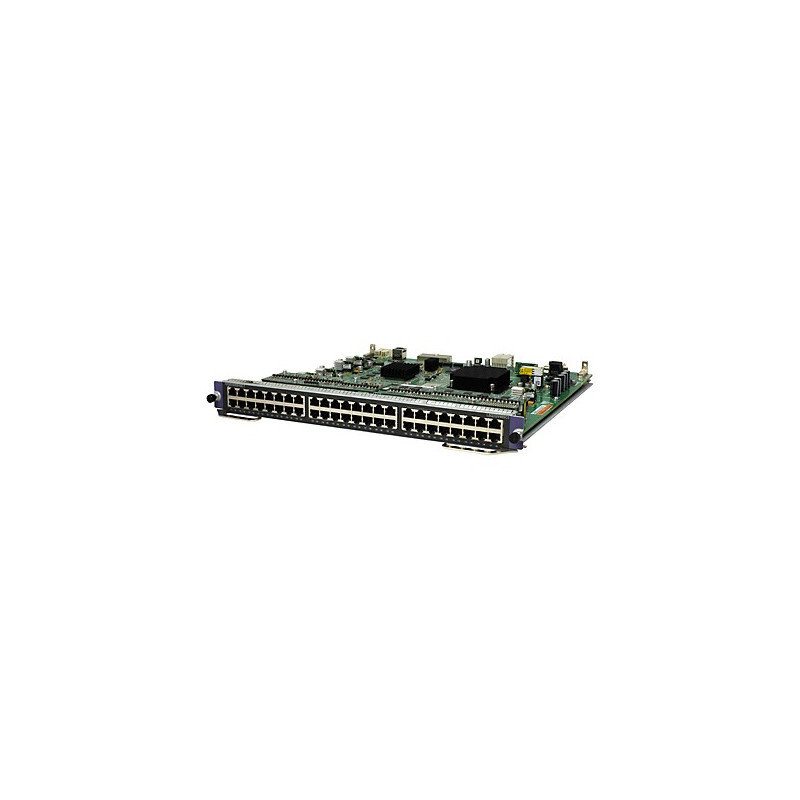

HP 7500 48-port 1000BASE-T PoE+ SC Module

Hewlett Packard Enterprise 7500 48-port 1000BASE-T PoE+ SC Module

HP 7500 48-port 1000BASE-T PoE+ SC Module
Out of Stock
Reference: JG663A

Require Project Pricing?

Click here to email your parts list and we will send you a quote
JG663A is an SC version of the current SD JD229B 48 port PoE+ line card for the 7500 series modular switch. This SC version has the same PoE+ functionality and same 48 ports as JD229B, however, cost savings in TCAM were implemented reducing typically unused table sizes to lower the price of the module to offer a lower entry point than the competition.

Data sheet

Compatibility
HP 7500
Connectivity LEDs
Yes
Copper ethernet cabling technology
1000BASE-T
Dimensions (WxDxH)
377 x 355 x 40 mm
Ethernet LAN (RJ-45) ports
48
I/O ports
48 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+)
Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only
Networking standards
IEEE 802.3,IEEE 802.3ab,IEEE 802.3u
Size
376.9 mm (14.84 ")
Source data-sheet
Icecat.biz
Weight
3310 g

Specific References

EAN13
0887758219362
