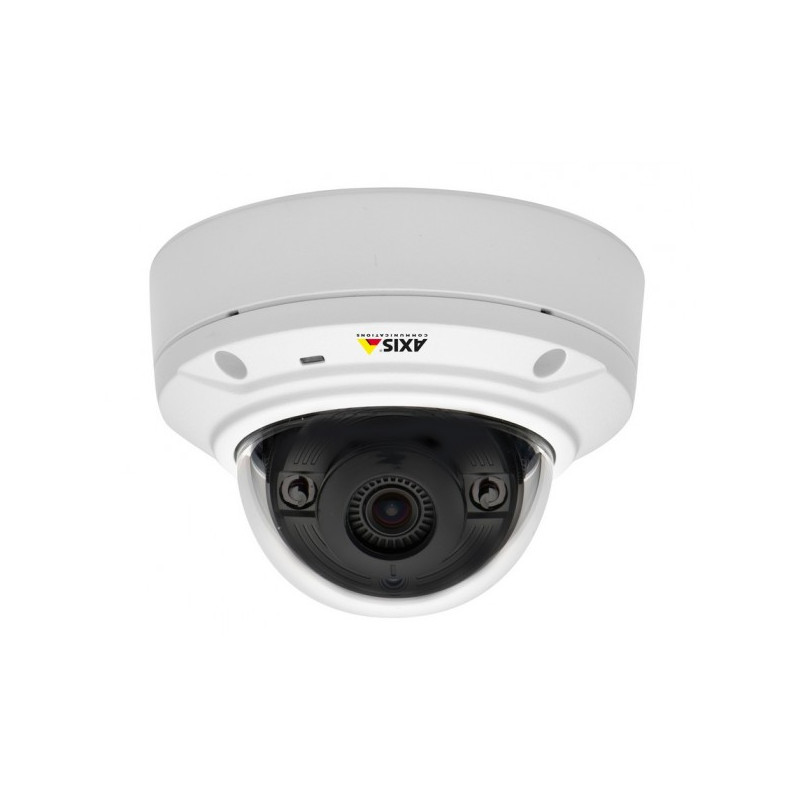

Axis M3024-LVE
M3024-LVE Network Camera, CMOS, HDTV, 720p, 1MP
Outdoor-ready, day/night fixed mini domes with HDTV performance.
- Compact, vandal-resistant, outdoor-ready design
- 1 MP / HDTV 720p
- Day/night functionality and built-in IR illumination
- Input/output ports for external devices
- Power over Ethernet
- Edge storage
Outdoor-ready, day & night
AXIS M3024-LVE Network Camera, which is part of the AXIS M30 Series, is an affordably priced, vandal-resistant HDTV fixed mini dome for excellent video during day and night-time conditions in indoor or outdoor environments. It is ideal for installation inside or outside the entrance of a hotel, boutique, restaurant, office or school.
AXIS M3024-LVE provides 1 MP and HDTV 720p video. The outdoor-ready camera has IP66 and NEMA 4X ratings for protection against dust, rain and snow. The camera’s IK 10 rating ensures resistance against impacts.
It also has day/night functionality with an automatically removable infrared-cut filter. When the filter is removed, the camera takes advantage of invisible near-infrared light from available light sources to produce good quality black and white images. AXIS M3024-LVE enables surveillance even in complete darkness when using its built-in high-efficiency long-life IR (infrared) LEDs.
Easy to install
The fixed dome can be mounted on walls, ceilings or pendants. It has a 3-axis camera angle adjustment for flexible installation. The camera also supports Axis’ Corridor Format for vertically oriented video streams that maximize coverage of areas such as along walls or aisles. The camera comes focused at delivery.
AXIS M3024-LVE has input/output ports for connection to external devices. It also supports AXIS Camera Application Platform for intelligent video applications. The camera offers a convenient video management solution with its built-in memory card slot for edge storage and support for software such as the complimentary AXIS Camera Companion.
The camera comes with a 2 m (6.6 ft.) network cable and is powered using Power over Ethernet (IEEE 802.3af).
- Compact, vandal-resistant, outdoor-ready design
- 1 MP / HDTV 720p
- Day/night functionality and built-in IR illumination
- Input/output ports for external devices
- Power over Ethernet
- Edge storage
Outdoor-ready, day & night
AXIS M3024-LVE Network Camera, which is part of the AXIS M30 Series, is an affordably priced, vandal-resistant HDTV fixed mini dome for excellent video during day and night-time conditions in indoor or outdoor environments. It is ideal for installation inside or outside the entrance of a hotel, boutique, restaurant, office or school.
AXIS M3024-LVE provides 1 MP and HDTV 720p video. The outdoor-ready camera has IP66 and NEMA 4X ratings for protection against dust, rain and snow. The camera’s IK 10 rating ensures resistance against impacts.
It also has day/night functionality with an automatically removable infrared-cut filter. When the filter is removed, the camera takes advantage of invisible near-infrared light from available light sources to produce good quality black and white images. AXIS M3024-LVE enables surveillance even in complete darkness when using its built-in high-efficiency long-life IR (infrared) LEDs.
Easy to install
The fixed dome can be mounted on walls, ceilings or pendants. It has a 3-axis camera angle adjustment for flexible installation. The camera also supports Axis’ Corridor Format for vertically oriented video streams that maximize coverage of areas such as along walls or aisles. The camera comes focused at delivery.
AXIS M3024-LVE has input/output ports for connection to external devices. It also supports AXIS Camera Application Platform for intelligent video applications. The camera offers a convenient video management solution with its built-in memory card slot for edge storage and support for software such as the complimentary AXIS Camera Companion.
The camera comes with a 2 m (6.6 ft.) network cable and is powered using Power over Ethernet (IEEE 802.3af).
Data sheet
- Cabling technology
- 10/100Base-T(X)
- Camera shutter speed
- 1/8000 - 1/6 s
- Camera shutter type
- Electronic
- Colour of product
- White
- Compatible memory cards
- microSD (TransFlash), microSDHC, microSDXC
- Connectivity technology
- Wired
- Depth
- 132 mm
- Ethernet LAN (RJ-45) ports quantity
- 1
- Ethernet LAN connection
- Yes
- F-number (relative aperture)
- 2
- Flash memory
- 96 MB
- Frame rate
- 9 fps
- Housing material
- Aluminium, Polycarbonate
- Interface
- XFP
- Internal memory
- ≈ 5,000 Cat 8 with plots; ≈ 12,000 Cat 6A with plots
- Lens diameter
- 2.8 mm
- Maximum resolution
- 1280 x 800 pixels
- Megapixel
- 1 MP
- Minimum illumination
- 0.16 lx
- Mounting type
- Ceiling
- Operating relative humidity range
- 10 - 100 %
- Operating temperature range (T-T)
- -30 - 50 °C
- Optical sensor size
- 1/0.157 mm (1/4 ")
- Pan range
- 175 - 175 °
- Placement supported
- indoor & outdoor
- Power over Ethernet (PoE) support
- Yes
- Rotation
- 175 °
- Sensor type
- Ultrasonic sensor
- Source data-sheet
- Icecat.biz
- Supported graphics resolutions
- 320 x 240, 1280 x 800 (WXGA)
- Supported network protocols
- IPv4/v6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMPv1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS
- Supported video modes
- 720p
- Tilt angle
- 0 - 65 °
- Type
- IP
- Video formats supported
- H.264, M-JPEG
- Viewing angle, horizontal
- 77 °
- Weight
- VFD and cable: 36.6 lb; Pole (each): 50.7 oz; Base: 66.1 lb (VFD and cable: 1.29 lb; Pole (each): 1.79 oz; Base: 2.33 lb)
- White balance
- Sodium lamp,Auto,Fluorescent,Halogen,Manual
- Wireless LAN connection
- No
Specific References
- EAN13
- 7331021003798
M3024-LVE Network Camera, CMOS, HDTV, 720p, 1MP
