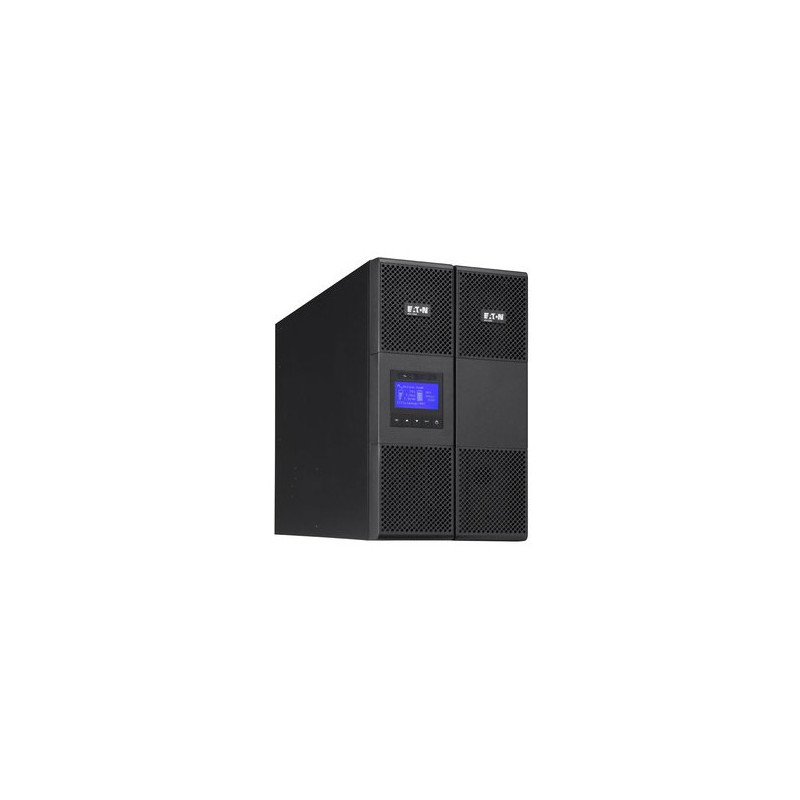

Eaton 9SX 8000i

Eaton 9SX 8000i

200 - 250V, 8000VA, 7200W, Hardwired
Out of Stock
Reference: 9SX8KI

Require Project Pricing?

Click here to email your parts list and we will send you a quote
The Eaton 9SX UPS offers high availability, flexibility and advanced protection for infrastructure, industrial, medical, IT, networking, storage and telecom. Delivering on-line double conversion protection in versatile Rack/Tower format with up to 95% efficiency.

Data sheet

Certification
IEC/EN 62040 -2 , FCC Class A, IEC/EN 62040-3
CE, CB (TUV), UL
Colour of product
Black
Crest factor
3:1
Depth
700 mm
Display
LCD
Efficiency
98 %
Height
990mm
Input current THD
5 %
Input operation voltage (max)
276 V
Input operation voltage (min)
176 V
Noise level
97.4 dB
Nominal input voltage
200-250 V
Nominal output voltage
200-250 V
Operating temperature range (T-T)
0 - 40 °C
Output operation voltage (max)
250 V
Output power
7200 W
Output power capacity (VA)
8000 VA
Power supply input frequency
50/60 Hz
Safety
IEC/EN 62040-1, UL 1778, CSA 22.2
Source data-sheet
Icecat.biz
Weight
84 kg
Width
993 mm

Specific References

EAN13
0743172040206
