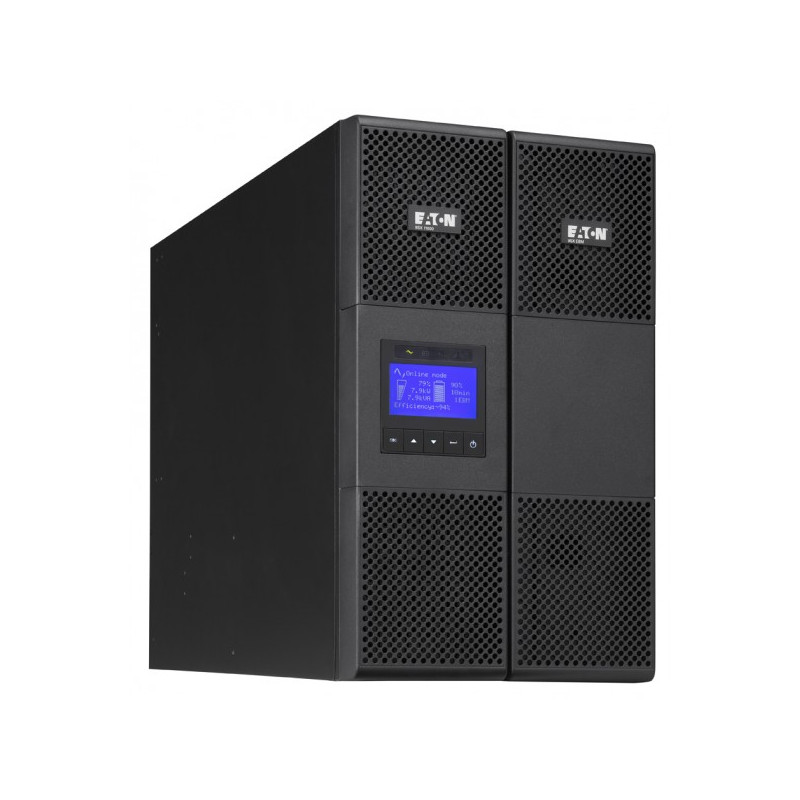

Eaton 9SX11Ki
11 kVA, 10 kW, LCD, Terminal, USB, RS-232, 50 dB, 86 kg
The Eaton 9SX UPS offers high availability, flexibility and advanced protection for infrastructure, industrial, medical, IT, networking, storage and telecom. Delivering on-line double conversion protection in versatile Rack/Tower format with up to 95% efficiency.
Data sheet
- AC outlet types
- Terminal
- Colour of product
- Black
- Crest factor
- 3:1
- Depth
- 700 mm
- Display
- LCD
- Efficiency
- 98 %
- Energy Star certified
- Yes
- Height
- 990mm
- Input current THD
- 5 %
- Input operation voltage (max)
- 276 V
- Maximum current
- 150 A
- Noise level
- 50 dB
- Operating temperature range (T-T)
- 0 - 40 °C
- Output operation voltage (max)
- 250 V
- Output power
- DC 9V
- Output power capacity (VA)
- 11000 VA
- Power plug
- Type G (BS 1363)
- Power supply input frequency
- 40/70 Hz
- Rack mounting
- 6U
- Safety
- EN 62040-1, UL 1778, CSA 22.2
- Source data-sheet
- Icecat.biz
- Typical backup time at half load
- 9 min
- Weight
- 86 kg
- Width
- 993 mm
Specific References
- EAN13
- 0743172040213
11 kVA, 10 kW, LCD, Terminal, USB, RS-232, 50 dB, 86 kg
